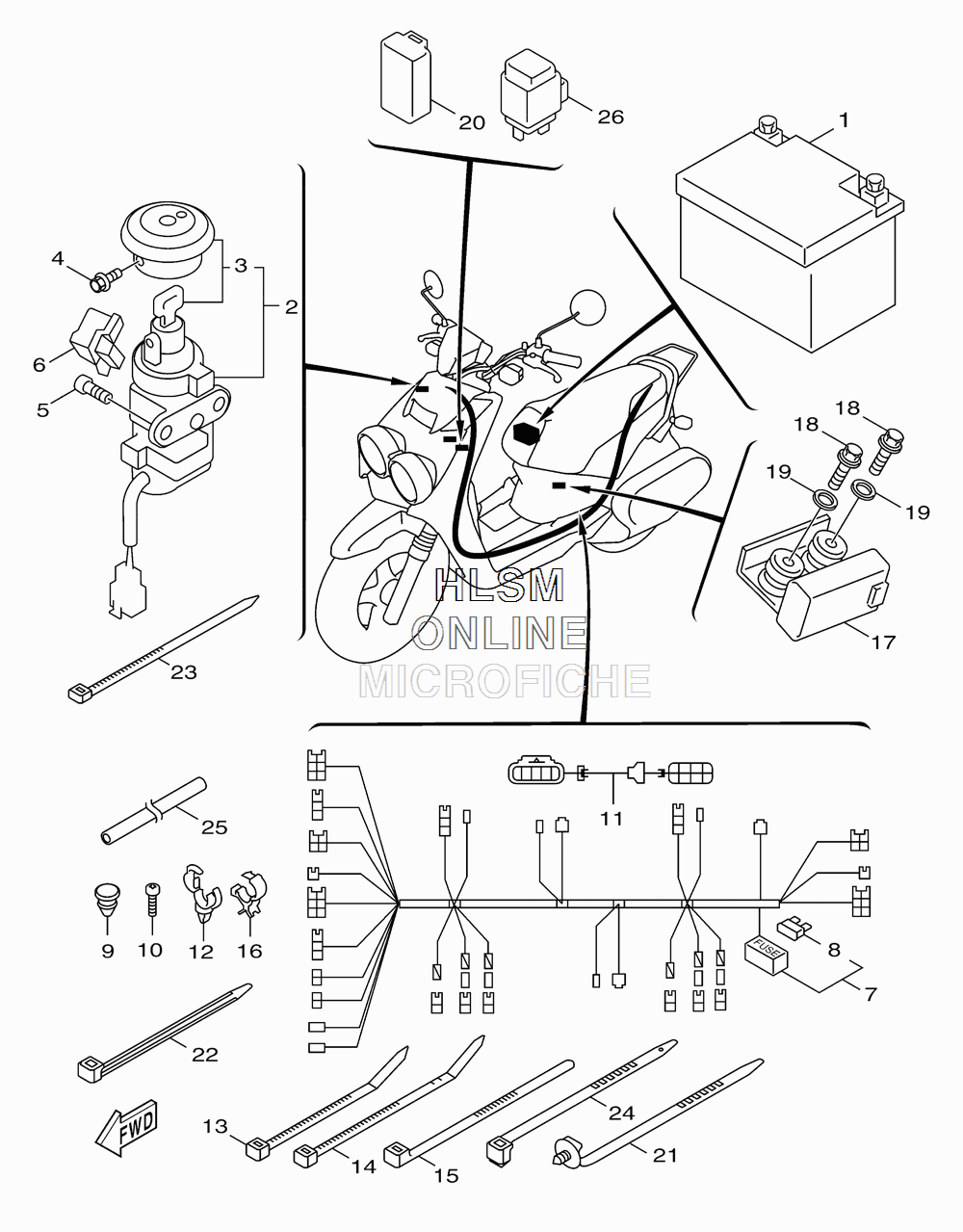

ELECTRICAL 2 для Yamaha ZUMA 50 - 2012 года выпуска`
-
№АртикулНазвание
-
15PJ-H2100-00-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
21CD-WH203-00-00 KEY SETKEY SET
-
21CD-H2501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
31CD-WH250-00-A0 ..MAIN SW. IMMOBILIZER KIT..MAIN SW. IMMOBILIZER KIT
-
31CD-WH250-00-C0 ..MAIN SW. IMMOBILIZER KIT..MAIN SW. IMMOBILIZER KIT
-
490119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590155-06803-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
63D0-H2155-00-00 BANDBAND
-
71CD-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
85ML-H2151-10-00 ..FUSE (15A)..FUSE (15A)
-
95SU-H2119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1095807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
113B3-H2509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1290464-20803-00 CLAMPCLAMP
-
1390464-26800-00 CLAMPCLAMP
-
1490464-40801-00 CLAMPCLAMP
-
1590464-20809-00 CLAMPCLAMP
-
1690464-25801-00 CLAMPCLAMP
-
1732P-H2576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
1890110-04802-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990201-047A2-00 WASHER, PLATEWASHER, PLATE
-
204HC-81950-00-00 RELAY ASSYRELAY ASSY
-
2190464-30802-00 CLAMPCLAMP
-
2290465-13152-00 CLAMPCLAMP
-
2390464-60800-00 CLAMPCLAMP
-
2490464-12812-00 CLAMPCLAMP
-
251CD-F117G-10-00 PROTECTORPROTECTOR
-
263B3-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
