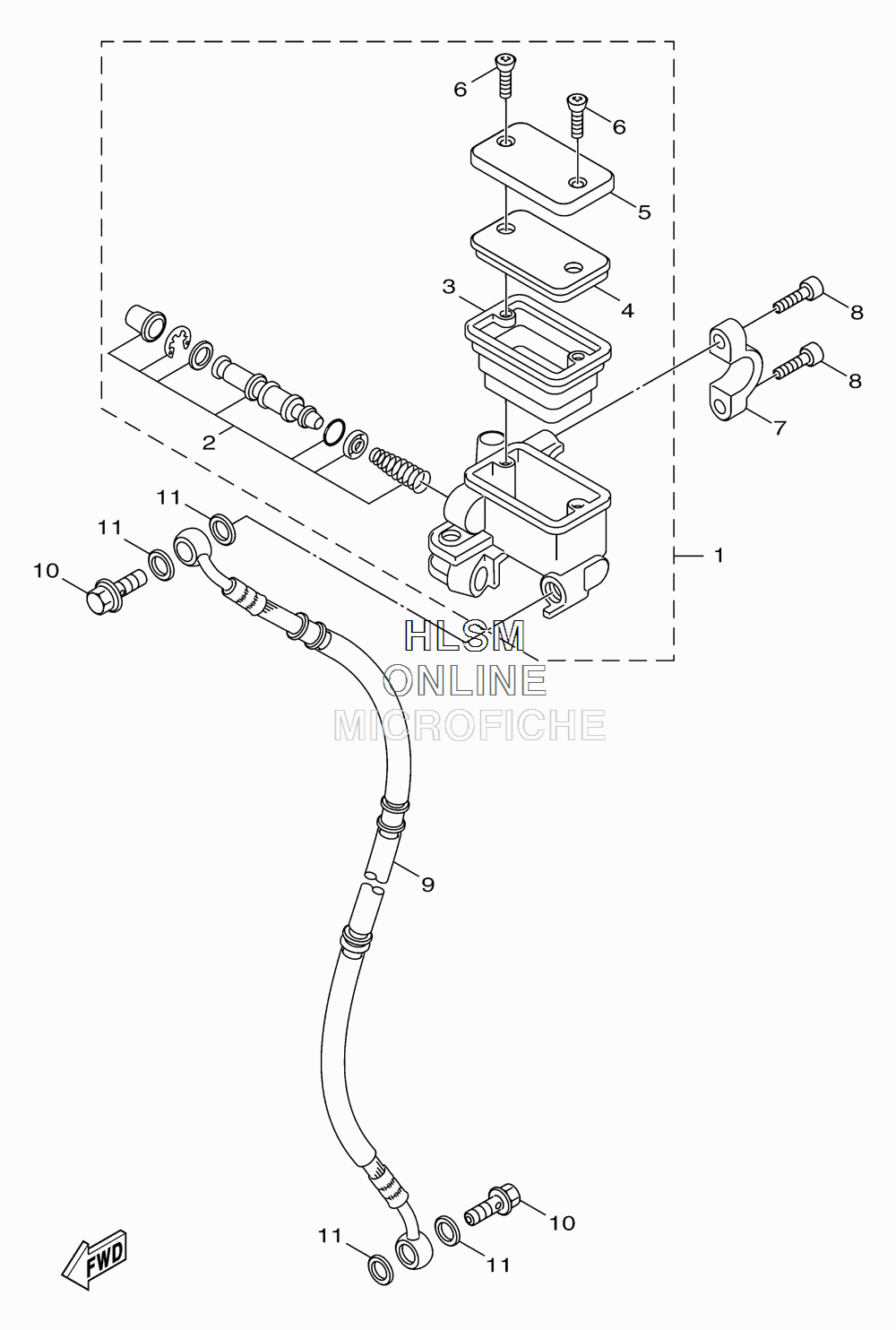

BRAKE - FRONT MASTER CYLINDER для Yamaha ZUMA 50 - 2012 года выпуска`
-
№АртикулНазвание
-
132S-F5870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25S9-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35S9-F5854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45S9-F585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
55S9-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
698707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
75S9-F5867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
891317-06025-00 BOLTBOLT
-
91CD-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1090401-10805-00 BOLT, UNIONBOLT, UNION
-
1190201-10118-00 WASHER, PLATEWASHER, PLATE
