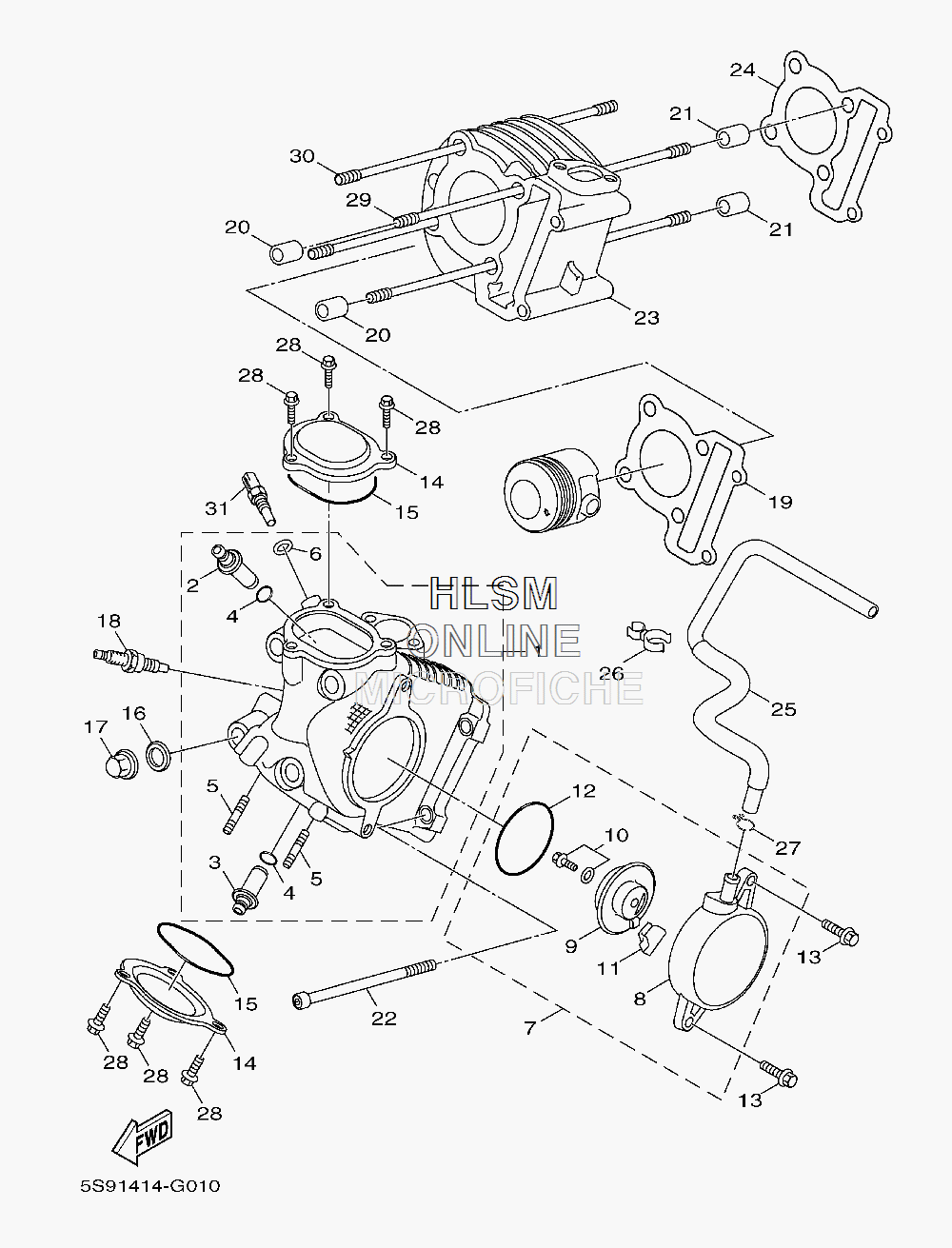

CYLINDER W/ HEAD ASSY. для Yamaha ZUMA 125 - 2011 года выпуска`
-
№АртикулНазвание
-
14P9-E1102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25ML-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
35ML-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
493210-09802-00 ...O-RING...O-RING
-
590116-08806-00 ...BOLT, STUD...BOLT, STUD
-
690430-10802-00 ...GASKET...GASKET
-
75ML-E1160-00-00 BREATHER ASSYBREATHER ASSY
-
85ML-E1185-00-00 ...COVER, CYLINDER HEAD SIDE 3...COVER, CYLINDER HEAD SIDE 3
-
95ML-E1165-00-00 ...PLATE, BREATHER...PLATE, BREATHER
-
1097527-06512-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
114CW-E1155-00-00 ...SEAL, LABYRINTH...SEAL, LABYRINTH
-
1293210-71462-00 ...O-RING...O-RING
-
1395027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
145ML-E1186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1593210-54008-00 O-RINGO-RING
-
1690201-08609-00 WASHER, PLATEWASHER, PLATE
-
1790176-08816-00 NUT, CROWNNUT, CROWN
-
1894700-00881-00 PLUG, SPARK (DENSO U22ESR-N)PLUG, SPARK (DENSO U22ESR-N)
-
195ML-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2091810-14807-00 PIN, DOWELPIN, DOWEL
-
2191810-14807-00 PIN, DOWELPIN, DOWEL
-
2291317-06100-00 BOLTBOLT
-
235ML-E1311-20-00 CYLINDER 1CYLINDER 1
-
245ML-E1351-20-00 GASKET, CYLINDERGASKET, CYLINDER
-
255S9-E4987-00-00 HOSEHOSE
-
2690464-13800-00 CLAMPCLAMP
-
2790467-13042-00 CLIPCLIP
-
2895027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
295ML-E1391-00-00 BOLT, STUD 1BOLT, STUD 1
-
305ML-E1392-00-00 BOLT, STUD 2BOLT, STUD 2
-
314P9-83591-00-00 THERMO UNITTHERMO UNIT
