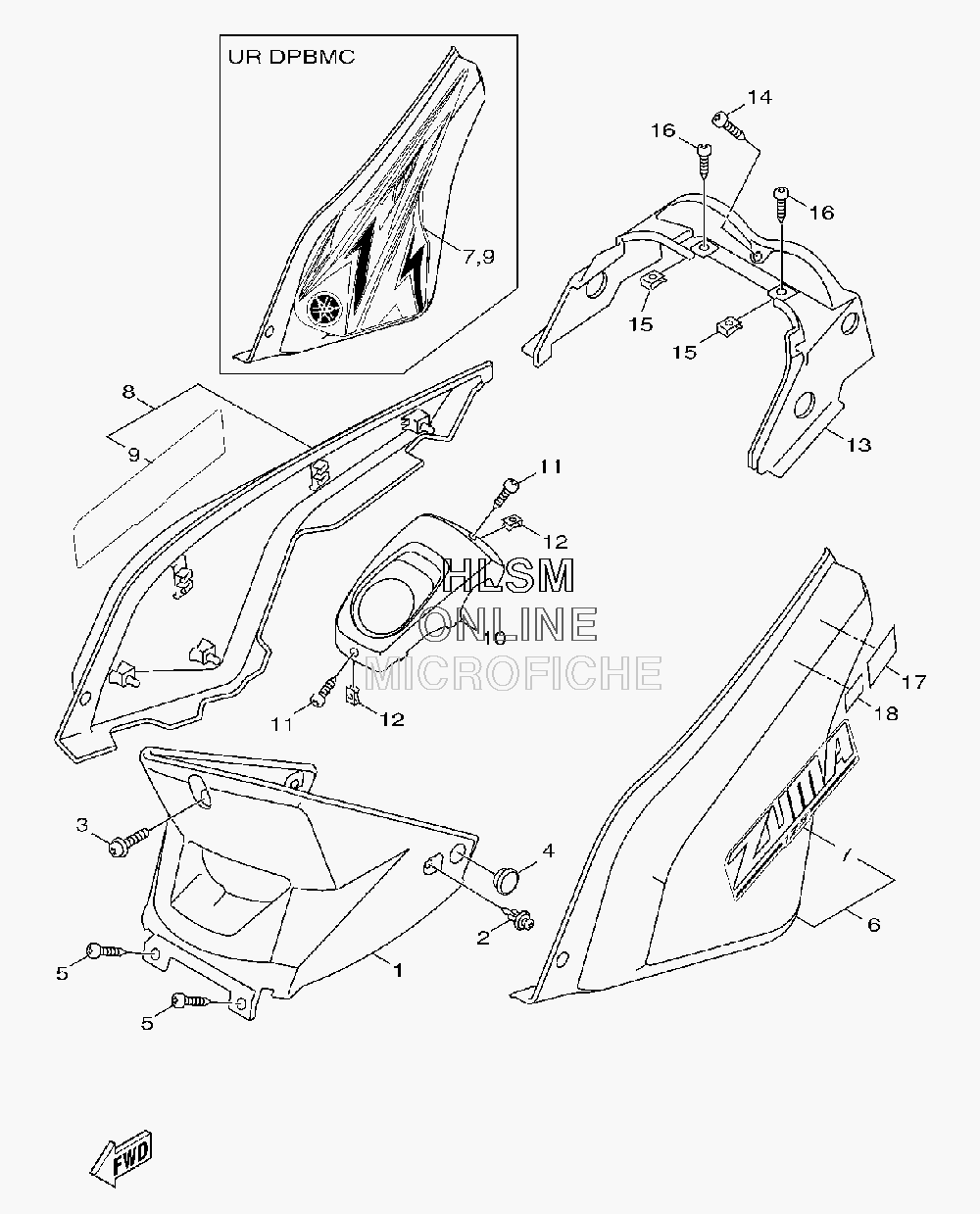

SIDE COVER для Yamaha ZUMA 125 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5S9-F1711-00-00 COVER, SIDE 1
    COVER, SIDE 1
  • 2
    90269-06806-00 RIVET
    RIVET
  • 3
    90159-06812-00 SCREW, WITH WASHER
    SCREW, WITH WASHER
  • 4
    4DH-F6199-01-00 PLUG, BLIND
    PLUG, BLIND
  • 5
    97707-50012-00 SCREW, TRUSS HEAD TAPPING
    SCREW, TRUSS HEAD TAPPING
  • 6
    5S9-XF172-20-P4 COVER, SIDE 2 USE FOR COLOR DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
    COVER, SIDE 2 USE FOR COLOR DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
  • 6
    5S9-XF172-20-P0 COVER, SIDE 2 USE FOR COLOR BLACK METALLIC X ( SMX / 0903 )
    COVER, SIDE 2 USE FOR COLOR BLACK METALLIC X ( SMX / 0903 )
  • 6
    5S9-XF172-20-AL COVER, SIDE 2 USE FOR COLOR CALM YELLOW ( CMY / 00AL )
    COVER, SIDE 2 USE FOR COLOR CALM YELLOW ( CMY / 00AL )
  • 7
    32S-F1782-00-00 EMBLEM 2 USE FOR COLOR DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
    EMBLEM 2 USE FOR COLOR DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
  • 7
    32S-F1781-10-00 EMBLEM 1 USE FOR COLOR CALM YELLOW ( CMY / 00AL )
    EMBLEM 1 USE FOR COLOR CALM YELLOW ( CMY / 00AL )
  • 7
    32S-F1781-00-00 EMBLEM 1 USE FOR COLOR BLACK METALLIC X ( SMX / 0903 )
    EMBLEM 1 USE FOR COLOR BLACK METALLIC X ( SMX / 0903 )
  • 8
    5S9-XF173-20-P4 COVER, SIDE 3 USE FOR COLOR DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
    COVER, SIDE 3 USE FOR COLOR DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
  • 8
    5S9-XF173-20-AL COVER, SIDE 3 USE FOR COLOR CALM YELLOW ( CMY / 00AL )
    COVER, SIDE 3 USE FOR COLOR CALM YELLOW ( CMY / 00AL )
  • 8
    5S9-XF173-20-P0 COVER, SIDE 3 USE FOR COLOR BLACK METALLIC X ( SMX / 0903 )
    COVER, SIDE 3 USE FOR COLOR BLACK METALLIC X ( SMX / 0903 )
  • 9
    32S-F1781-00-00 EMBLEM 1 USE FOR COLOR BLACK METALLIC X ( SMX / 0903 )
    EMBLEM 1 USE FOR COLOR BLACK METALLIC X ( SMX / 0903 )
  • 9
    32S-F1781-10-00 EMBLEM 1 USE FOR COLOR CALM YELLOW ( CMY / 00AL )
    EMBLEM 1 USE FOR COLOR CALM YELLOW ( CMY / 00AL )
  • 9
    32S-F1783-00-00 EMBLEM 3 USE FOR COLOR DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
    EMBLEM 3 USE FOR COLOR DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
  • 10
    5S9-F1741-00-00 COVER, SIDE 4
    COVER, SIDE 4
  • 11
    97707-50012-00 SCREW, TRUSS HEAD TAPPING
    SCREW, TRUSS HEAD TAPPING
  • 12
    90183-05807-00 NUT, SPRING
    NUT, SPRING
  • 13
    5S9-F171E-00-00 COVER, SIDE 5
    COVER, SIDE 5
  • 14
    97707-50012-00 SCREW, TRUSS HEAD TAPPING
    SCREW, TRUSS HEAD TAPPING
  • 15
    90183-05807-00 NUT, SPRING
    NUT, SPRING
  • 16
    90169-05800-00 TAPPING SCREW
    TAPPING SCREW
  • 17
    5PJ-F118K-00-00 LABEL, CAUTION
    LABEL, CAUTION
  • 18
    4JK-F8446-01-00 LABEL, CAUTION
    LABEL, CAUTION
