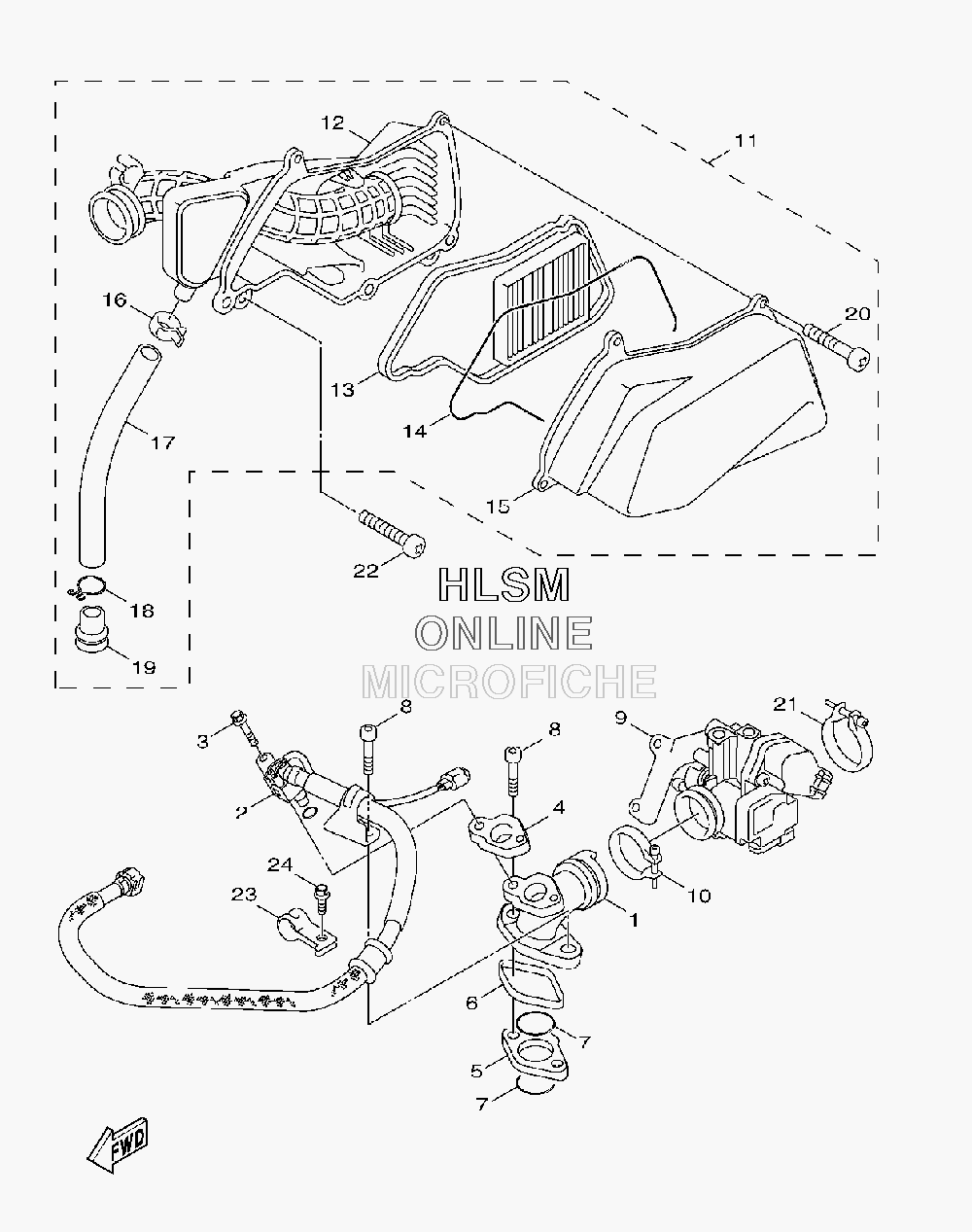

AIR CLEANER ASSY. W/ INTAKE для Yamaha ZUMA 125 - 2009 года выпуска`
-
№АртикулНазвание
-
14P9-E3585-00-00 MANIFOLDMANIFOLD
-
25S9-13930-02-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
395817-06030-00 BOLT, FLANGEBOLT, FLANGE
-
44P9-E3556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
54P9-E3595-01-00 JOINTJOINT
-
64P9-E4239-00-00 SEALSEAL
-
793210-29574-00 O-RINGO-RING
-
890110-06256-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95S9-E3750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
104P9-E3575-00-00 BANDBAND
-
115S9-E4410-00-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
125S9-WE441-00-00 AIR CLEANER CASE COMP.AIR CLEANER CASE COMP.
-
135S9-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
145S9-E4467-00-00 SEALSEAL
-
155S9-WE442-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1690467-13813-00 CLIPCLIP
-
175S9-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
1890467-12052-00 CLIPCLIP
-
1990338-11820-00 PLUGPLUG
-
2097607-06220-00 SCREW,WITH WASHERSCREW,WITH WASHER
-
214C7-E3575-00-00 BANDBAND
-
2297607-06230-00 SCREW,WITH WASHERSCREW,WITH WASHER
-
235S9-F419A-00-00 HOLDERHOLDER
-
2495807-06012-00 BOLT, FLANGEBOLT, FLANGE
