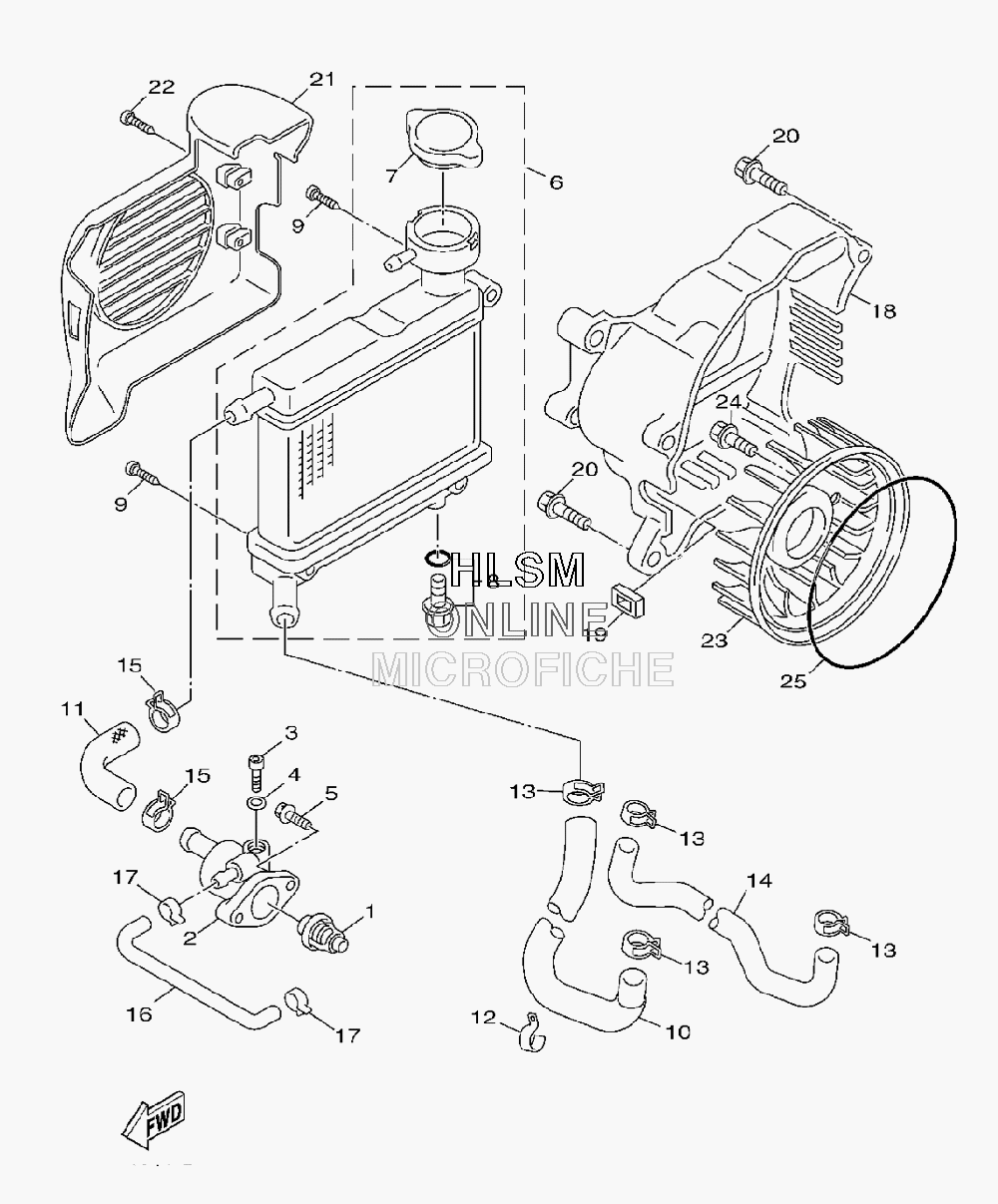

RADIATOR W/ HOSES для Yamaha C3 - 2009 года выпуска`
-
№АртикулНазвание
-
14BA-12411-00-00 THERMOSTATTHERMOSTAT
-
25ST-E2413-20-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
395027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
490430-06166-00 GASKETGASKET
-
595027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65ST-E240A-02-00 RADIATOR ASSYRADIATOR ASSY
-
75ST-E2590-00-00 CAP, RADIATORCAP, RADIATOR
-
85VU-12478-00-00 COCK, DRAINCOCK, DRAIN
-
997707-60530-00 SCREW, TRUSSSCREW, TRUSS
-
103B3-E2482-00-00 PIPE 2PIPE 2
-
113B3-E2483-00-00 PIPE 3PIPE 3
-
1290462-10806-00 CLAMPCLAMP
-
1390467-20810-00 CLIPCLIP
-
145ST-E2477-00-00 PIPE 7PIPE 7
-
1590467-20810-00 CLIPCLIP
-
165ST-E243F-00-00 HOSE, 3HOSE, 3
-
1790467-09809-00 CLIPCLIP
-
183B3-E2621-00-00 CASE, FANCASE, FAN
-
193B3-E2465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
2095027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
213B3-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
2297707-60530-00 SCREW, TRUSSSCREW, TRUSS
-
235ST-E2611-01-00 FANFAN
-
2495027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2593210-76801-00 O-RINGO-RING
