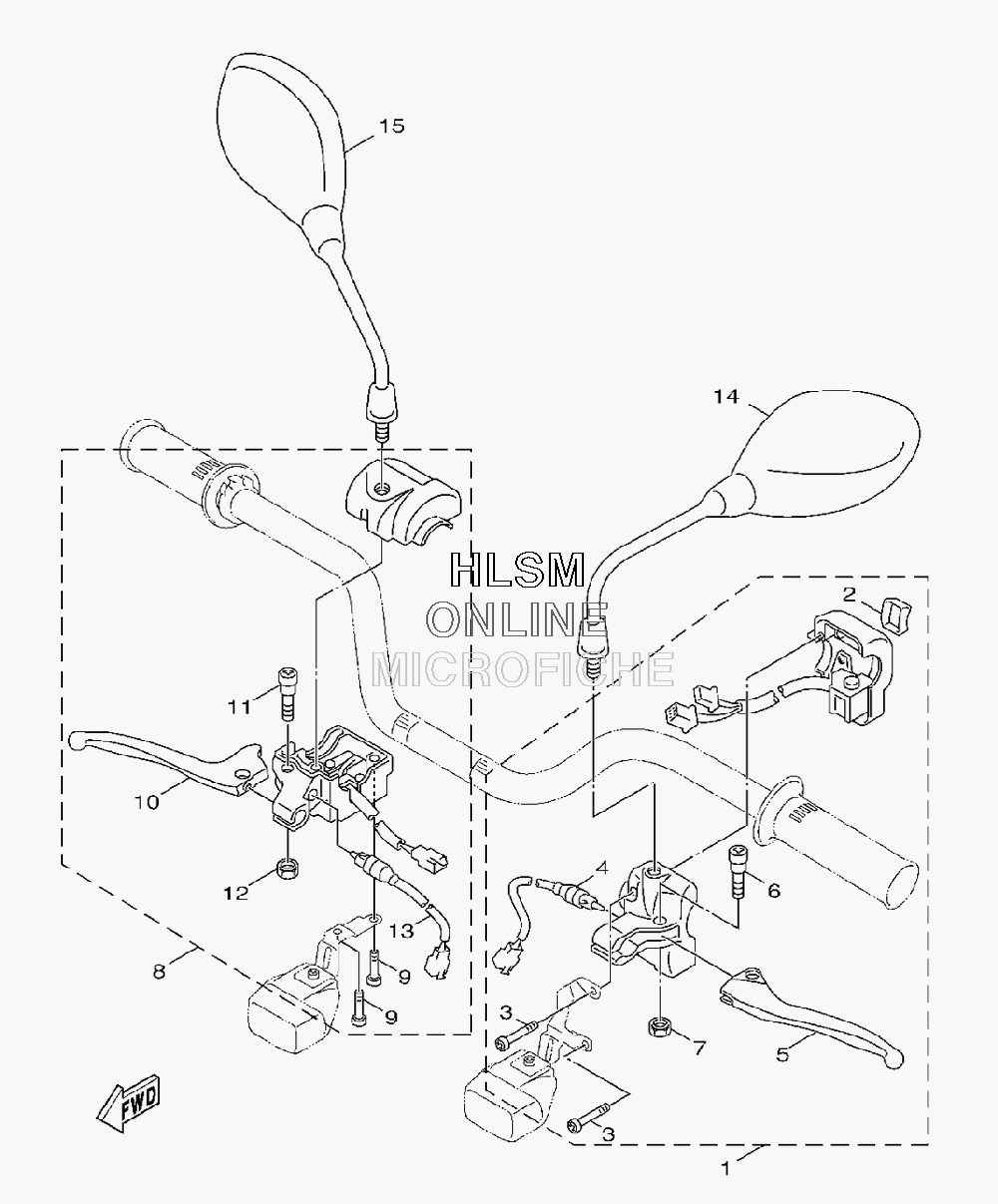

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha C3 - 2009 года выпуска`
-
№АртикулНазвание
-
13B3-H2910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
25SU-H357H-00-00 KNOBKNOB
-
398507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
43B3-H3980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
53B3-H3912-01-00 LEVER 1LEVER 1
-
63XG-H3915-00-00 SCREW, LEVER FITTINGSCREW, LEVER FITTING
-
795707-05300-00 NUT, FLANGENUT, FLANGE
-
83B3-H2920-10-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
998507-05045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
103B3-H3922-01-00 LEVER 2LEVER 2
-
113XG-H3915-00-00 SCREW, LEVER FITTINGSCREW, LEVER FITTING
-
1295707-05300-00 NUT, FLANGENUT, FLANGE
-
133B3-H3980-10-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
145SU-F6280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
155SU-F6290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
