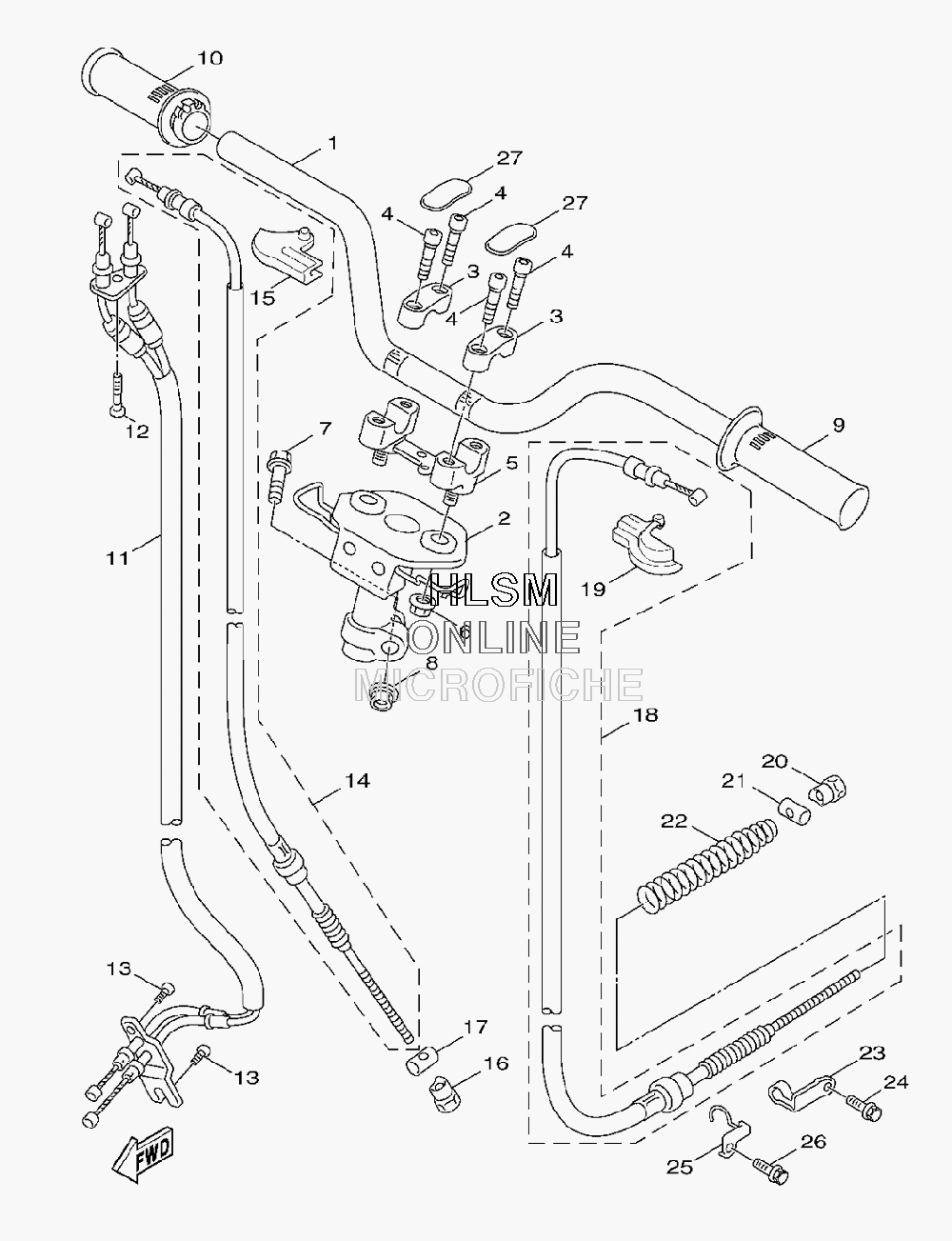

HANDLEBAR W/ CABLES - MIRRORS для Yamaha C3 - 2009 года выпуска`
-
№АртикулНазвание
-
13B3-F6111-00-00 HANDLEBARHANDLEBAR
-
23B3-F3461-00-00 BRACKET, HANDLEBRACKET, HANDLE
-
31MH-F3441-01-P0 HOLDER, HANDLE UPPER (LNMC)HOLDER, HANDLE UPPER (LNMC)
-
491317-08025-00 BOLTBOLT
-
55FH-F3442-10-P0 HOLDER, HANDLE LOWER (LNMC)HOLDER, HANDLE LOWER (LNMC)
-
690185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790105-10036-00 BOLT, FLANGEBOLT, FLANGE
-
890185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
95SU-F6241-00-00 GRIP (YB)GRIP (YB)
-
105ST-F6240-00-00 GRIP ASSY (YB)GRIP ASSY (YB)
-
113B3-F6301-10-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
1298507-05010-00 SCREW, PAN HEAD (3SX)SCREW, PAN HEAD (3SX)
-
1392012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1415P-F6341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
153YJ-2637A-00-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
1690179-06411-00 NUTNUT
-
1790249-12806-00 PINPIN
-
1815P-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
193YJ-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
2090179-06411-00 NUTNUT
-
2190249-12806-00 PINPIN
-
2290501-16804-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
233B3-F639F-00-00 HOLDER 2HOLDER 2
-
2495807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
253B3-F637G-01-00 HOLDER, WIREHOLDER, WIRE
-
2695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
271MH-F3469-00-00 CAP, BOLTCAP, BOLT
