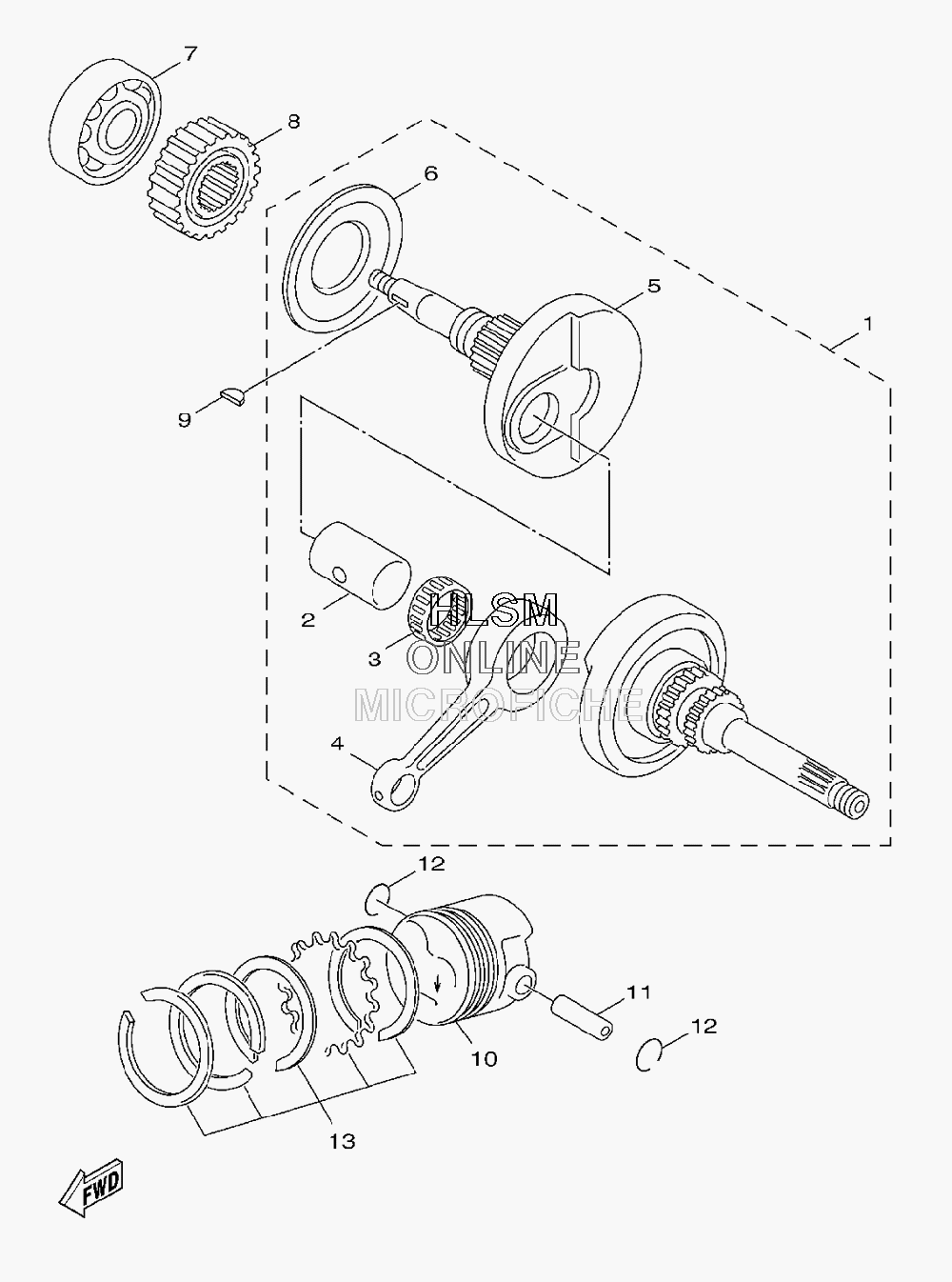

CRANKSHAFT W/ PISTON ASSY. для Yamaha C3 - 2009 года выпуска`
-
№АртикулНазвание
-
15ST-E1400-10-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25ST-E1681-00-00 PIN, CRANK 1PIN, CRANK 1
-
393310-420X0-00 BEARINGBEARING
-
45ST-E1651-10-00 ROD, CONNECTINGROD, CONNECTING
-
55ST-E1422-10-00 CRANK 2CRANK 2
-
65ST-E3452-00-00 COVER, ROTOR FILTERCOVER, ROTOR FILTER
-
793306-205XP-00 BEARINGBEARING
-
85ST-E3324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
990280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
103B3-E1631-00-00 PISTON (STD)PISTON (STD)
-
115ST-E1633-00-00 PIN, PISTONPIN, PISTON
-
1293450-10823-00 CIRCLIPCIRCLIP
-
135ST-E1603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
