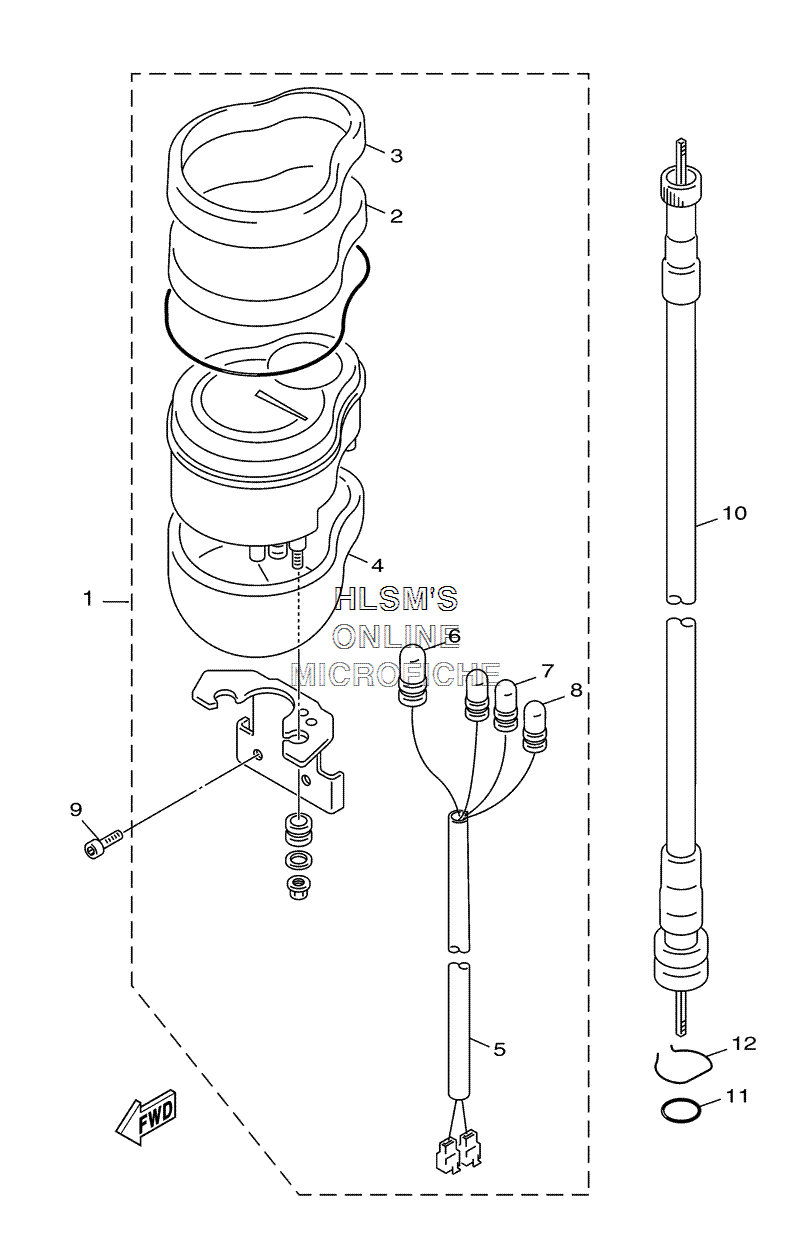

INSTRUMENT PANEL для Yamaha VINO 50 - 2006 года выпуска`
-
№АртикулНазвание
-
13D1-H3510-00-00 SPEEDOMETER ASSY.SPEEDOMETER ASSY.
-
25ST-H353K-00-00 ...GLASS PLATE...GLASS PLATE
-
35ST-H353E-10-00 ...CASE, METER UPPER...CASE, METER UPPER
-
45ST-H3507-10-00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
53D1-H3509-00-00 ...SOCKET CORD ASSY....SOCKET CORD ASSY.
-
63GF-H3517-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
74CW-H3517-00-00 ...BULB (14V-3W)...BULB (14V-3W)
-
85JS-H3517-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
991317-06012-00 BOLTBOLT
-
105ST-H3550-00-00 SPEEDOMETER CABLE ASSY.SPEEDOMETER CABLE ASSY.
-
1193210-14805-00 O-RINGO-RING
-
124X6-F5137-00-00 RING, STOPRING, STOP
