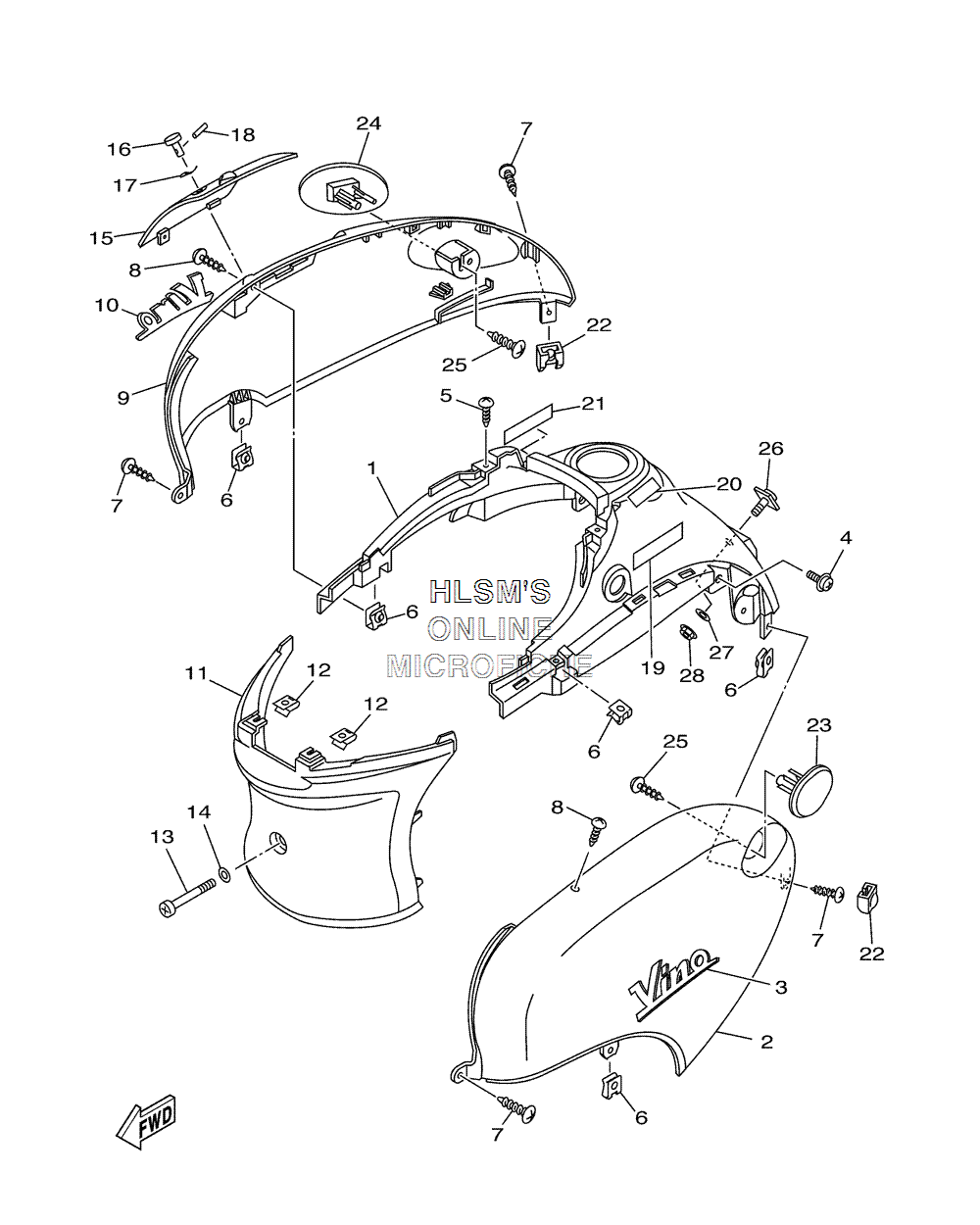

SIDE COVER для Yamaha VINO CLASSIC - 2005 года выпуска`
-
№АртикулНазвание
-
15LY-21711-01-00 COVER, SIDE 1 (BEG FOR SMX)COVER, SIDE 1 (BEG FOR SMX)
-
15LY-21711-21-00 COVER, SIDE 1 (RW FOR PPBM3)COVER, SIDE 1 (RW FOR PPBM3)
-
15LY-21711-31-00 COVER, SIDE 1 (FOR DPBMC)COVER, SIDE 1 (FOR DPBMC)
-
25AU-21721-00-PA COVER, SIDE 2 (PPBM3)COVER, SIDE 2 (PPBM3)
-
25AU-21721-00-PD COVER, SIDE 2 (SMX)COVER, SIDE 2 (SMX)
-
25AU-21721-00-PE COVER, SIDE 2 (DPBMC)COVER, SIDE 2 (DPBMC)
-
35AU-2173B-40-00 EMBLEM 3DEMBLEM 3D
-
490159-06078-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
590163-05006-00 SCREW, TAPPINGSCREW, TAPPING
-
690183-05042-00 NUT, SPRINGNUT, SPRING
-
797707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
897707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
95AU-21731-02-PA COVER, SIDE 3 (PPBM3)COVER, SIDE 3 (PPBM3)
-
95AU-21731-02-PD COVER, SIDE 3 (SMX)COVER, SIDE 3 (SMX)
-
95AU-21731-02-PE COVER, SIDE 3 (DPBMC)COVER, SIDE 3 (DPBMC)
-
105AU-2174B-40-00 EMBLEM 3DEMBLEM 3D
-
115AU-21741-00-00 COVER, SIDE 4 (BEG FOR SMX)COVER, SIDE 4 (BEG FOR SMX)
-
115AU-21741-30-00 COVER, SIDE 4 (RW FOR PPBM3)COVER, SIDE 4 (RW FOR PPBM3)
-
115AU-21741-40-00 COVER, SIDE 4 (FOR DPBMC)COVER, SIDE 4 (FOR DPBMC)
-
1290183-05042-00 NUT, SPRINGNUT, SPRING
-
1398504-06070-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492903-06600-00 WASHER, PLATEWASHER, PLATE
-
155AU-21716-00-PA LID, SIDE COVER (PPBM3)LID, SIDE COVER (PPBM3)
-
155AU-21716-00-PD LID, SIDE COVER (SMX)LID, SIDE COVER (SMX)
-
155AU-21716-00-PE LID, SIDE COVER (DPBMC)LID, SIDE COVER (DPBMC)
-
1690249-06191-00 PINPIN
-
1790206-06090-00 WASHER, WAVEWASHER, WAVE
-
1891690-25012-00 PIN, SPRINGPIN, SPRING
-
193JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
205LY-24875-00-00 LABEL 1LABEL 1
-
215LY-21668-A0-00 LABEL, TIRELABEL, TIRE
-
225AU-21875-00-00 CAPCAP
-
235LY-2172F-00-P5 PANEL 2 (PPBM3)PANEL 2 (PPBM3)
-
235LY-2172F-00-P6 PANEL 2 (SMX)PANEL 2 (SMX)
-
235LY-2172F-00-P8 PANEL 2 (DPBMC)PANEL 2 (DPBMC)
-
245LY-2172G-00-P5 PANEL 3 (PPBM3)PANEL 3 (PPBM3)
-
245LY-2172G-00-P6 PANEL 3 (SMX)PANEL 3 (SMX)
-
245LY-2172G-00-P8 PANEL 3 (DPBMC)PANEL 3 (DPBMC)
-
2597707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
265LY-21712-00-00 BOLT, SIDE COVERBOLT, SIDE COVER
-
2790209-04008-00 WASHERWASHER
-
2895607-05200-00 NUT, U FLANGENUT, U FLANGE
