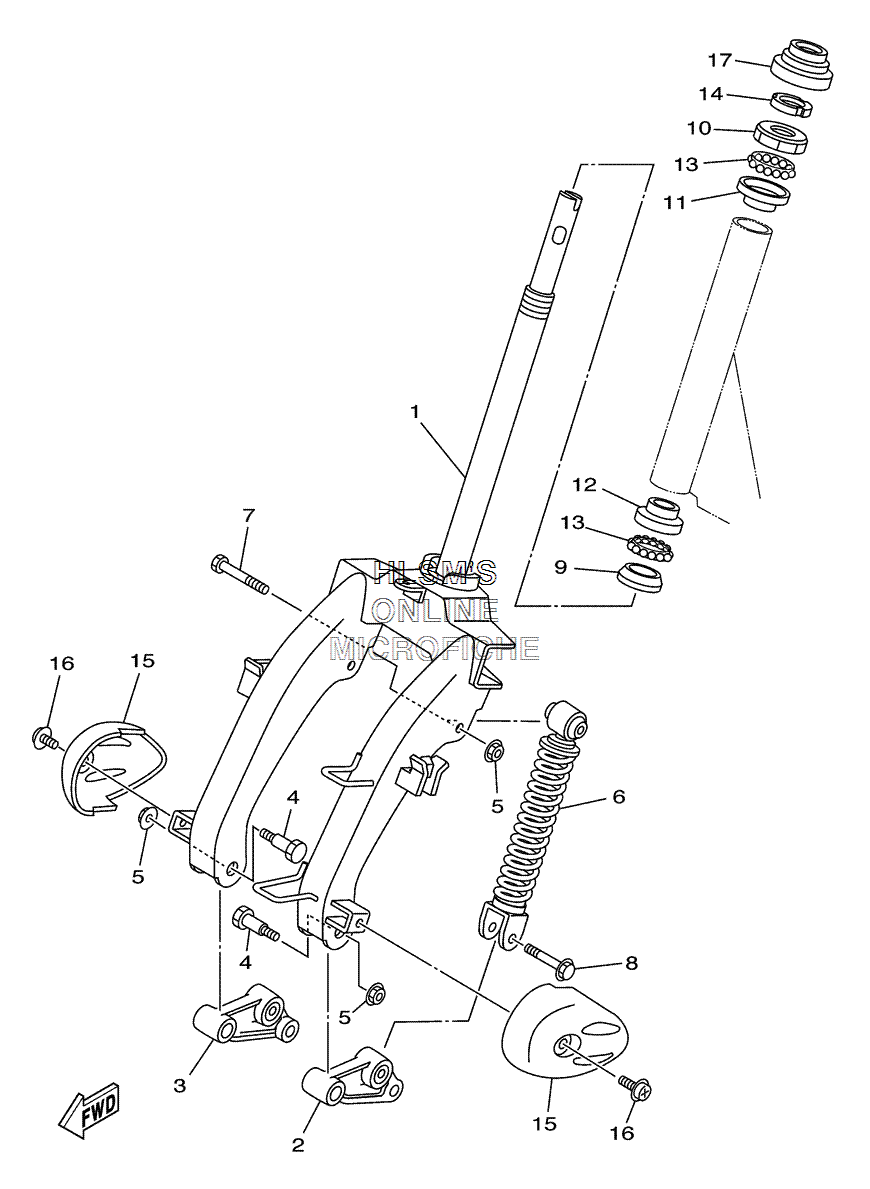

SUSPENSION - FRONT FORK для Yamaha VINO - 2004 года выпуска`
-
№АртикулНазвание
-
15LY-23340-01-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
25AU-23360-00-00 ARM ASSY. 1ARM ASSY. 1
-
35AU-23370-00-00 ARM ASSY. 2ARM ASSY. 2
-
45AU-23365-00-00 BOLT, ARM BRACKETBOLT, ARM BRACKET
-
595707-08500-00 NUT, FLANGENUT, FLANGE
-
65LY-23350-00-00 SHOCK ABSORBER ASSY.SHOCK ABSORBER ASSY.
-
75AU-23366-00-00 BOLT, UPPERBOLT, UPPER
-
890105-08121-00 BOLT, FLANGEBOLT, FLANGE
-
93YJ-23414-00-00 RACE, BALL 4RACE, BALL 4
-
103KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
112E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
122E9-23413-01-00 RACE, BALL 3RACE, BALL 3
-
1393505-32042-00 BALL 5/32BALL 5/32
-
142E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
-
155AU-23338-00-00 CAP, SIDE 1CAP, SIDE 1
-
1698904-06012-00 SCREW, BINDSCREW, BIND
-
173YJ-23415-10-00 COVER, BALL RACE 1COVER, BALL RACE 1
