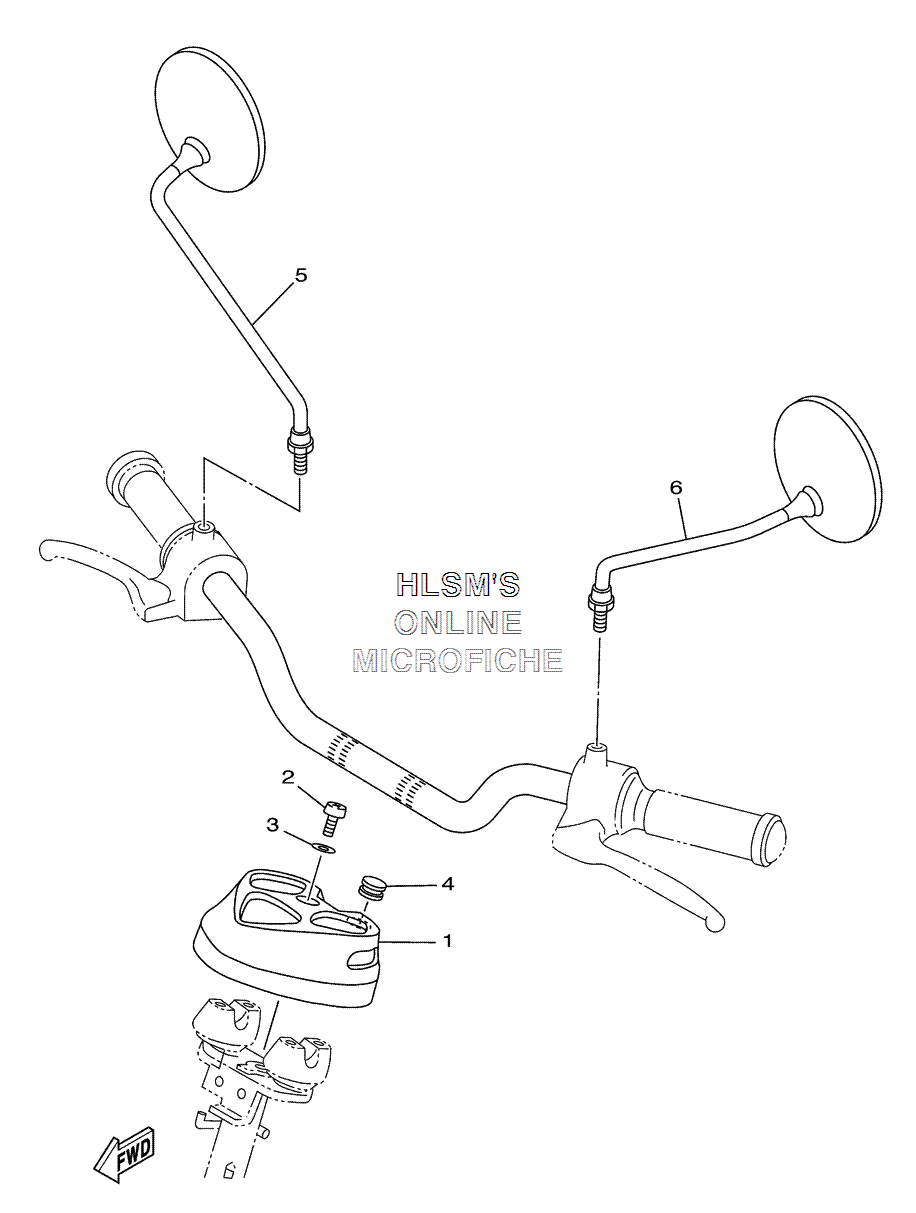

HANDLEBAR - COVER W/ MIRRORS для Yamaha VINO - 2004 года выпуска`
-
№АртикулНазвание
-
15AU-26143-00-00 COVER, HANDLEBAR UPPER 1COVER, HANDLEBAR UPPER 1
-
298504-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392903-05600-00 WASHER, PLATEWASHER, PLATE
-
490338-15202-00 PLUGPLUG
-
55AU-26290-00-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
-
65AU-26280-00-00 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
