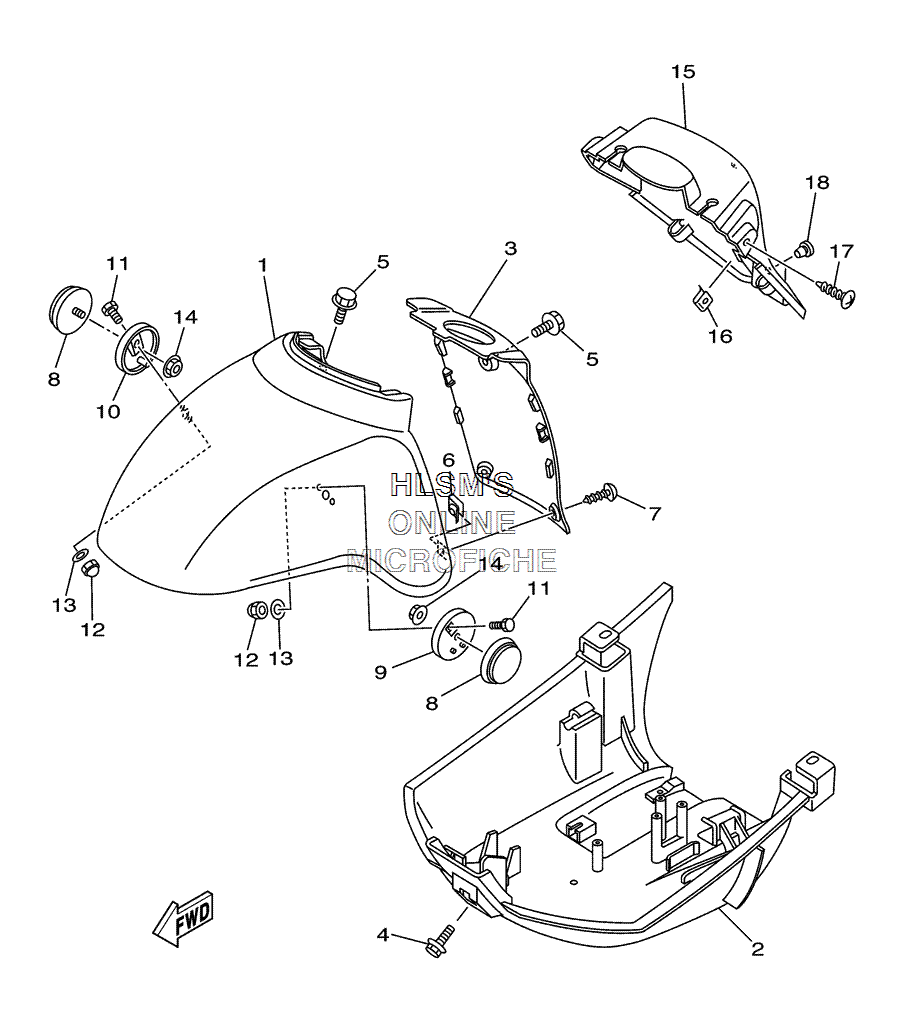

FENDER - FRONT / REAR для Yamaha VINO - 2004 года выпуска`
-
№АртикулНазвание
-
15LY-21511-00-P5 FENDER, FRONT (PPBM3)FENDER, FRONT (PPBM3)
-
15LY-21511-00-P6 FENDER, FRONT (SMX)FENDER, FRONT (SMX)
-
25AU-21552-11-00 FENDER, INNERFENDER, INNER
-
35AU-21556-00-PA FENDER, FRONT 2 (PPBM3)FENDER, FRONT 2 (PPBM3)
-
35AU-21556-00-PD FENDER, FRONT 2 (SMX)FENDER, FRONT 2 (SMX)
-
490119-06117-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-06018-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690183-05042-00 NUT, SPRINGNUT, SPRING
-
797707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
82EK-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
95LY-85115-00-00 BASE, REFLECTORBASE, REFLECTOR
-
105LY-8511E-00-00 BASE,REFLECTOR 2BASE,REFLECTOR 2
-
1197007-05014-00 BOLTBOLT
-
1290176-05059-00 NUT, CROWNNUT, CROWN
-
1392907-05200-00 WASHERWASHER
-
1495707-05500-00 NUT, FLANGENUT, FLANGE
-
155AU-21629-00-00 GUARD, MUDGUARD, MUD
-
1690183-05042-00 NUT, SPRINGNUT, SPRING
-
1797707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1890338-06018-00 PLUGPLUG
