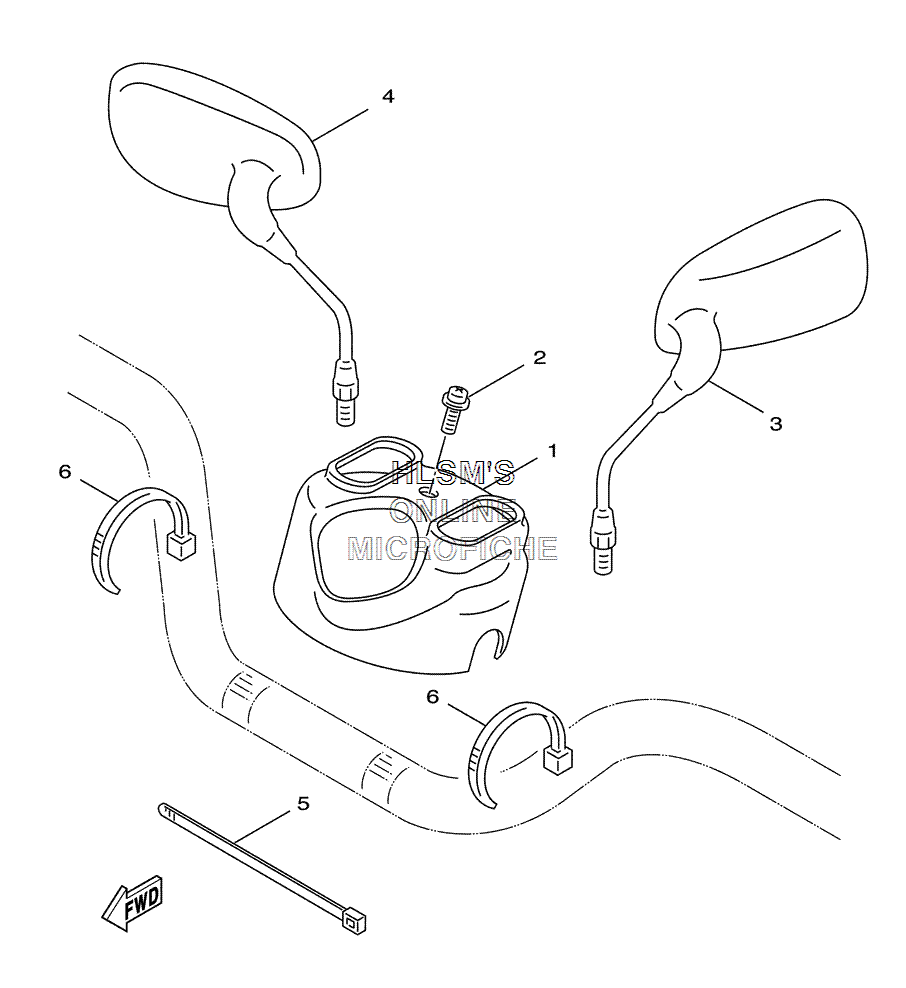

HANDLEBAR - COVER W/ MIRRORS для Yamaha VINO 125 - 2004 года выпуска`
-
№АртикулНазвание
-
15YR-F6143-00-00 COVER, HANDLEBAR UPPER 1COVER, HANDLEBAR UPPER 1
-
290159-05820-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
35YR-F6280-00-00 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
-
45YR-F6290-00-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
-
590464-12812-00 CLAMPCLAMP
-
631U-H3936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
