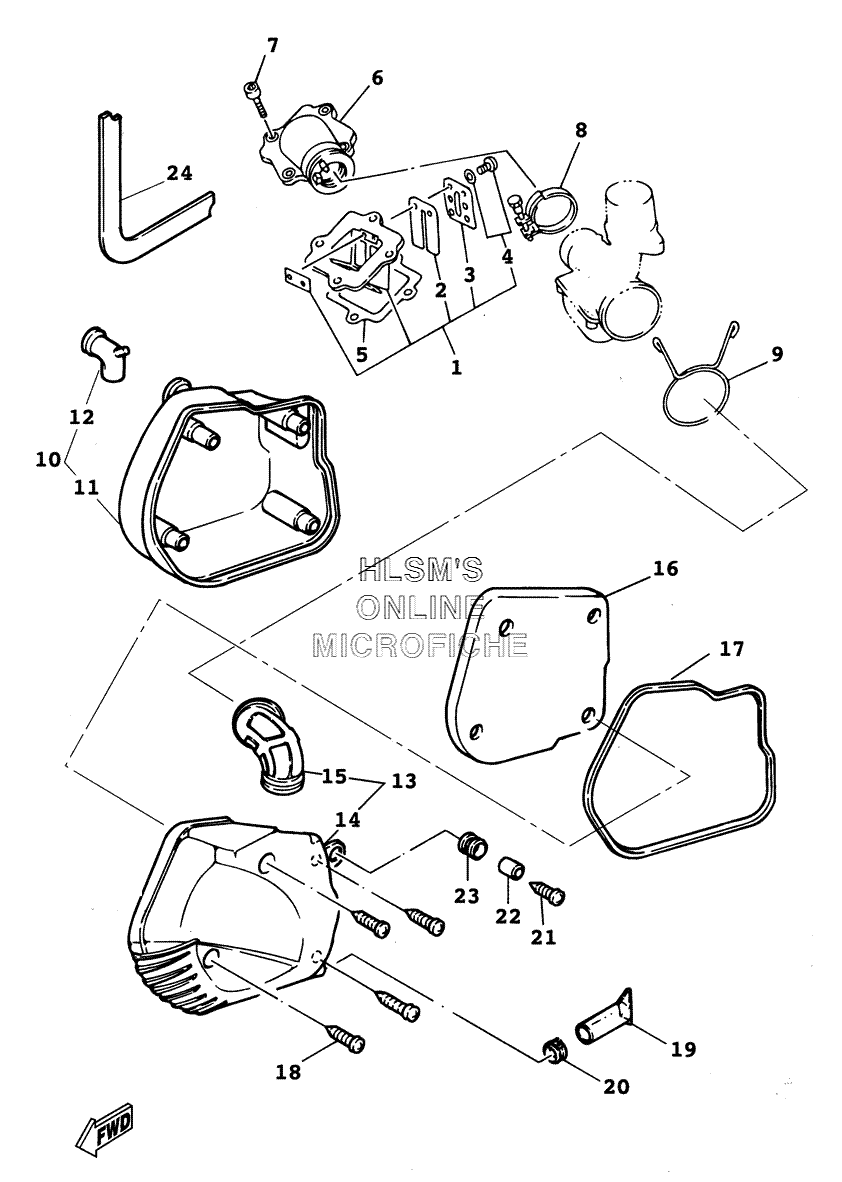

AIR CLEANER ASSY. W/ INTAKE для Yamaha ZUMA - 2002 года выпуска`
-
№АртикулНазвание
-
13XG-E3610-00-00 REED VALVE ASSYREED VALVE ASSY
-
23XG-E3613-00-00 ...REED, VALVE...REED, VALVE
-
33XG-E3616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
497607-03208-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
54SC-E3621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
64WX-E3555-10-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
791318-06020-00 BOLTBOLT
-
83XG-E3575-01-00 BANDBAND
-
990467-24140-00 CLIP, SCISSORCLIP, SCISSOR
-
104WX-W1441-00-00 AIR CLEANER CASE COMP.AIR CLEANER CASE COMP.
-
114WX-E4411-00-00 ...CASE, AIR CLEANER 1...CASE, AIR CLEANER 1
-
124WX-E4437-00-00 ...DUCT...DUCT
-
134WX-W1442-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
144WX-E4412-00-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
154VP-E4453-00-00 ...JOINT, AIR CLEANER 1...JOINT, AIR CLEANER 1
-
164VP-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
174VP-E4452-00-00 SEALSEAL
-
1897707-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
194VP-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2090467-11823-00 CLIPCLIP
-
2197607-06220-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2290387-068J5-00 COLLARCOLLAR
-
2390480-12497-00 GROMMETGROMMET
-
245DA-E4425-00-00 DAMPER 1DAMPER 1
