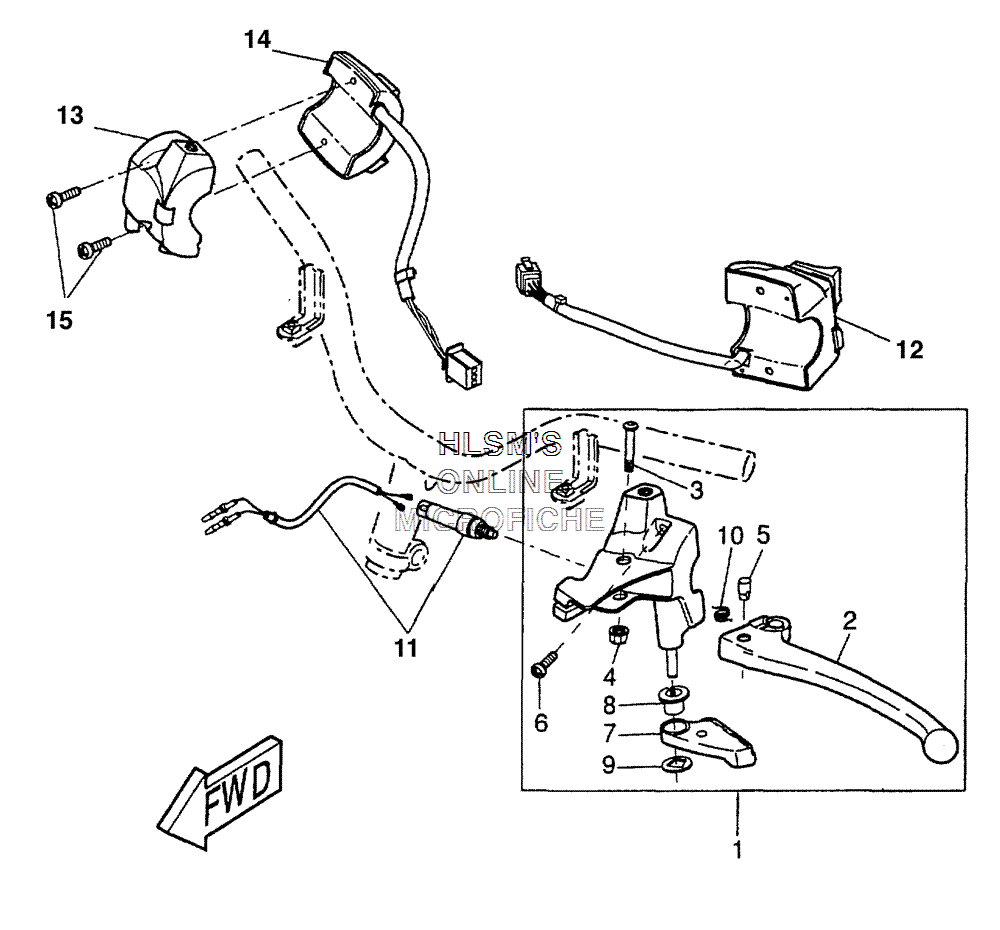

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ZUMA ll - 2000 года выпуска`
-
№АртикулНазвание
-
14PA-H2910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
24KH-H3912-00-00 LEVER 1LEVER 1
-
33VL-H3915-00-00 SCREW, LEVER FITTINGSCREW, LEVER FITTING
-
43VL-H3916-00-00 NUT, LEVER FITTINGNUT, LEVER FITTING
-
53VL-F636A-00-00 END, WIRE 1END, WIRE 1
-
63VL-H3945-00-00 BOLT, LEVERBOLT, LEVER
-
73VL-H3941-00-00 LEVER, STARTERLEVER, STARTER
-
83VL-H3982-00-00 COLLAR, DECOMPRESSIONCOLLAR, DECOMPRESSION
-
93VL-H3943-00-00 WASHER, STARTERWASHER, STARTER
-
104KH-H3982-00-00 SPRINGSPRING
-
115AD-H3980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
124CA-H3976-11-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
134CU-H3987-00-00 CASE, SWITCH LOWERCASE, SWITCH LOWER
-
144RW-H3972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
153VL-H3945-00-00 BOLT, LEVERBOLT, LEVER
