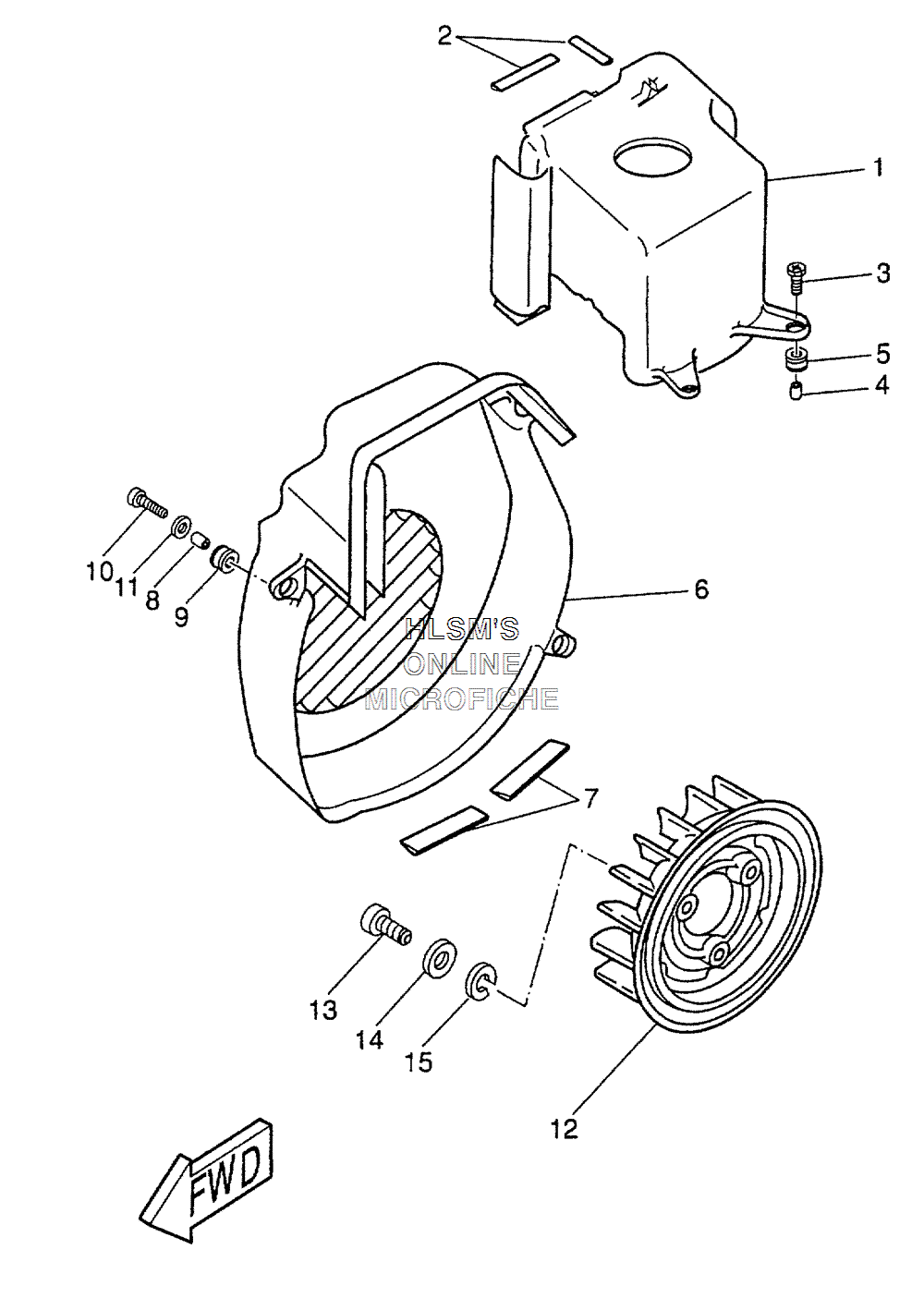

AIR SHROUD W/ FAN для Yamaha ZUMA ll - 2000 года выпуска`
-
№АртикулНазвание
-
13VL-E2651-00-00 AIR SHROUD, CYLINDERAIR SHROUD, CYLINDER
-
23VL-E2658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
390153-06022-00 SCREW, HEXAGONSCREW, HEXAGON
-
490387-06023-00 COLLARCOLLAR
-
590480-12237-00 GROMMETGROMMET
-
63VL-E2653-00-00 AIR SHROUD, CYLINDERAIR SHROUD, CYLINDER
-
73VL-E2658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
890387-06023-00 COLLARCOLLAR
-
990480-12237-00 GROMMETGROMMET
-
1095817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
123VL-E2611-01-00 FANFAN
-
1398507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1592907-06600-00 WASHER, PLATEWASHER, PLATE
