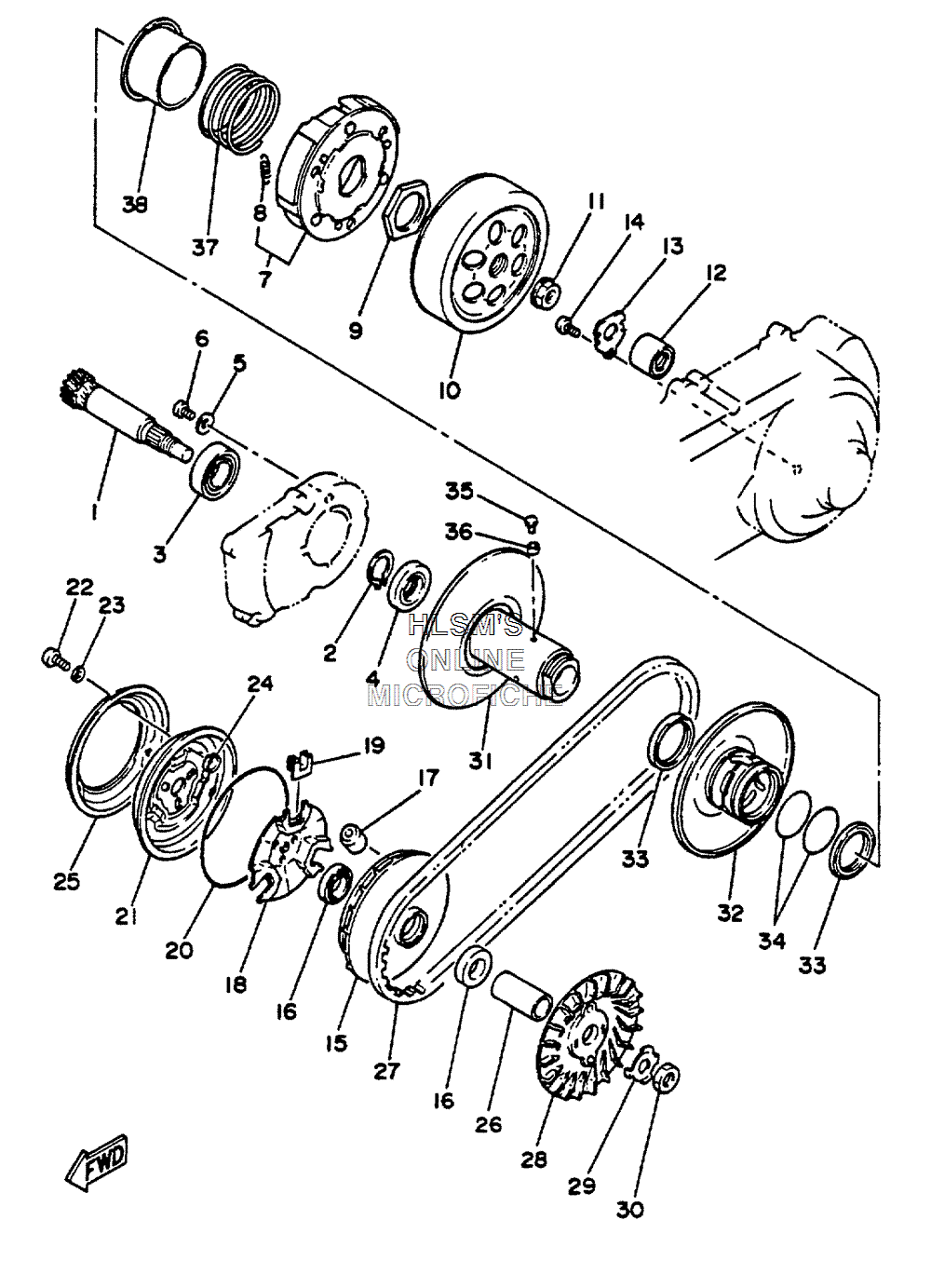

CLUTCH ASSY. для Yamaha RIVA 125 - 2000 года выпуска`
-
№АртикулНазвание
-
150M-16111-01-00 GEAR, PRIMARY DRIVE (14T)GEAR, PRIMARY DRIVE (14T)
-
299009-22400-00 CIRCLIPCIRCLIP
-
393306-00433-00 BEARINGBEARING
-
493102-22335-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
590201-06412-00 WASHER, PLATEWASHER, PLATE
-
698580-06010-00 SCREW, PAN HEAD (97803-06010-00SCREW, PAN HEAD (97803-06010-00
-
750W-16620-20-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
850W-16626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
990170-36279-00 NUTNUT
-
104DH-16611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
1190179-14469-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1293399-99918-00 BEARING, SPECIALBEARING, SPECIAL
-
1350M-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1498580-06010-00 SCREW, PAN HEAD (97803-06010-00SCREW, PAN HEAD (97803-06010-00
-
1550M-17620-01-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
1693101-23127-00 OIL SEALOIL SEAL
-
1750M-17632-00-00 WEIGHTWEIGHT
-
1850W-17623-00-00 CAMCAM
-
1950W-17653-00-00 SLIDERSLIDER
-
2093210-97690-00 O-RINGO-RING
-
2150M-17630-00-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
2290157-04088-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392901-04600-00 WASHER, PLATEWASHER, PLATE
-
2490214-04038-00 WASHER, CLAWWASHER, CLAW
-
2550M-1763E-01-00 PLATEPLATE
-
2690387-166L7-00 COLLARCOLLAR
-
2750W-17641-00-00 V-BELTV-BELT
-
2850W-17622-01-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2990215-14236-00 WASHER, LOCKWASHER, LOCK
-
3090170-12338-00 NUTNUT
-
3150W-17660-01-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
3250M-17870-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
3393104-41091-00 OIL SEALOIL SEAL
-
3493210-43713-00 O-RINGO-RING
-
3550W-17664-00-00 PIN, GUIDEPIN, GUIDE
-
3650W-17674-00-00 COLLAR, GUIDECOLLAR, GUIDE
-
3790501-503A3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3850W-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
