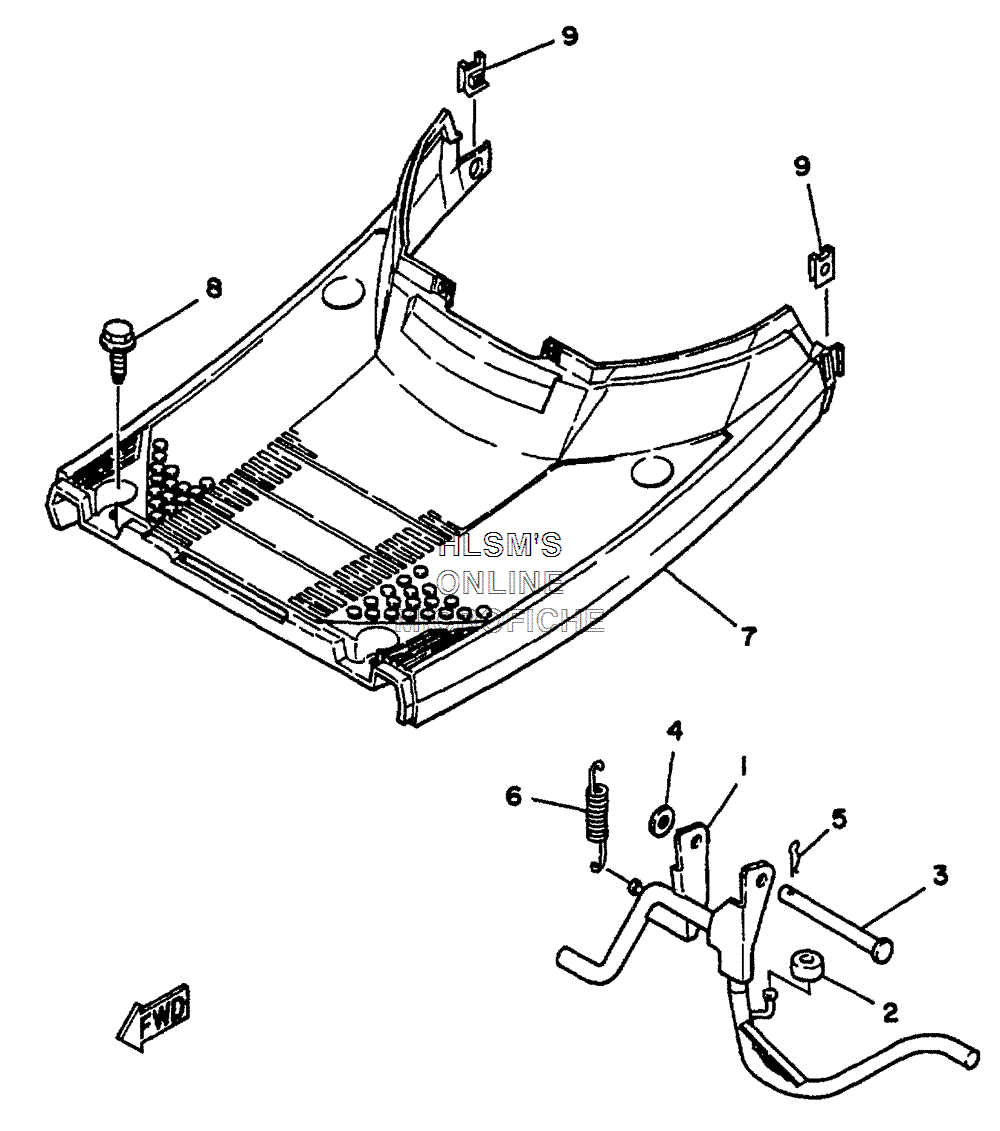

STAND W/ FOOTREST для Yamaha JOG - 2000 года выпуска`
-
№АртикулНазвание
-
13YJ-27111-01-00 STAND, MAINSTAND, MAIN
-
290387-064A4-00 COLLARCOLLAR
-
390240-10137-00 PIN, CLEVISPIN, CLEVIS
-
490202-10120-00 WASHER, PLATEWASHER, PLATE
-
590468-12006-00 CLIPCLIP
-
690506-32464-00 SPRING, TENSIONSPRING, TENSION
-
73KJ-27481-31-00 BOARD, FOOTRESTBOARD, FOOTREST
-
890119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
925G-21535-00-00 NUT 1NUT 1
