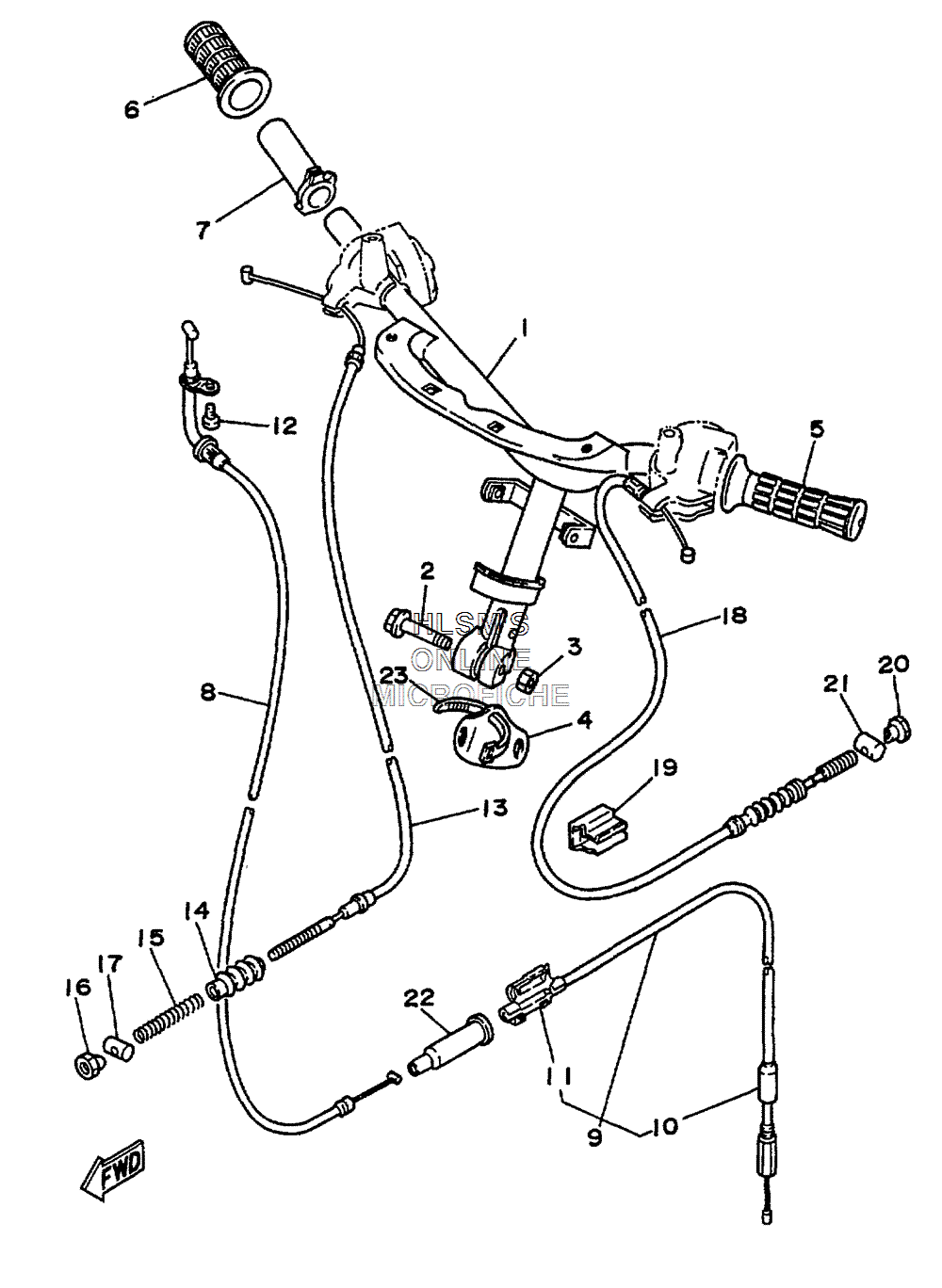

HANDLEBAR W/ CABLES - MIRRORS для Yamaha JOG - 2000 года выпуска`
-
№АртикулНазвание
-
12VK-26110-00-00 HANDLE, COMP.HANDLE, COMP.
-
290105-10036-00 BOLT, FLANGEBOLT, FLANGE
-
395617-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
42EK-26293-00-00 BANDBAND
-
53RY-26241-01-00 GRIP (LEFT)GRIP (LEFT)
-
63RY-26242-01-00 GRIP (RIGHT)GRIP (RIGHT)
-
72GN-26243-00-00 TUBE, THROTTLE GUIDETUBE, THROTTLE GUIDE
-
82EK-26311-02-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
93KJ-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
10304-26329-00-00 ...CAP, RUBBER...CAP, RUBBER
-
1153L-26261-01-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
1298517-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
133SA-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
143KJ-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1590501-10513-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
169017-06411-00 NUTNUT
-
1790249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
183SA-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
193KJ-26393-00-00 HOLDERHOLDER
-
2090179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
2190249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
221YU-26329-00-00 CAP, RUBBERCAP, RUBBER
-
2312R-82591-00-00 BANDBAND
