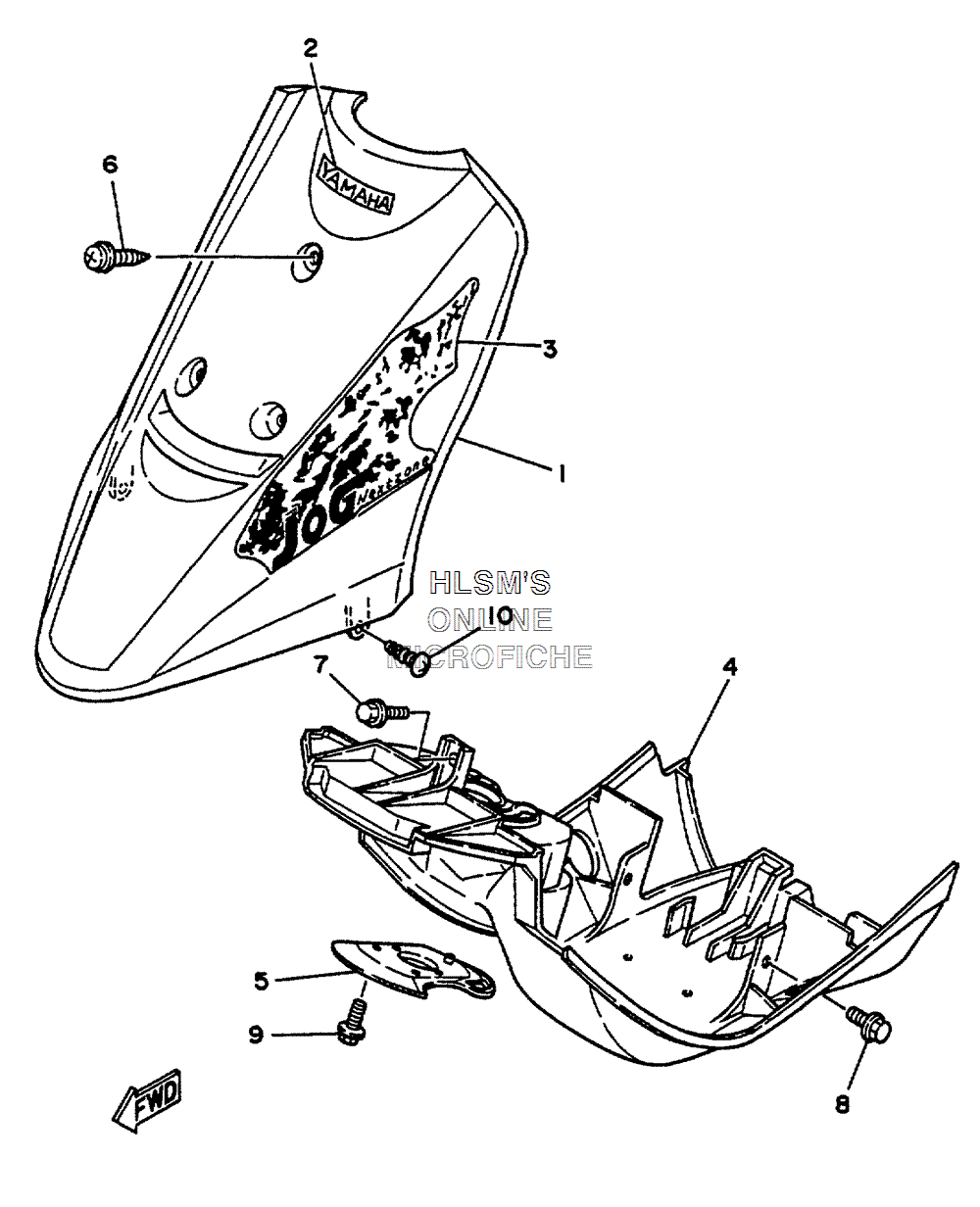

FENDER - FRONT / REAR для Yamaha JOG - 2000 года выпуска`
-
№АртикулНазвание
-
13KJ-21511-00-4B FENDER, FRONT (BLACK)FENDER, FRONT (BLACK)
-
13KJ-21511-00-GE FENDER, FRONT (WHITE)FENDER, FRONT (WHITE)
-
23WF-2153E-00-00 EMBLEM, YAMAHA (WHITE)EMBLEM, YAMAHA (WHITE)
-
23WF-2153E-00-00 EMBLEM, YAMAHA (BLACK)EMBLEM, YAMAHA (BLACK)
-
34FB-21578-10-00 EMBLEM (BLACK)EMBLEM (BLACK)
-
34MN-21578-00-00 EMBLEM (WHITE)EMBLEM (WHITE)
-
43KJ-21552-03-00 FENDER, INNERFENDER, INNER
-
527V-21553-03-00 FENDER, INNER 2FENDER, INNER 2
-
690159-06178-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
795817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
895817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
990119-06018-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1097707-50012-00 SCREW, TAPPINGSCREW, TAPPING
