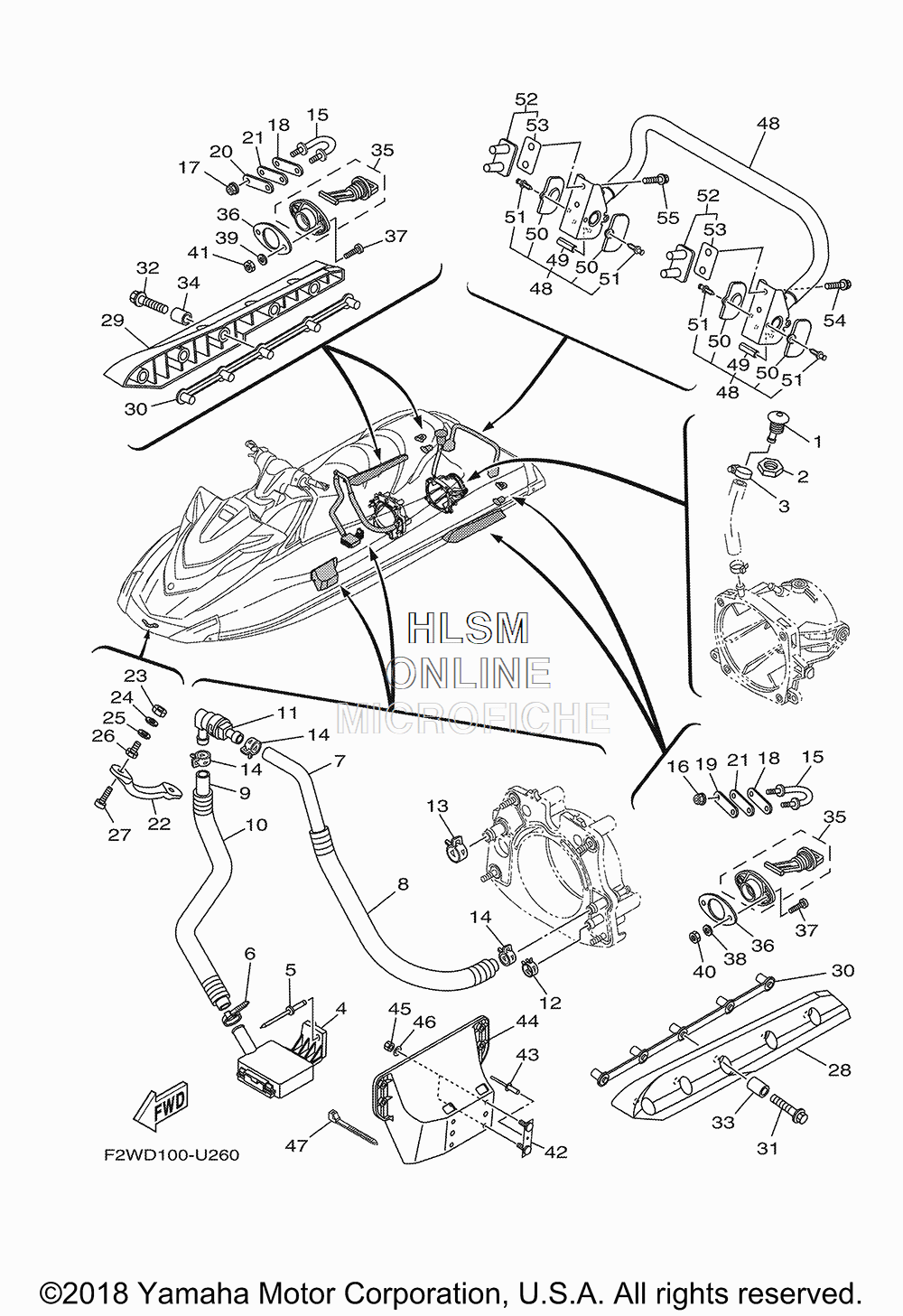

HULL FITTINGS W/ SPONSONS для Yamaha VXR - 2019 года выпуска`
-
№АртикулНазвание
-
1F1W-U269B-00-00 SPOUTSPOUT
-
2EU0-61652-00-00 NUTNUT
-
390601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
4F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
590267-489U8-00 RIVET, BLINDRIVET, BLIND
-
690465-11829-00 CLAMPCLAMP
-
790445-20804-00 HOSE (L860)HOSE (L860)
-
86EX-U773E-00-00 TUBE, 2TUBE, 2
-
990445-20800-00 HOSE (L500)HOSE (L500)
-
106EX-U773D-00-00 TUBETUBE
-
1168N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
1290467-200A3-00 CLIPCLIP
-
1390467-240A3-00 CLIPCLIP
-
1490467-180A5-00 CLIPCLIP
-
15F2N-U1628-02-00 STERN EYESTERN EYE
-
169572R-08300-00 NUT, FLANGENUT, FLANGE
-
179572R-08300-00 NUT, FLANGENUT, FLANGE
-
18GP7-U4953-10-00 PLATE APLATE A
-
19GP7-U4953-10-00 PLATE APLATE A
-
20GP7-U4953-10-00 PLATE APLATE A
-
21F1B-U1653-02-00 PACKINGPACKING
-
22F1K-61624-00-00 BOW EYE 1BOW EYE 1
-
2399780-12600-00 NUT. HEX. (COARS)NUT. HEX. (COARS)
-
2492990-12200-00 WASHER, PLAINWASHER, PLAIN
-
25F0X-61637-00-00 WASHERWASHER
-
26F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2790110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
28F1S-U883N-01-00 STABILIZER (LEFT HAND) (BLACK)STABILIZER (LEFT HAND) (BLACK)
-
29F1S-U883P-01-00 STABILIZER (RIGHT HAND) (BLACK)STABILIZER (RIGHT HAND) (BLACK)
-
30F1X-U883T-01-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
3190105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
3290105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
33F2N-U8169-00-00 SPACERSPACER
-
34F2N-U8169-00-00 SPACERSPACER
-
35F1S-U2280-02-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
36F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
379788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
389299R-05200-00 WASHERWASHER
-
399299R-05200-00 WASHERWASHER
-
409572R-05300-00 NUT, FLANGENUT, FLANGE
-
419572R-05300-00 NUT, FLANGENUT, FLANGE
-
42F1K-U826C-03-00 BRACKETBRACKET
-
4390267-489U1-00 RIVET, BLINDRIVET, BLIND
-
44F1W-U8572-01-00 BRACKET 2BRACKET 2
-
459572R-08300-00 NUT, FLANGENUT, FLANGE
-
469299R-08200-00 WASHERWASHER
-
4790464-32801-00 CLAMPCLAMP
-
48F2X-U278A-00-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
49F1W-U771H-00-00 ...SLEEVE 1...SLEEVE 1
-
50F2C-U377H-00-00 ...INNER, COVER SIDE 1...INNER, COVER SIDE 1
-
51F2C-U1314-00-00 ...PIN...PIN
-
52F2S-U278F-00-00 BRACKET, LADDER (LEFT HAND)BRACKET, LADDER (LEFT HAND)
-
53F2S-U278H-00-00 ...PACKING, BRKT. 1...PACKING, BRKT. 1
-
5490119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5590119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
