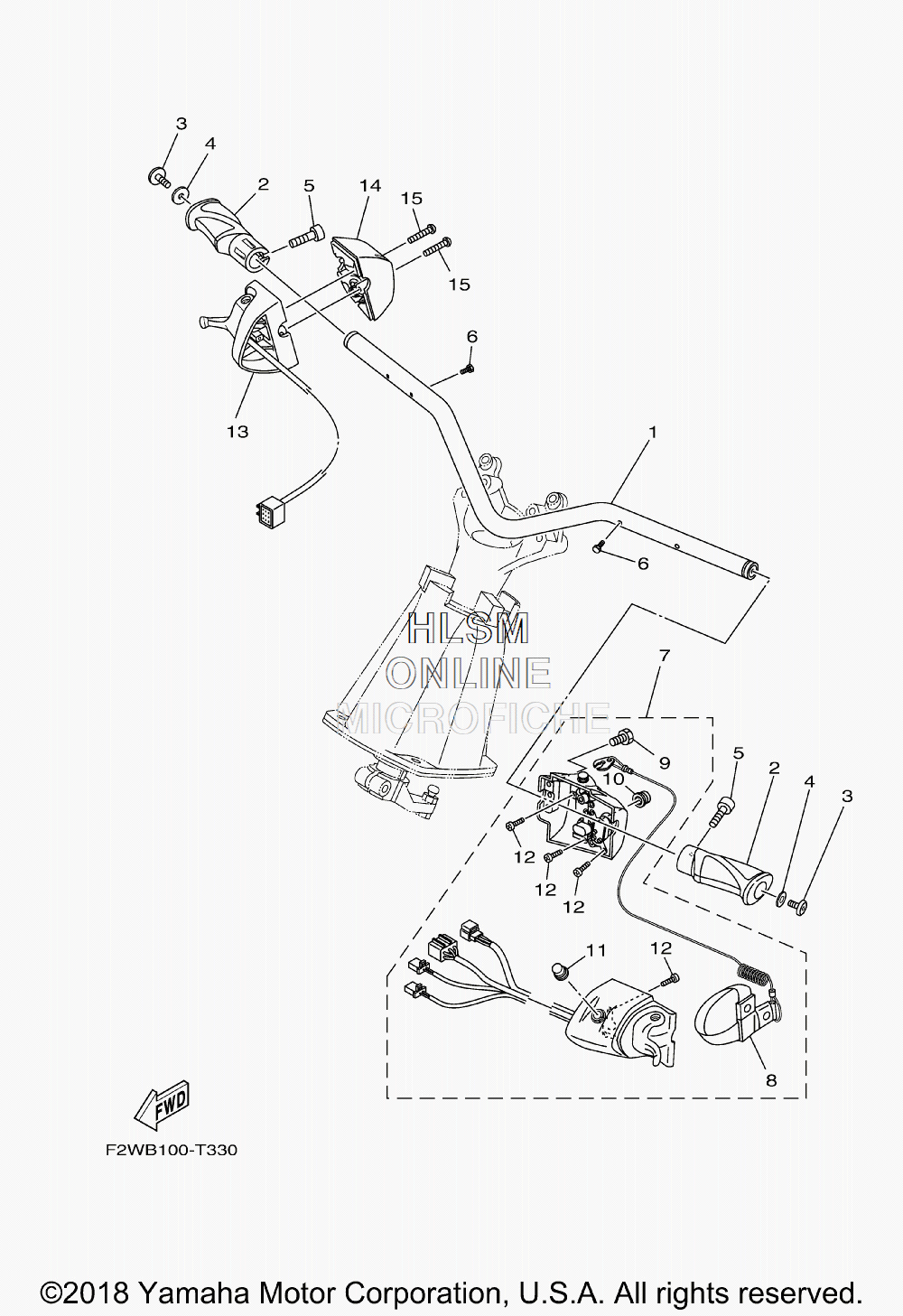

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha VXR - 2019 года выпуска`
-
№АртикулНазвание
-
1F2X-U1552-00-00 HANDLEHANDLE
-
2F3P-U155D-10-00 GRIP, HANDLE (RM9 - RED METALLIC)GRIP, HANDLE (RM9 - RED METALLIC)
-
2F3P-U155D-00-00 GRIP, HANDLE (VPBM6 - BLUE METALLIC)GRIP, HANDLE (VPBM6 - BLUE METALLIC)
-
390110-06382-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490201-068G0-00 WASHER, PLATEWASHER, PLATE
-
5F2S-U1516-00-00 BOLTBOLT
-
691380-04030-00 BOLTBOLT
-
7F3J-68310-01-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
8EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
96CS-6725F-00-00 ...BOLT, THROTTLE...BOLT, THROTTLE
-
10FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
11FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1297780-30610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
136CS-14305-10-00 THROTTLE LEVER COMPTHROTTLE LEVER COMP
-
146EX-82154-00-00 CASECASE
-
156CS-6725F-00-00 BOLT, THROTTLEBOLT, THROTTLE
