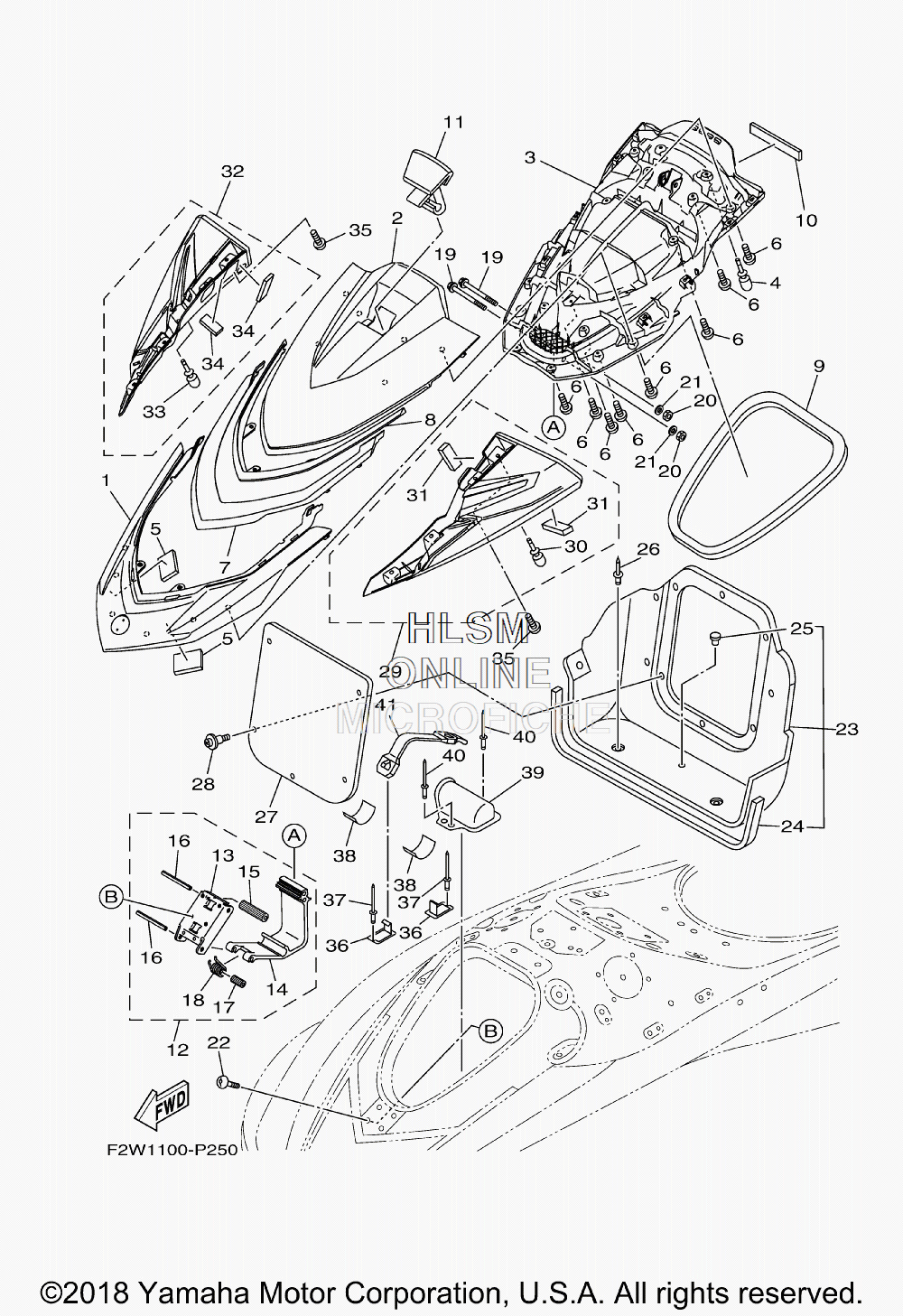

FRONT STORAGE W/ COVER для Yamaha VXR - 2019 года выпуска`
-
№АртикулНазвание
-
1F2W-U517B-02-P1 LID, ENGINE ROOM (RM9 - RED METALLIC)LID, ENGINE ROOM (RM9 - RED METALLIC)
-
1F2W-U517B-02-P7 LID, ENGINE ROOM (VPBM6 - BLUE METALLIC)LID, ENGINE ROOM (VPBM6 - BLUE METALLIC)
-
2F2W-U515N-00-P7 VISOR (VPBM6 - BLUE METALLIC)VISOR (VPBM6 - BLUE METALLIC)
-
2F2W-U515N-00-P1 VISOR (RM9 - RED METALLIC)VISOR (RM9 - RED METALLIC)
-
3F2W-U519G-00-00 INNER, ENGINE HATCHINNER, ENGINE HATCH
-
4F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
5F2W-U1743-00-00 PACKINGPACKING
-
6F2S-U13C1-00-00 SCREWSCREW
-
7F3P-U517V-80-00 ORNAMENT, CENTER (VPBM6 - BLUE METALLIC)ORNAMENT, CENTER (VPBM6 - BLUE METALLIC)
-
7F3P-U517V-60-00 ORNAMENT, CENTER (RM9 - RED METALLIC)ORNAMENT, CENTER (RM9 - RED METALLIC)
-
8F3P-U517V-90-00 ORNAMENT, CENTER (VPBM6 - BLUE METALLIC)ORNAMENT, CENTER (VPBM6 - BLUE METALLIC)
-
8F3P-U517V-70-00 ORNAMENT, CENTER (RM9 - RED METALLIC)ORNAMENT, CENTER (RM9 - RED METALLIC)
-
9F2N-U2663-01-00 PACKING 1PACKING 1
-
10F2C-U515D-00-00 DAMPER 1DAMPER 1
-
11F2X-U517C-01-00 LOCK, LIDLOCK, LID
-
12F2X-U515A-01-00 HINGE ASSY.HINGE ASSY.
-
13F1K-U518E-04-00 ...PLATE, HINGE LID...PLATE, HINGE LID
-
14F1K-U517D-05-00 ...HINGE, LID...HINGE, LID
-
15F2X-U135C-00-00 ...ROLLER, DETENT...ROLLER, DETENT
-
16F1K-U517R-01-00 ...PIN, HINGE...PIN, HINGE
-
17F1K-U471E-03-00 ...SPACER 1...SPACER 1
-
18F1K-U283B-02-00 ...SPRING, TORSION...SPRING, TORSION
-
1990105-06826-00 BOLT, FLANGEBOLT, FLANGE
-
209572R-06300-00 NUT, NYLONNUT, NYLON
-
219299R-06200-00 WASHERWASHER
-
22F4G-U7823-00-00 SCREWSCREW
-
23F2X-U475B-00-00 LOCKER,BOWLOCKER,BOW
-
24F2N-U266C-01-00 ...PACKING 4...PACKING 4
-
2590605-502U1-00 ...PLUG, BLIND...PLUG, BLIND
-
2690269-08801-00 RIVETRIVET
-
27F2S-U475F-00-00 PLATE, LOKER BOWPLATE, LOKER BOW
-
2890269-08801-00 RIVETRIVET
-
29F3P-U590D-80-00 MIRROR ASSY 1 (RM9 - RED METALLIC)MIRROR ASSY 1 (RM9 - RED METALLIC)
-
29F3P-U590D-90-00 MIRROR ASSY 1 (VPBM6 - BLUE METALLIC)MIRROR ASSY 1 (VPBM6 - BLUE METALLIC)
-
30F1W-U3768-01-00 ...CUSHION, RUBBER...CUSHION, RUBBER
-
31F1K-U266B-00-00 ...PACKING 3...PACKING 3
-
32F3P-U590E-80-00 MIRROR ASSY 2 (RM9 - RED METALLIC)MIRROR ASSY 2 (RM9 - RED METALLIC)
-
32F3P-U590E-90-00 MIRROR ASSY 2 (VPBM6 - BLUE METALLIC)MIRROR ASSY 2 (VPBM6 - BLUE METALLIC)
-
33F1W-U3768-01-00 ...CUSHION, RUBBER...CUSHION, RUBBER
-
34F1K-U266B-00-00 ...PACKING 3...PACKING 3
-
35F2X-U13C1-00-00 SCREWSCREW
-
36F1K-U5772-04-00 HOOK AHOOK A
-
3790267-489U1-00 RIVET, BLINDRIVET, BLIND
-
38F1K-U759C-00-00 MAT 2MAT 2
-
39F2X-U5983-00-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
4090267-48802-00 RIVET, BLINDRIVET, BLIND
-
41F2P-U828K-00-00 BAND 1BAND 1
