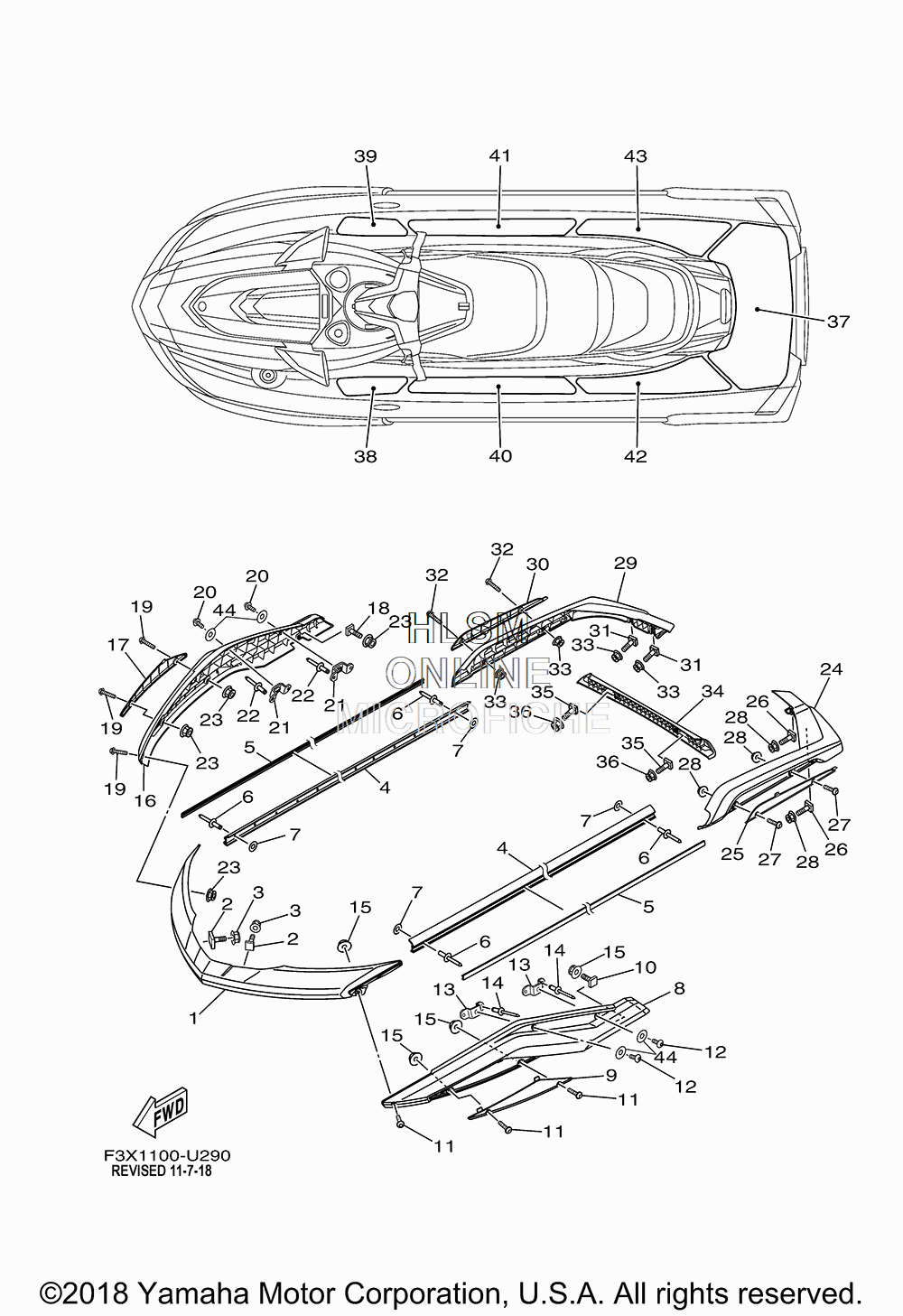

HULL - GUNWALE - MAT для Yamaha FX CRUISER SVHO LTD - 2019 года выпуска
-
№АртикулНазвание
-
1F3X-U2511-11-00 GUNWALE, BOW (WHITE)GUNWALE, BOW (WHITE)
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
3F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
4F3X-U2512-00-00 GUNWALE, SIDE (BLACK)GUNWALE, SIDE (BLACK)
-
5F3X-U2519-20-00 INNER, GUNWALE (WHITE)INNER, GUNWALE (WHITE)
-
690267-489U8-00 RIVET, BLINDRIVET, BLIND
-
79299R-05200-00 WASHERWASHER
-
8F3X-U252E-10-00 JOINT, GUNWALE (LEFT HAND) (WHITE)JOINT, GUNWALE (LEFT HAND) (WHITE)
-
9F3X-U2514-00-00 GUNWALL INSIDE (BLACK)GUNWALL INSIDE (BLACK)
-
10F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
11F3X-U7823-11-00 SCREWSCREW
-
12F4G-U7823-00-00 SCREWSCREW
-
13F3X-U4949-00-00 BRACKETBRACKET
-
1490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F3X-U252F-10-00 JOINT, GUNWALE(RIGHT HAND) (WHITE)JOINT, GUNWALE(RIGHT HAND) (WHITE)
-
17F3X-U2514-10-00 GUNWALL INSIDE (BLACK)GUNWALL INSIDE (BLACK)
-
18F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
19F3X-U7823-11-00 SCREWSCREW
-
20F4G-U7823-00-00 SCREWSCREW
-
21F3X-U4949-00-00 BRACKETBRACKET
-
2290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
23F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
24F3X-U251D-10-00 GUNWALE, STERN 1 (WHITE)GUNWALE, STERN 1 (WHITE)
-
25F3X-U255C-00-00 INNER GUNWALE, AFT (BLACK)INNER GUNWALE, AFT (BLACK)
-
26F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
27F3X-U7823-11-00 SCREWSCREW
-
28F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
29F3X-U251E-10-00 GUNWALE, STERN 2 (WHITE)GUNWALE, STERN 2 (WHITE)
-
30F3X-U255C-10-00 INNER GUNWALE, AFT (BLACK)INNER GUNWALE, AFT (BLACK)
-
31F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
32F3X-U7823-11-00 SCREWSCREW
-
33F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
34F3X-U252C-00-00 COVER, GUNWALE 1 (BLACK)COVER, GUNWALE 1 (BLACK)
-
35F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
36F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
37F3X-U3581-01-00 MAT, UPPER (GREY AND BLACK)MAT, UPPER (GREY AND BLACK)
-
38F3X-U351H-00-00 MAT, STEP 1 (GREY AND BLACK)MAT, STEP 1 (GREY AND BLACK)
-
39F3X-U351J-00-00 MAT, STEP 2 (GREY AND BLACK)MAT, STEP 2 (GREY AND BLACK)
-
40F3X-U351K-00-00 MAT, STEP 3 (GREY AND BLACK)MAT, STEP 3 (GREY AND BLACK)
-
41F3X-U351M-00-00 MAT, STEP 4 (GREY AND BLACK)MAT, STEP 4 (GREY AND BLACK)
-
42F3X-U351N-00-00 MAT, STEP 5 (GREY AND BLACK)MAT, STEP 5 (GREY AND BLACK)
-
43F3X-U351P-00-00 MAT, STEP 6 (GREY AND BLACK)MAT, STEP 6 (GREY AND BLACK)
-
4490201-06805-00 WASHER, PLAINWASHER, PLAIN
