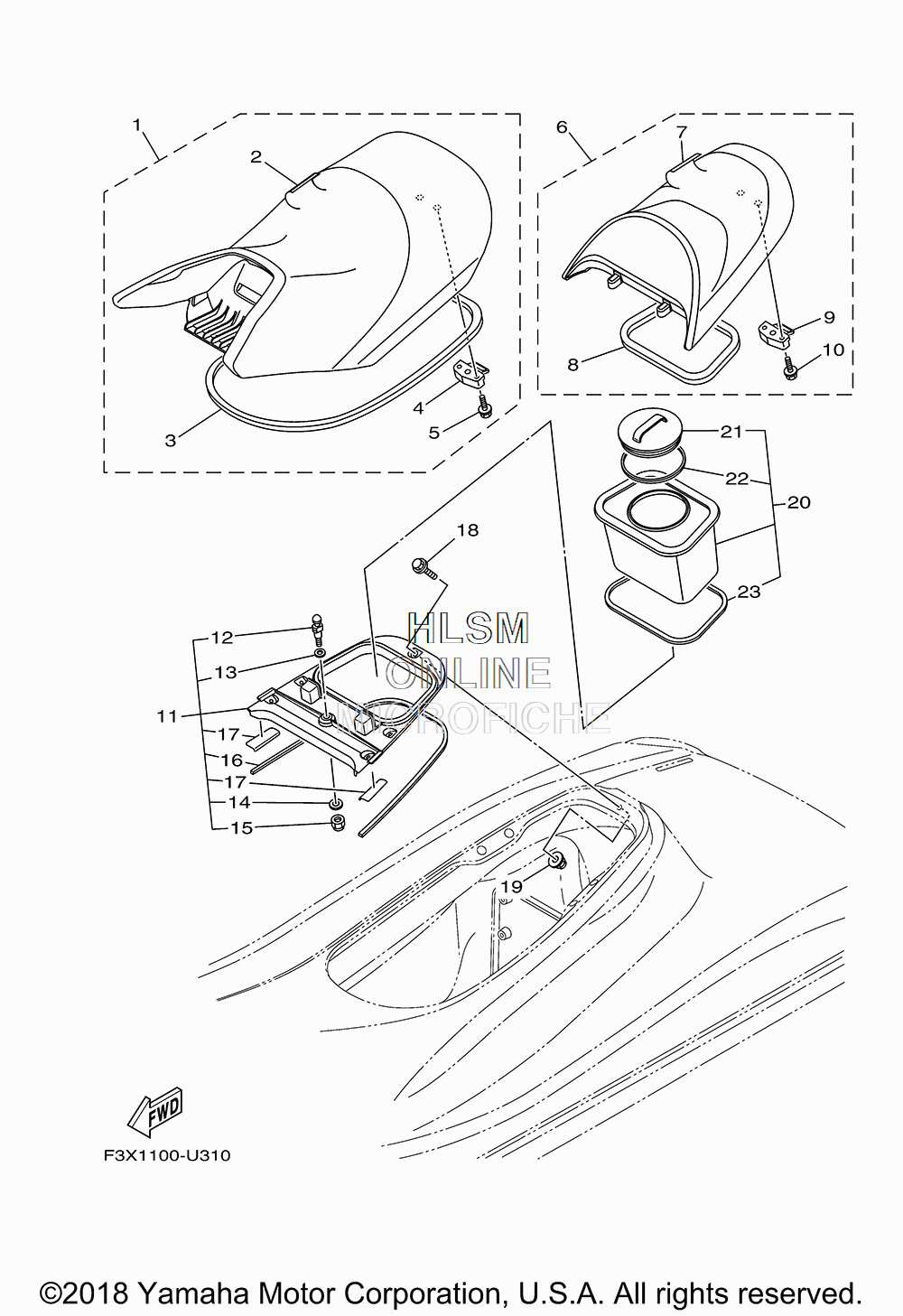

SEAT W/ UNDER LOCKER для Yamaha FX CRUISER HO - 2019 года выпуска`
-
№АртикулНазвание
-
1F3X-U371A-01-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2F3X-U371B-00-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3F3X-U2664-01-00 ...PACKING...PACKING
-
4F2C-U3850-00-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F3X-U372A-01-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
7F3X-U372B-00-00 ...COVER, SEAT...COVER, SEAT
-
8F3X-U266D-01-00 ...PACKING 5...PACKING 5
-
9F2C-U3850-00-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
1090119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
11F2S-U890L-05-00 DECK BEAM ASSYDECK BEAM ASSY
-
12GH1-U3774-00-00 ...PIN...PIN
-
1390201-109U6-00 ...WASHER, PLATE...WASHER, PLATE
-
149299R-10200-00 ...WASHER...WASHER
-
159572R-10300-00 ...NUT, NYLON...NUT, NYLON
-
16F2S-U375E-00-00 ...PACKING 1...PACKING 1
-
17F2S-U8244-00-00 ...PACKING...PACKING
-
1890119-08828-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19F3Y-U142L-00-00 NUT, LOCKNUT, LOCK
-
20F2C-U591A-03-00 CASE ASSY 1CASE ASSY 1
-
21F2C-U591C-00-00 ...CAP,CASE...CAP,CASE
-
22F2C-U591D-01-00 ...PACKING,CASE...PACKING,CASE
-
23F2C-U266E-00-00 ...PACKING,6...PACKING,6
