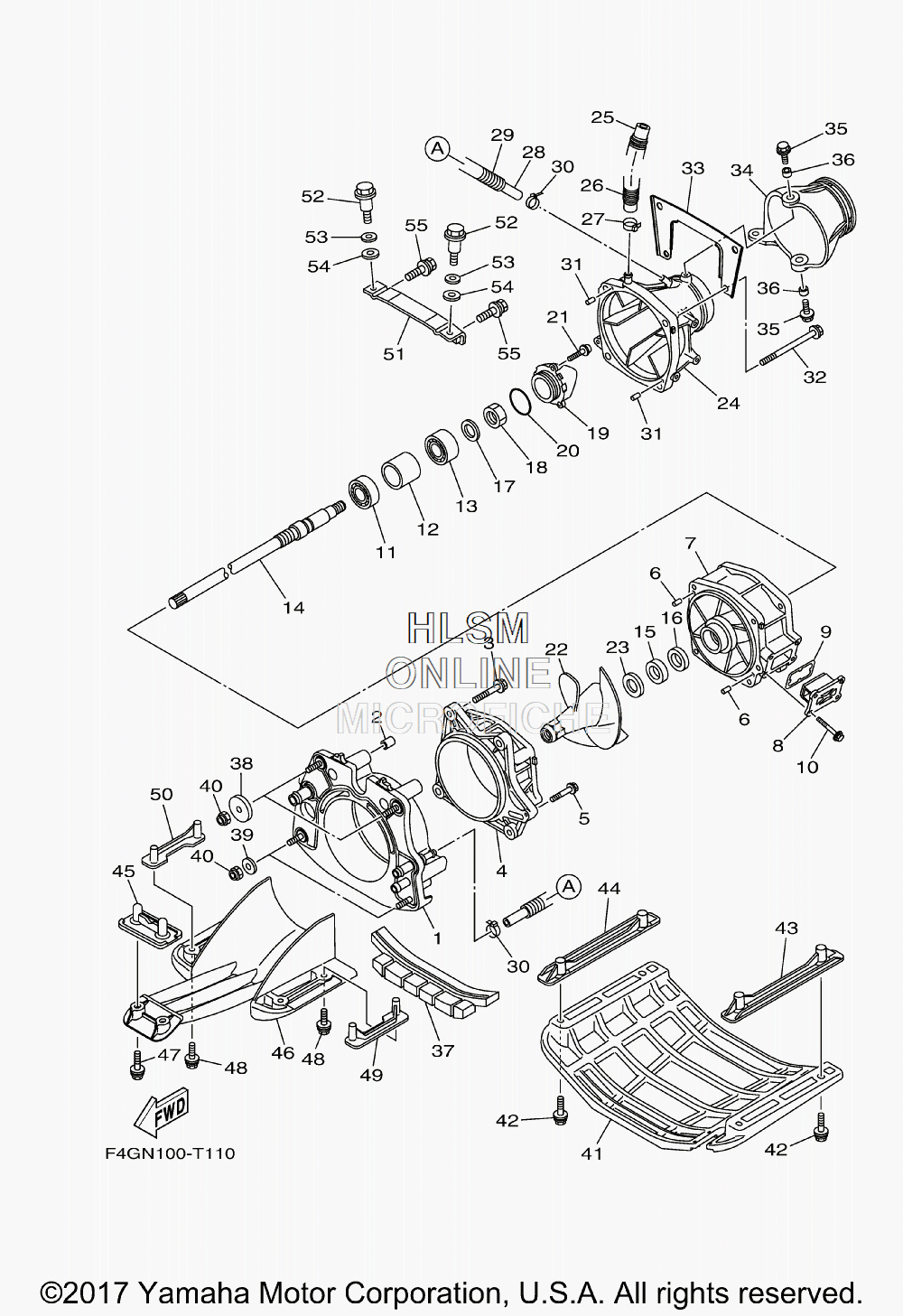

PROPULSION SYSTEM - EXTERNAL для Yamaha VX CRUISER - 2018 года выпуска`
-
№АртикулНазвание
-
16CS-G5831-20-00 PLATE, TRANSOMPLATE, TRANSOM
-
299590-14016-00 PIN, DOWELPIN, DOWEL
-
390119-10810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46CR-R1312-00-00 HOUSING, IMPELLERHOUSING, IMPELLER
-
590119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
693606-12019-00 PIN, DOWELPIN, DOWEL
-
76EY-R1315-00-00 DUCT, IMPELLERDUCT, IMPELLER
-
86EX-G6882-10-00 FILTERFILTER
-
966V-42414-00-00 O-RINGO-RING
-
1090119-06889-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1193306-205U0-00 BEARINGBEARING
-
1265V-G5538-00-00 SPACER 1SPACER 1
-
1393306-304U1-00 BEARINGBEARING
-
1468Y-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
1593101-28M66-00 OIL SEALOIL SEAL
-
1693101-28002-00 OIL SEALOIL SEAL
-
1792990-16600-00 WASHERWASHER
-
1895317-16700-00 NUTNUT
-
196EY-R1326-00-00 CAPCAP
-
2093210-44003-00 O-RINGO-RING
-
2190110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
226EY-R1321-01-00 IMPELLERIMPELLER
-
236EY-R1348-00-00 SPACERSPACER
-
246EX-R1318-01-00 NOZZLENOZZLE
-
256CN-U72M2-00-00 HOSE 1HOSE 1
-
2690446-24M46-00 HOSE (L175)HOSE (L175)
-
2790601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
2890445-14807-00 HOSE (L355)HOSE (L355)
-
2990446-20MF5-00 HOSE (L320)HOSE (L320)
-
3090465-11829-00 CLAMPCLAMP
-
3193606-12019-00 PIN, DOWELPIN, DOWEL
-
3290119-10806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
336EY-R1959-00-00 BRACKETBRACKET
-
346EX-R1313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3590119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690387-08M06-00 COLLARCOLLAR
-
37F2X-U72C0-00-00 SPACERSPACER
-
38F1S-U725E-01-00 WASHERWASHER
-
3990201-10801-00 WASHER, PLATEWASHER, PLATE
-
409572R-10300-00 NUT, NYLONNUT, NYLON
-
41F2X-U273B-00-00 PLATE 2PLATE 2
-
4290119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43F2X-U8572-00-00 BRACKET 2BRACKET 2
-
44F2X-U8572-00-00 BRACKET 2BRACKET 2
-
45F2S-U8577-00-00 BRACKET, 3BRACKET, 3
-
466EX-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
4790119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4890119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
49F2X-U8571-00-00 BRACKET 1BRACKET 1
-
50F2X-U8571-00-00 BRACKET 1BRACKET 1
-
51F2C-U7557-01-00 BRACKETBRACKET
-
5290109-08041-00 BOLTBOLT
-
5392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
5490430-12002-00 GASKETGASKET
-
5590119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
