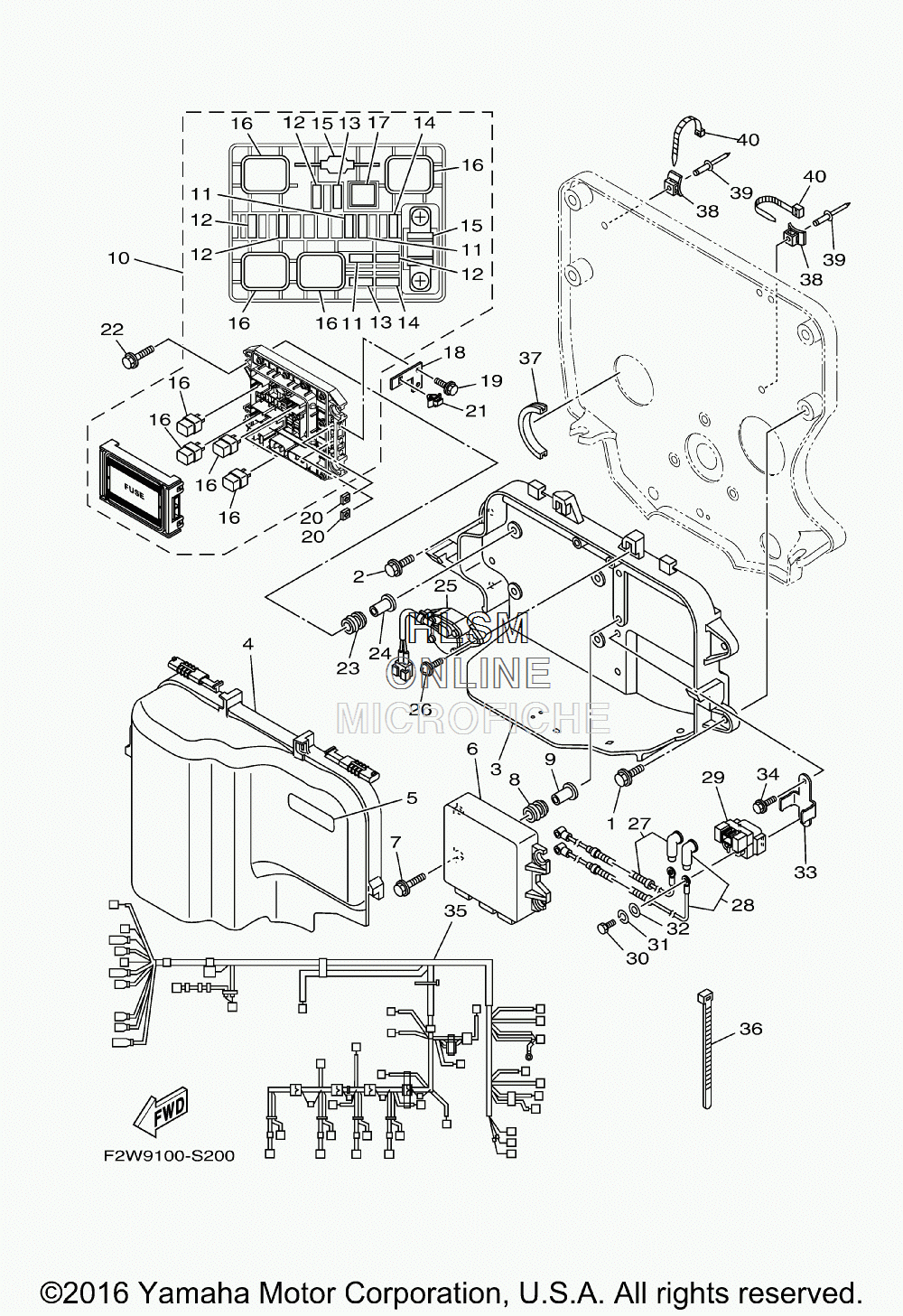

ELECTRICAL 1 для Yamaha WAVERUNNER VXR [VX1800AS] - 2017 года выпуска`
-
№АртикулНазвание
-
190119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
290119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
36CS-81845-00-00 PLATEPLATE
-
46S5-81942-11-00 COVERCOVER
-
560E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
66EW-8591A-02-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
790119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
86A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
990387-06119-00 COLLARCOLLAR
-
106EX-82170-01-00 FUSE BOX ASSYFUSE BOX ASSY
-
1167F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
1267F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
1367F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
1467F-82151-10-00 ...FUSE (30A)...FUSE (30A)
-
156EX-82151-00-00 ...FUSE (50A)...FUSE (50A)
-
166EX-8195A-00-00 ...RELAY ASSY...RELAY ASSY
-
176EX-2812A-00-00 ...PULLER, FUSE...PULLER, FUSE
-
186CS-82588-00-00 PLATEPLATE
-
1997595-06514-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090173-06015-00 NUT, SQUARENUT, SQUARE
-
2190464-09M47-00 CLAMPCLAMP
-
2290119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
236A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
2490387-06119-00 COLLARCOLLAR
-
256S5-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
2697780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
276CS-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
286CS-82117-00-00 WIRE, LEADWIRE, LEAD
-
291B7-81940-00-00 STARTER RELAY ASSY (2768102-A)STARTER RELAY ASSY (2768102-A)
-
3097095-06012-00 BOLTBOLT
-
3192995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3292995-06600-00 WASHERWASHER
-
336CS-81953-00-00 STAY, RELAYSTAY, RELAY
-
3495814-06012-00 BOLT, FLANGEBOLT, FLANGE
-
356EW-8259L-00-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
3690465-14M66-00 CLAMPCLAMP
-
37F1S-U828H-01-00 TRIM, 1TRIM, 1
-
38F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3990267-48802-00 RIVET, BLINDRIVET, BLIND
-
4090464-32801-00 CLAMPCLAMP
