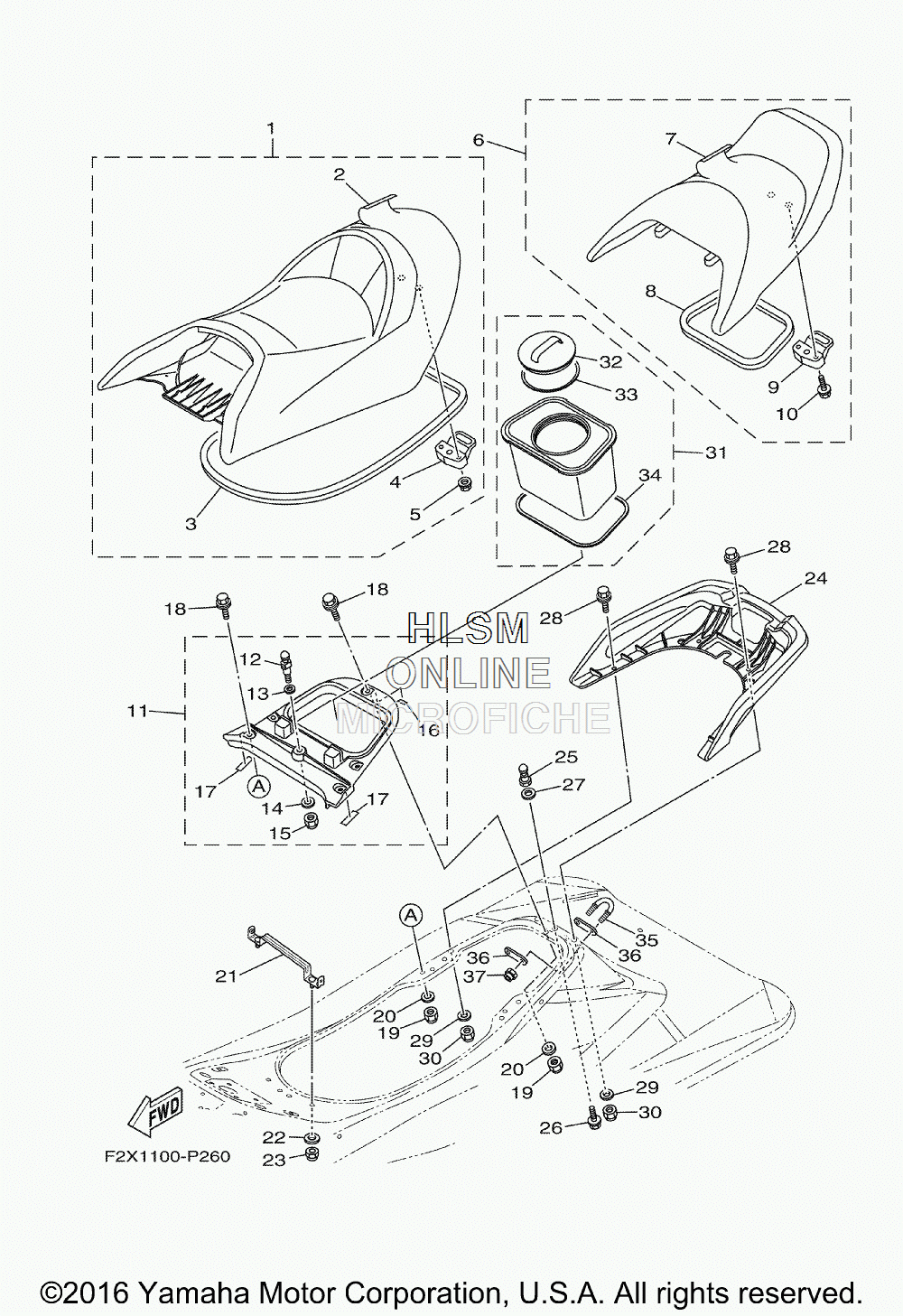

SEAT W/ UNDER LOCKER для Yamaha WAVERUNNER VX DELUXE [VX1050BS] - 2017 года выпуска`
-
№АртикулНазвание
-
1F2X-U371A-10-00 DOUBLE SEAT ASSY (DELUXE) (FOR BLACK)DOUBLE SEAT ASSY (DELUXE) (FOR BLACK)
-
1F2X-U371A-80-00 DOUBLE SEAT ASSY (FOR CRUISER)DOUBLE SEAT ASSY (FOR CRUISER)
-
1F2X-U371A-90-00 DOUBLE SEAT ASSY (DELUXE) (FOR BLUE)DOUBLE SEAT ASSY (DELUXE) (FOR BLUE)
-
2F2X-U371B-10-00 ...COVER, SEAT 1 (DELUXE) (FOR BLACK)...COVER, SEAT 1 (DELUXE) (FOR BLACK)
-
2F2X-U371B-80-00 ...COVER, SEAT 1 (FOR CRUISER)...COVER, SEAT 1 (FOR CRUISER)
-
2F2X-U371B-90-00 ...COVER, SEAT 1 (DELUXE) (FOR BLUE)...COVER, SEAT 1 (DELUXE) (FOR BLUE)
-
3F1W-U2664-01-00 ...PACKING...PACKING
-
4F2C-U3850-00-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F2X-U372A-10-00 SINGLE SEAT ASSY (DELUXE) (FOR BLACK)SINGLE SEAT ASSY (DELUXE) (FOR BLACK)
-
6F2X-U372A-90-00 SINGLE SEAT ASSY (DELUXE) (FOR BLUE)SINGLE SEAT ASSY (DELUXE) (FOR BLUE)
-
6F2X-U372A-80-00 SINGLE SEAT ASSY (FOR CRUISER)SINGLE SEAT ASSY (FOR CRUISER)
-
7F2X-U372B-90-00 ...COVER, SEAT (DELUXE) (FOR BLUE)...COVER, SEAT (DELUXE) (FOR BLUE)
-
7F2X-U372B-10-00 ...COVER, SEAT (DELUXE) (FOR BLACK)...COVER, SEAT (DELUXE) (FOR BLACK)
-
7F2X-U372B-80-00 ...COVER, SEAT (FOR CRUISER)...COVER, SEAT (FOR CRUISER)
-
8F2C-U266D-01-00 ...PACKING 5...PACKING 5
-
9F1B-U3850-02-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
1090119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
11F2S-U890L-04-00 DECK BEAM ASSYDECK BEAM ASSY
-
12GH1-U3774-00-00 ...PIN...PIN
-
1390201-109U6-00 ...WASHER, PLATE...WASHER, PLATE
-
149299R-10200-00 ...WASHER...WASHER
-
159572R-10300-00 ...NUT, NYLON...NUT, NYLON
-
16F2S-U375E-00-00 ...PACKING 1...PACKING 1
-
17F2S-U8244-00-00 ...PACKING...PACKING
-
1890119-08828-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
199572R-08300-00 NUT, FLANGENUT, FLANGE
-
209299R-08200-00 WASHERWASHER
-
21F2X-U378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
2290201-099U3-00 WASHER, PLATEWASHER, PLATE
-
239572R-08300-00 NUT, FLANGENUT, FLANGE
-
24F2X-U271B-00-00 GRIP, HAND (DELUXE) (FOR BLACK)GRIP, HAND (DELUXE) (FOR BLACK)
-
24F2X-U271B-10-00 GRIP, HAND (DELUXE) (FOR BLUE)GRIP, HAND (DELUXE) (FOR BLUE)
-
24F2X-U271B-10-00 GRIP, HAND (FOR CRUISER)GRIP, HAND (FOR CRUISER)
-
25F1K-U3774-00-00 PINPIN
-
2690119-10804-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
279299R-10200-00 WASHERWASHER
-
2890119-08828-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
299299R-08200-00 WASHERWASHER
-
309572R-08300-00 NUT, FLANGENUT, FLANGE
-
31F2X-U591A-01-00 CASE ASSY 1CASE ASSY 1
-
32F2C-U591C-00-00 ...CAP,CASE...CAP,CASE
-
33F2C-U591D-01-00 ...PACKING,CASE...PACKING,CASE
-
34F2C-U266E-00-00 ...PACKING,6...PACKING,6
-
35F2N-U1628-02-00 STERN EYESTERN EYE
-
36GP7-U4953-10-00 PLATE APLATE A
-
379572R-08300-00 NUT, FLANGENUT, FLANGE
