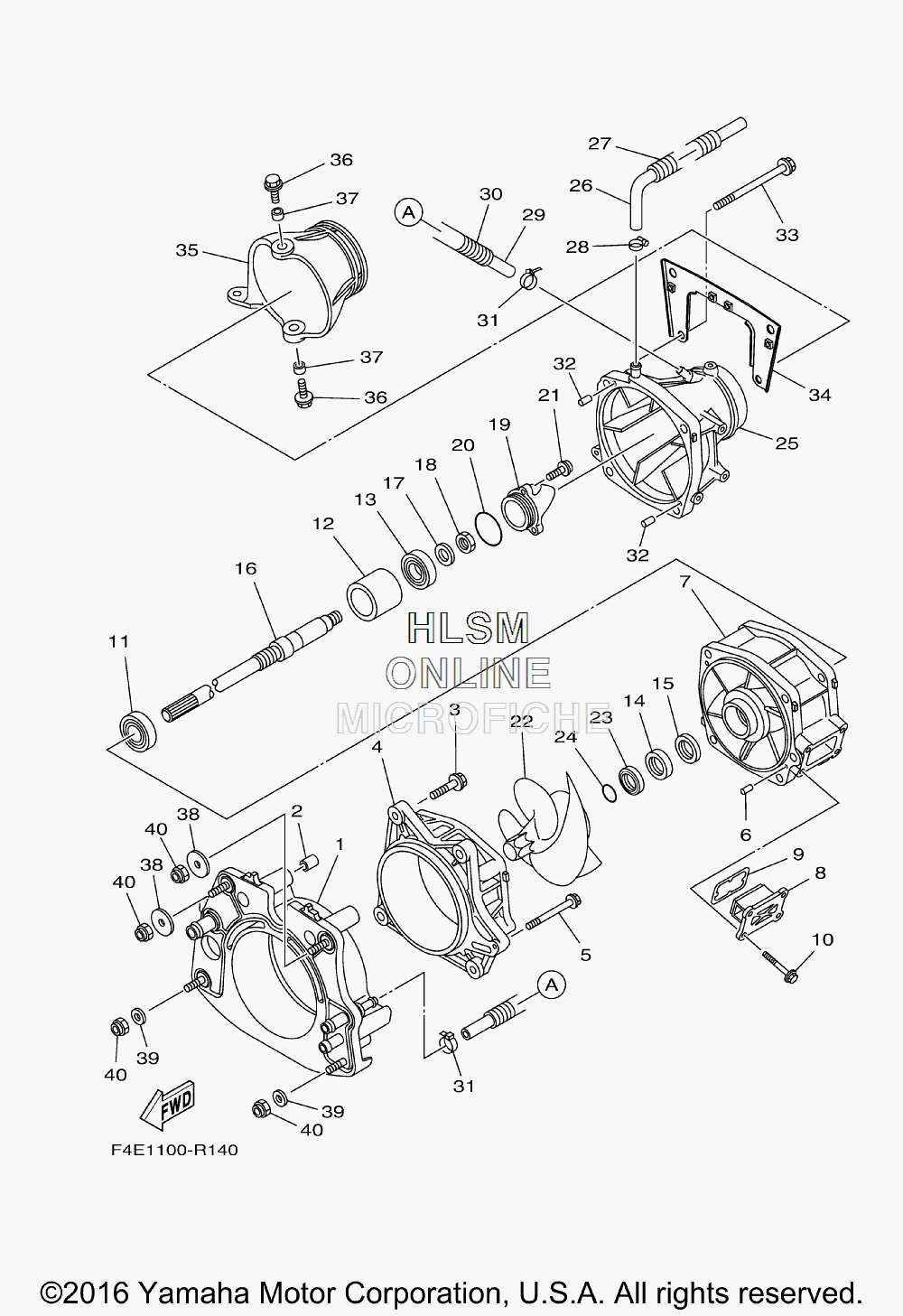

PROPULSION SYSTEM - EXTERNAL для Yamaha WAVERUNNER VX CRUISER HO [VC1800S] - 2017 года выпуска`
-
№АртикулНазвание
-
16CS-G5831-10-00 PLATE, TRANSOMPLATE, TRANSOM
-
299590-14016-00 PIN, DOWELPIN, DOWEL
-
390119-10810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
466V-51312-01-00 HOUSING, IMPELLERHOUSING, IMPELLER
-
590119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
693606-12019-00 PIN, DOWELPIN, DOWEL
-
76S5-51315-02-00 DUCT, IMPELLERDUCT, IMPELLER
-
86EX-G6882-00-00 FILTERFILTER
-
966V-42414-00-00 O-RINGO-RING
-
1090119-06889-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1193306-20654-00 BEARINGBEARING
-
126CS-G5538-00-00 SPACER 1SPACER 1
-
1393306-30537-00 BEARINGBEARING
-
1493102-31009-00 OIL SEALOIL SEAL
-
1593101-31001-00 OIL SEALOIL SEAL
-
166S5-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
179290P-20600-00 WASHERWASHER
-
1890170-20802-00 NUTNUT
-
196AN-R1326-00-00 CAPCAP
-
2093210-54010-00 O-RINGO-RING
-
2190110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
226AP-R1321-20-00 IMPELLERIMPELLER
-
236BH-51348-01-00 SPACERSPACER
-
2493210-30611-00 O-RINGO-RING
-
256EX-R1318-01-00 NOZZLENOZZLE
-
266CN-U72M2-00-00 HOSE 1HOSE 1
-
276ET-U773D-00-00 TUBETUBE
-
2890601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
2990445-14807-00 HOSE (L355)HOSE (L355)
-
3090446-20MF5-00 HOSE (L320)HOSE (L320)
-
3190465-11829-00 CLAMPCLAMP
-
3293606-12019-00 PIN, DOWELPIN, DOWEL
-
3390119-10806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
346EX-R1341-00-00 BRACKET 1BRACKET 1
-
356EX-R1313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3690119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3790387-08M06-00 COLLARCOLLAR
-
38F1S-U725E-01-00 WASHERWASHER
-
3990201-10801-00 WASHER, PLATEWASHER, PLATE
-
409572R-10300-00 NUT, NYLONNUT, NYLON
