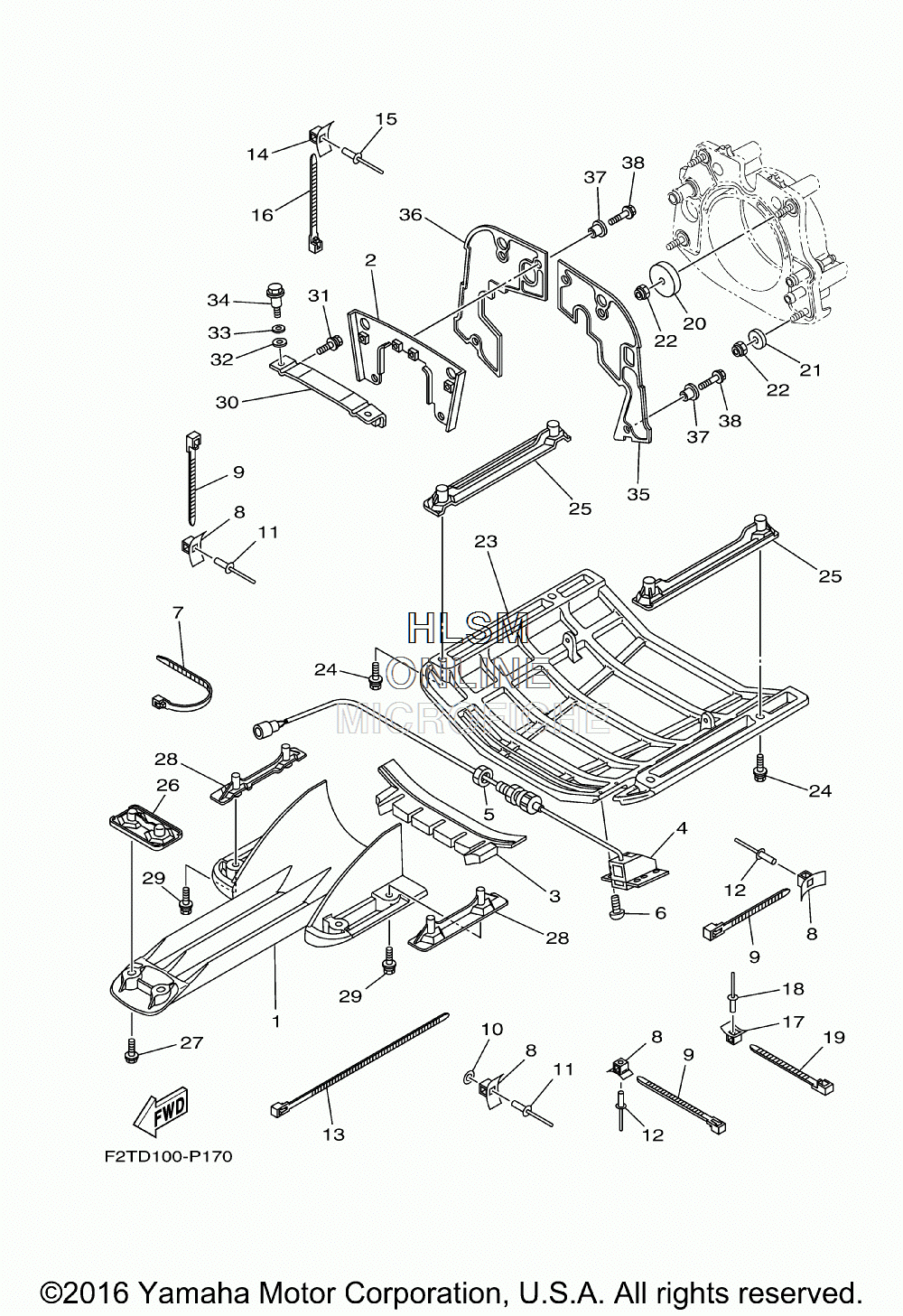

INTAKE AND RIDE PLATE ASSY для Yamaha WAVERUNNER FX CRUISER HO [FB1800AS] - 2017 года выпуска`
-
№АртикулНазвание
-
16CS-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
26AN-R1341-01-00 BRACKET 1BRACKET 1
-
3F2S-U72C0-01-00 SPACERSPACER
-
4F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
5F2C-U151S-00-00 NUTNUT
-
690150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
790464-32801-00 CLAMPCLAMP
-
8F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
990464-32801-00 CLAMPCLAMP
-
109299R-05200-00 WASHERWASHER
-
1190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1390464-99801-00 CLAMPCLAMP
-
14F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1690464-32801-00 CLAMPCLAMP
-
17F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1990464-32801-00 CLAMPCLAMP
-
20F1S-U725E-01-00 WASHERWASHER
-
2190201-10801-00 WASHER, PLATEWASHER, PLATE
-
229572R-10300-00 NUT, NYLONNUT, NYLON
-
23F2S-6273B-00-00 PLATE 2PLATE 2
-
2490119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
25F1B-U8572-01-00 BRACKET 2BRACKET 2
-
26F2S-U8577-00-00 BRACKET, 3BRACKET, 3
-
2790119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
28F1G-U8571-02-00 BRACKET 1BRACKET 1
-
2990119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F2C-U7557-01-00 BRACKETBRACKET
-
3190119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290430-12002-00 GASKETGASKET
-
3392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
3490109-08041-00 BOLTBOLT
-
35F3J-U757E-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
36F3J-U757F-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
3790387-06080-00 COLLARCOLLAR
-
3890119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
