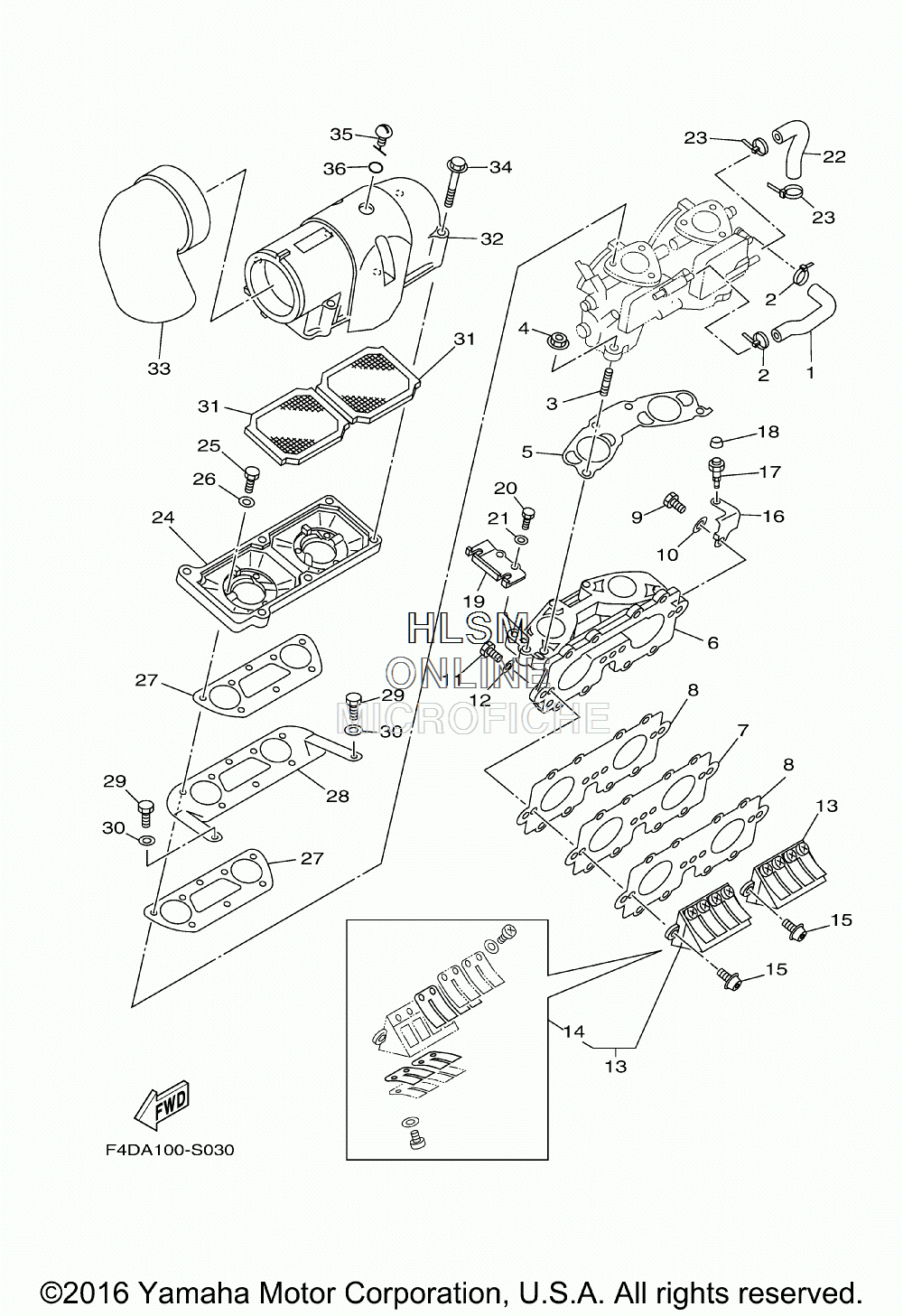

AIR SILENCER W/ INTAKE для Yamaha SUPER JET [SJ700BS] - 2017 года выпуска`
-
№АртикулНазвание
-
16BA-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
290464-36005-00 CLAMPCLAMP
-
390116-08M60-00 BOLT, STUDBOLT, STUD
-
490179-08M15-00 NUTNUT
-
562T-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
662T-13555-00-94 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
762T-13624-00-00 PLATE,REED VALVEPLATE,REED VALVE
-
862T-13566-00-00 GASKETGASKET
-
997013-06035-00 BOLTBOLT
-
1092903-06600-00 WASHER, PLATEWASHER, PLATE
-
1197013-06025-00 BOLTBOLT
-
1292903-06600-00 WASHER, PLATEWASHER, PLATE
-
1362T-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
1462T-W0004-00-00 ...REED SET...REED SET
-
1590111-05037-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1662T-14243-01-00 PLATEPLATE
-
1761L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
18663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
1962T-14527-02-00 PLATEPLATE
-
2097013-06016-00 BOLTBOLT
-
2192903-06600-00 WASHER, PLATEWASHER, PLATE
-
2262T-24314-01-00 PIPE 4PIPE 4
-
2390464-36005-00 CLAMPCLAMP
-
2462T-14284-10-8S COVER, CARBURETOR 2COVER, CARBURETOR 2
-
2597013-06020-00 BOLTBOLT
-
2692903-06600-00 WASHER, PLATEWASHER, PLATE
-
2762T-13674-00-00 GASKET, AIR COOLER COVER 1GASKET, AIR COOLER COVER 1
-
2862T-14255-00-00 PLATEPLATE
-
2997013-06012-00 BOLTBOLT
-
3092903-06600-00 WASHER, PLATEWASHER, PLATE
-
3162T-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
3262T-14283-01-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
-
3362T-14419-00-00 PIPEPIPE
-
3490119-05M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3562T-14435-00-00 GROMMETGROMMET
-
3693210-13M63-00 O-RINGO-RING
