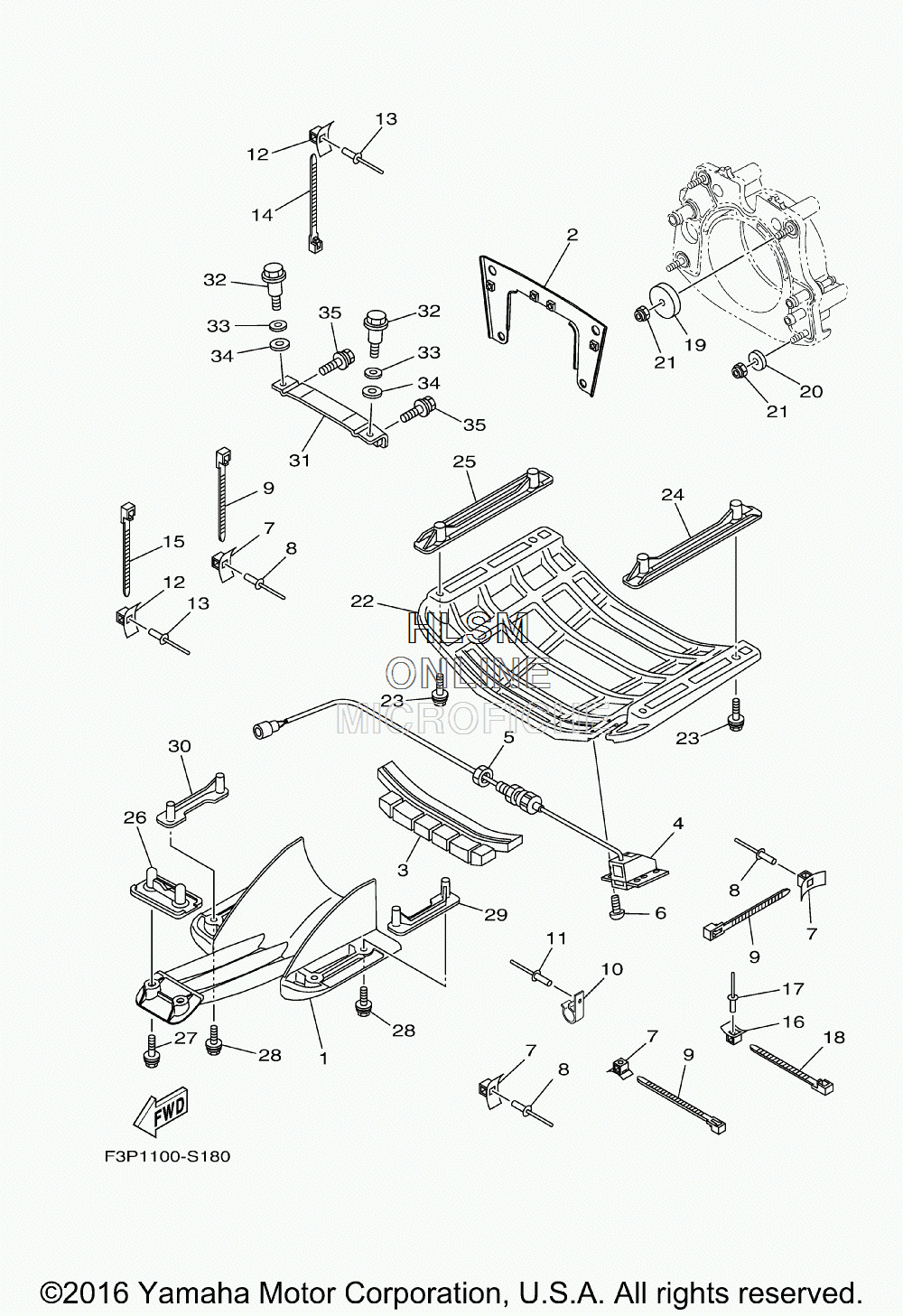

INTAKE AND RIDE PLATE ASSY для Yamaha GP1800S [GP1800S] - 2017 года выпуска
-
№АртикулНазвание
-
16EX-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
26EX-R1341-00-00 BRACKET 1BRACKET 1
-
3F2X-U72C0-00-00 SPACERSPACER
-
4F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
5F2C-U151S-00-00 NUTNUT
-
690150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
7F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
990464-32801-00 CLAMPCLAMP
-
10F3J-U8368-01-00 CLAMPCLAMP
-
1190267-409U5-00 RIVET, BLINDRIVET, BLIND
-
12F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1490464-32801-00 CLAMPCLAMP
-
1590601-200U2-00 BANDBAND
-
16F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1890601-200U2-00 BANDBAND
-
19F1S-U725E-01-00 WASHERWASHER
-
2090201-10801-00 WASHER, PLATEWASHER, PLATE
-
219572R-10300-00 NUT, NYLONNUT, NYLON
-
22F2W-U273B-00-00 PLATE 2PLATE 2
-
2390119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24F2X-U8572-00-00 BRACKET 2BRACKET 2
-
25F2X-U8572-00-00 BRACKET 2BRACKET 2
-
26F2S-U8577-00-00 BRACKET, 3BRACKET, 3
-
2790119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2890119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
29F2X-U8571-00-00 BRACKET 1BRACKET 1
-
30F2X-U8571-00-00 BRACKET 1BRACKET 1
-
31F2C-U7557-01-00 BRACKETBRACKET
-
3290109-08041-00 BOLTBOLT
-
3392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
3490430-12002-00 GASKETGASKET
-
3590119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
