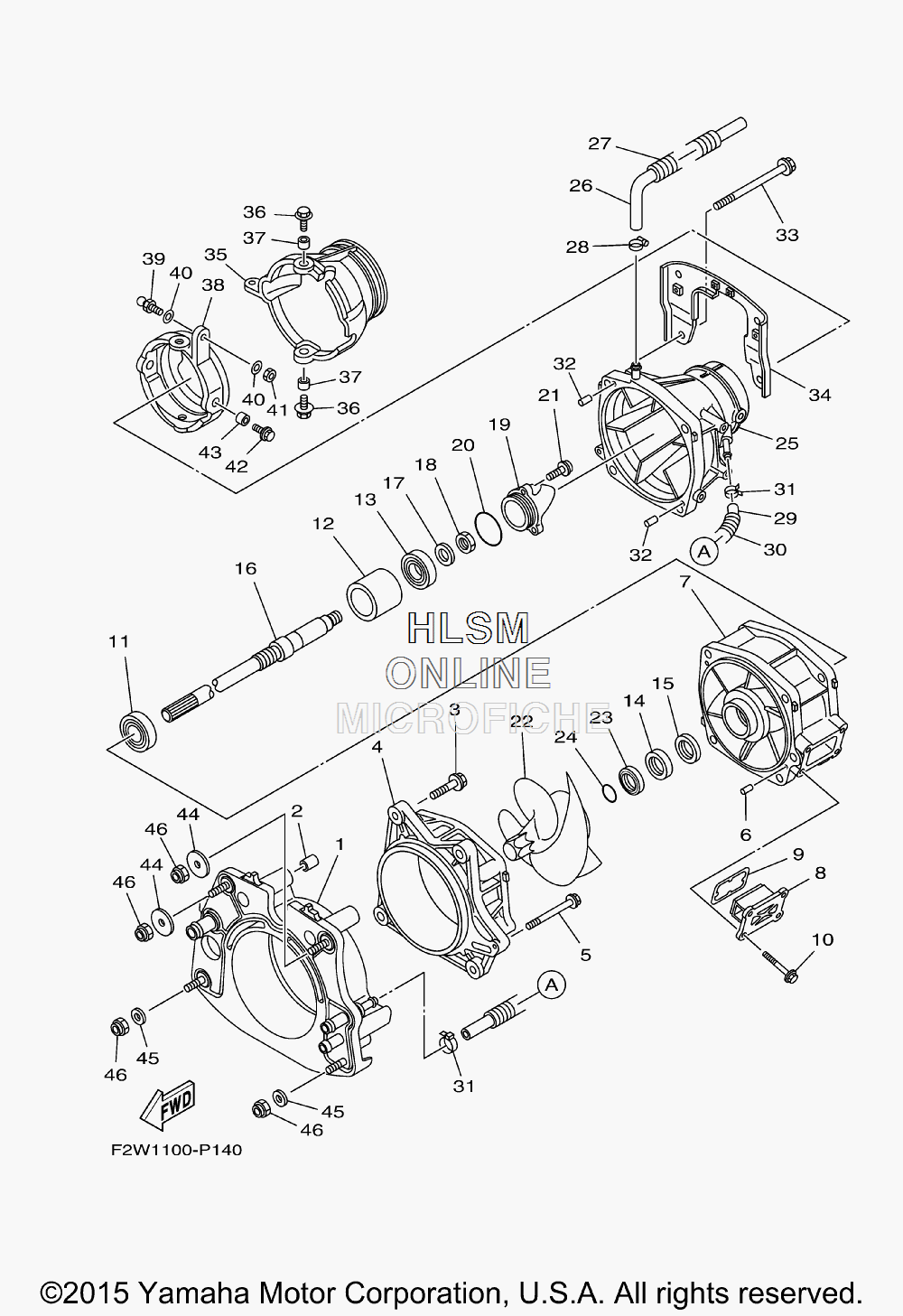

PROPULSION SYSTEM - EXTERNAL для Yamaha VXR [VX1800AR] - 2016 года выпуска`
-
№АртикулНазвание
-
16CS-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
299590-14016-00 PIN, DOWELPIN, DOWEL
-
390119-10810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
466V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
590119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
693606-12019-00 PIN, DOWELPIN, DOWEL
-
76S5-51315-02-00 DUCT, IMPELLERDUCT, IMPELLER
-
86EX-G6882-00-00 FILTERFILTER
-
966V-42414-00-00 O-RINGO-RING
-
1090119-06889-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1193306-20654-00 BEARINGBEARING
-
126CS-G5538-00-00 SPACER 1SPACER 1
-
1393306-30537-00 BEARINGBEARING
-
1493102-31009-00 OIL SEALOIL SEAL
-
1593101-31001-00 OIL SEALOIL SEAL
-
166S5-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
179290P-20600-00 WASHERWASHER
-
1890170-20802-00 NUTNUT
-
196AN-R1326-00-00 CAPCAP
-
2093210-54010-00 O-RINGO-RING
-
2190110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
226AP-R1321-20-00 IMPELLERIMPELLER
-
236BH-51348-01-00 SPACERSPACER
-
2493210-30611-00 O-RINGO-RING
-
256BH-R1318-01-00 NOZZLENOZZLE
-
266CN-U72M2-00-00 HOSE 1HOSE 1
-
276ET-U773D-00-00 TUBETUBE
-
2890601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
296ET-U215E-00-00 HOSEHOSE
-
306CN-U773D-00-00 TUBETUBE
-
3190467-14803-00 CLIPCLIP
-
3293606-12019-00 PIN, DOWELPIN, DOWEL
-
3390119-10806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
346EX-R1341-00-00 BRACKET 1BRACKET 1
-
356S5-R1313-01-94 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3690119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3790387-08M06-00 COLLARCOLLAR
-
386AN-R1190-00-94 RING,TRIMRING,TRIM
-
39GH3-U146E-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
4090201-068M4-00 WASHER, PLATEWASHER, PLATE
-
419538R-06700-00 NUTNUT
-
4290119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4390387-08M06-00 COLLARCOLLAR
-
44F1S-U725E-01-00 WASHERWASHER
-
4590201-10801-00 WASHER, PLATEWASHER, PLATE
-
469572R-10300-00 NUT, NYLONNUT, NYLON
Все узлы модели:
- AIR CLEANER ASSY.
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR W/ CONTROLS
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- • PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- STEERING POLE
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
