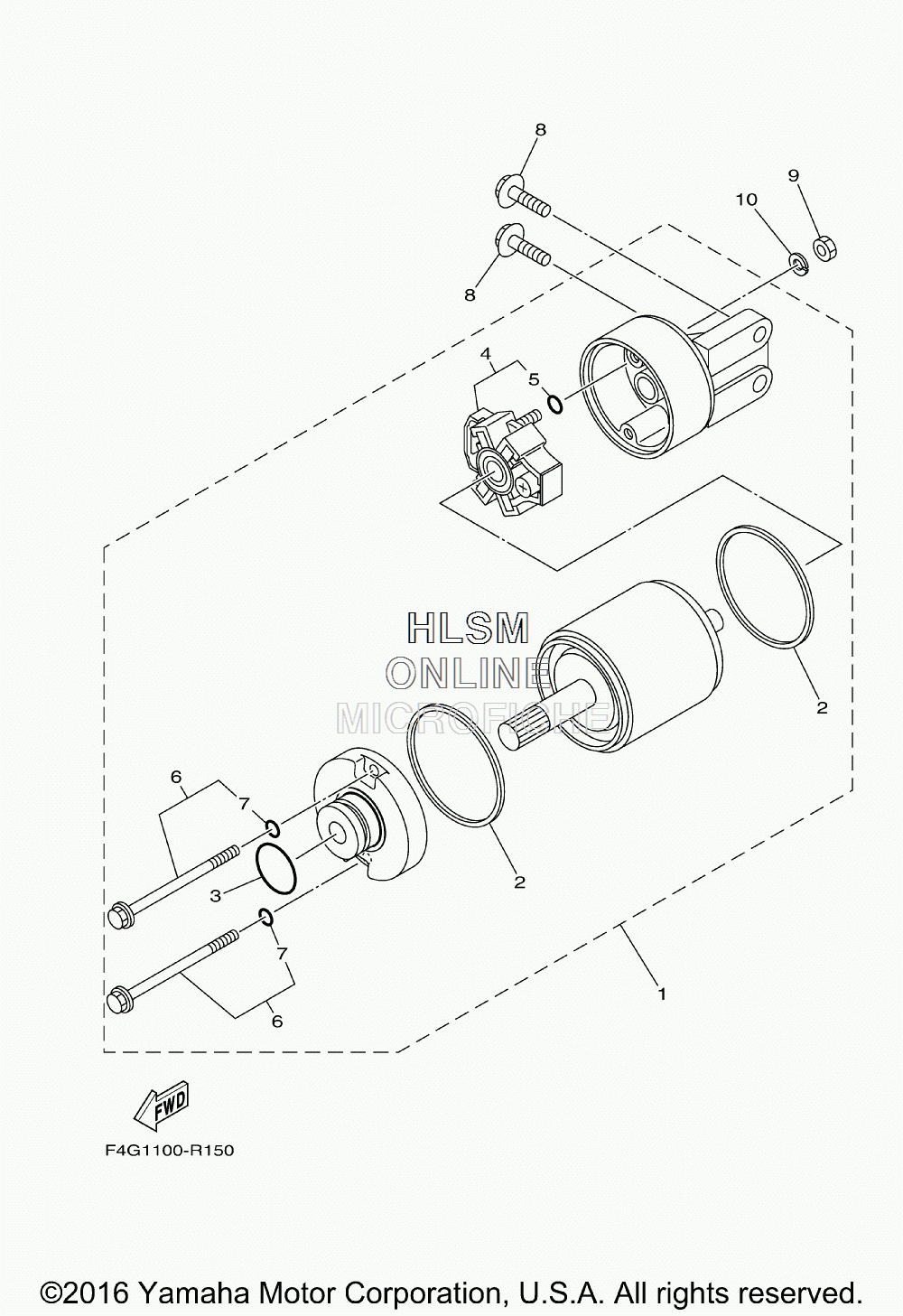

STARTING MOTOR для Yamaha VX [VX1050CR] - 2016 года выпуска`
-
№АртикулНазвание
-
16EY-81800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
211H-81844-00-00 ...GASKET...GASKET
-
31FK-81847-00-00 ...O-RING...O-RING
-
46EY-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
53TB-81847-00-00 ......O-RING......O-RING
-
66EY-81826-00-00 ...BOLT...BOLT
-
73TB-81847-00-00 ......O-RING......O-RING
-
897513-08530-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
995380-06700-00 NUTNUT
-
1092990-06100-00 WASHER, SPRINGWASHER, SPRING
