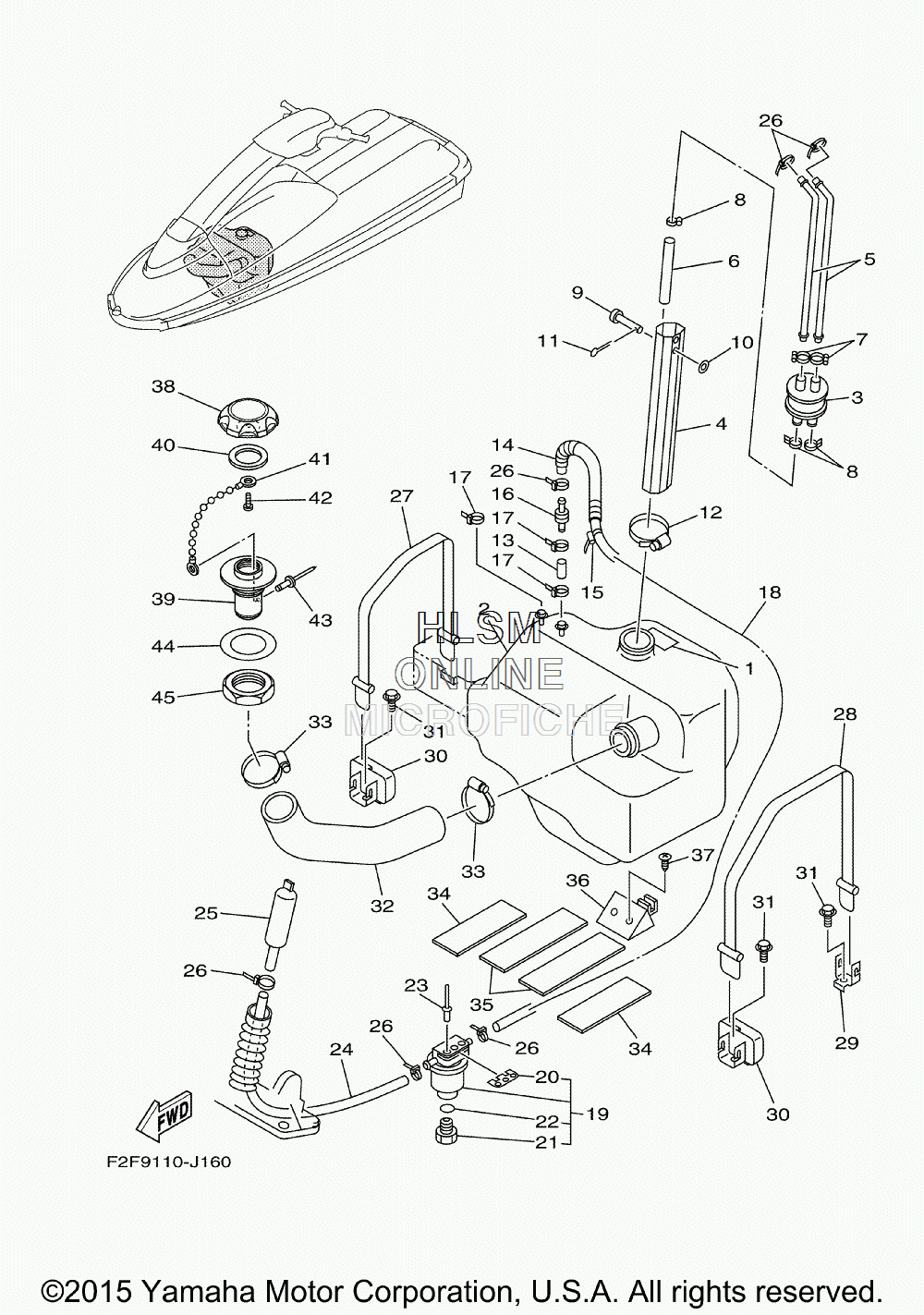

FUEL TANK для Yamaha SUPER JET [SJ700BR] - 2016 года выпуска`
-
№АртикулНазвание
-
1GM6-6418D-00-00 LABEL,FUEL TANKLABEL,FUEL TANK
-
2EW2-67711-01-00 TANK, FUELTANK, FUEL
-
3FJ0-67713-00-00 PIPE, JOINTPIPE, JOINT
-
4EW2-67716-02-00 PIPE, FILLERPIPE, FILLER
-
5EW2-67714-02-00 PIPE, SUCTION 3PIPE, SUCTION 3
-
690445-11055-00 HOSE (L95)HOSE (L95)
-
790601-11062-00 BAND, HOSE 11BAND, HOSE 11
-
890467-11032-00 CLIPCLIP
-
991790-05040-00 PIN, CLEVISPIN, CLEVIS
-
1092990-05600-00 WASHER, PLATEWASHER, PLATE
-
1191490-16010-00 PIN. COTTERPIN. COTTER
-
1290601-16274-00 BAND, HOSE 62BAND, HOSE 62
-
1390699-50003-00 HOSEHOSE
-
1490446-14M30-00 HOSE (L120)HOSE (L120)
-
1590465-13M11-00 CLAMPCLAMP
-
16EU0-67767-31-00 CHECK VALVECHECK VALVE
-
1790464-36005-00 CLAMPCLAMP
-
1890699-50120-00 HOSEHOSE
-
19F2F-6214A-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
20EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
2170R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2270R-24489-00-00 ...O-RING...O-RING
-
2390267-48925-00 RIVET, BLINDRIVET, BLIND
-
2490699-50045-00 HOSEHOSE
-
25EW2-62150-00-00 PIPE,VENTILATION 3PIPE,VENTILATION 3
-
2690465-11M10-00 CLAMPCLAMP
-
27EW2-67821-00-00 BAND, FUEL TANKBAND, FUEL TANK
-
28EW2-67821-30-00 BAND, FUEL TANKBAND, FUEL TANK
-
29EW2-65772-00-00 HOOK AHOOK A
-
30FX1-65760-00-00 HOOK B ASSYHOOK B ASSY
-
3190105-06900-00 BOLT WASHER BASEDBOLT WASHER BASED
-
32GM6-67844-20-00 HOSEHOSE
-
3390601-15573-00 BAND, HOSE 55BAND, HOSE 55
-
34GM6-67593-00-00 MATMAT
-
35F2F-6759B-00-00 MAT 1MAT 1
-
36EW2-67822-01-00 DAMPER FUEL TANKDAMPER FUEL TANK
-
3797780-50114-00 SCREW, PAN HEAD TAPPINGSCREW, PAN HEAD TAPPING
-
38F2N-U7831-10-00 CAP, FUEL FILLER (BLACK)CAP, FUEL FILLER (BLACK)
-
39GP7-U7833-11-00 SOCKET (BLACK)SOCKET (BLACK)
-
40GP7-U7832-01-00 PACKINGPACKING
-
41GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
4290169-049U1-00 TAPPING SCREWTAPPING SCREW
-
4390267-329UR-00 RIVET, BLINDRIVET, BLIND
-
44GP7-U7834-00-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
45GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
