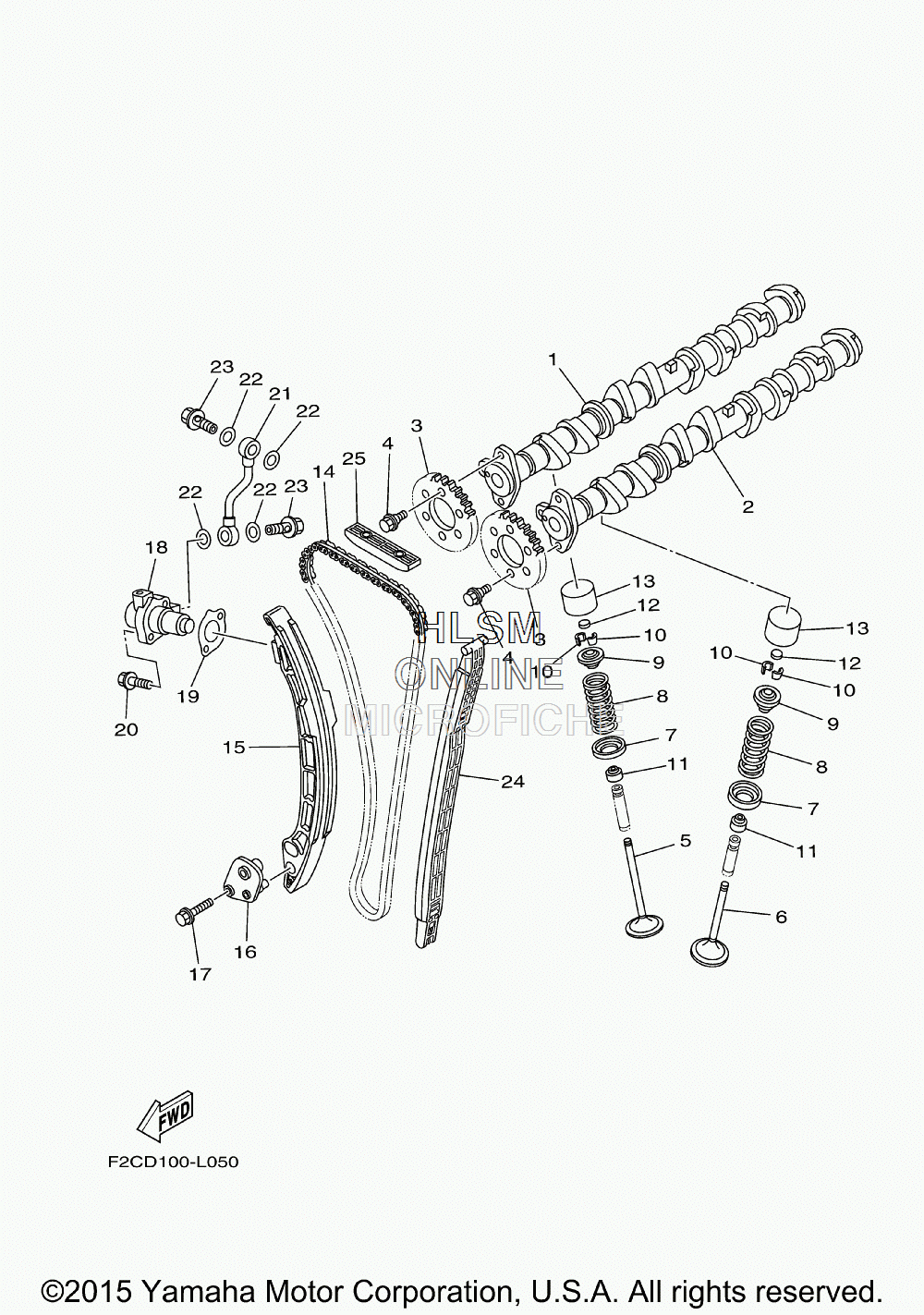

VALVE W/ CAM SHAFTS AND CHAIN для Yamaha FZS [GX1800AR] - 2016 года выпуска`
-
№АртикулНазвание
-
16S5-12171-10-00 CAMSHAFT 1CAMSHAFT 1
-
26ET-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
36ET-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
56S5-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
66S5-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
76S5-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
86S5-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
96S5-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
103LD-12118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
1151Y-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
123LD-12168-F0-00 PAD, ADJUSTING (1.50) (OPT)PAD, ADJUSTING (1.50) (OPT)
-
123LD-12169-90-00 PAD, ADJUSTING (2.10) (OPT)PAD, ADJUSTING (2.10) (OPT)
-
123LD-12169-E0-00 PAD, ADJUSTING (2.15) (OPT)PAD, ADJUSTING (2.15) (OPT)
-
123LD-12169-G0-00 PAD, ADJUSTING (2.20) (OPT)PAD, ADJUSTING (2.20) (OPT)
-
123LD-12169-J0-00 PAD, ADJUSTING (2.25) (OPT)PAD, ADJUSTING (2.25) (OPT)
-
123LD-12169-L0-00 PAD, ADJUSTING (2.30) (OPT)PAD, ADJUSTING (2.30) (OPT)
-
123LD-12168-H1-00 PAD, ADJUSTING (1.55) (OPT)PAD, ADJUSTING (1.55) (OPT)
-
123LD-12168-K1-00 PAD, ADJUSTING (1.60) (OPT)PAD, ADJUSTING (1.60) (OPT)
-
123LD-12168-M1-00 PAD, ADJUSTING (1.65) (OPT)PAD, ADJUSTING (1.65) (OPT)
-
123LD-12168-R1-00 PAD, ADJUSTING (1.70) (OPT)PAD, ADJUSTING (1.70) (OPT)
-
123LD-12168-U1-00 PAD, ADJUSTING (1.75) (OPT)PAD, ADJUSTING (1.75) (OPT)
-
123LD-12168-W1-00 PAD, ADJUSTING (1.80) (OPT)PAD, ADJUSTING (1.80) (OPT)
-
123LD-12168-Y1-00 PAD, ADJUSTING (1.85) (OPT)PAD, ADJUSTING (1.85) (OPT)
-
123LD-12169-11-00 PAD, ADJUSTING (1.90) (OPT)PAD, ADJUSTING (1.90) (OPT)
-
123LD-12169-31-00 PAD, ADJUSTING (1.95) (OPT)PAD, ADJUSTING (1.95) (OPT)
-
123LD-12169-50-00 PAD, ADJUSTING (2.00) (OPT)PAD, ADJUSTING (2.00) (OPT)
-
123LD-12169-70-00 PAD, ADJUSTING (2.05) (OPT)PAD, ADJUSTING (2.05) (OPT)
-
123LD-12168-00-00 PAD, ADJUSTING (1.20) (OPT)PAD, ADJUSTING (1.20) (OPT)
-
123LD-12168-20-00 PAD, ADJUSTING (1.25) (OPT)PAD, ADJUSTING (1.25) (OPT)
-
123LD-12168-40-00 PAD, ADJUSTING (1.30) (OPT)PAD, ADJUSTING (1.30) (OPT)
-
123LD-12168-60-00 PAD, ADJUSTING (1.35) (OPT)PAD, ADJUSTING (1.35) (OPT)
-
123LD-12168-80-00 PAD, ADJUSTING (1.40) (OPT)PAD, ADJUSTING (1.40) (OPT)
-
123LD-12168-A0-00 PAD, ADJUSTING (1.45) (OPT)PAD, ADJUSTING (1.45) (OPT)
-
136S5-12153-00-00 LIFTER, VALVELIFTER, VALVE
-
1494591-74152-00 CHAINCHAIN
-
156ET-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
166BH-12279-00-00 PLATEPLATE
-
1795814-06030-00 BOLT, FLANGEBOLT, FLANGE
-
186S5-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
196S5-121E2-00-00 GASKETGASKET
-
2091380-06025-00 BOLTBOLT
-
216S5-13418-00-00 PIPE, OIL 2PIPE, OIL 2
-
2290430-10007-00 GASKETGASKET
-
2390401-10040-00 BOLT, UNIONBOLT, UNION
-
246ET-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
256BH-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
