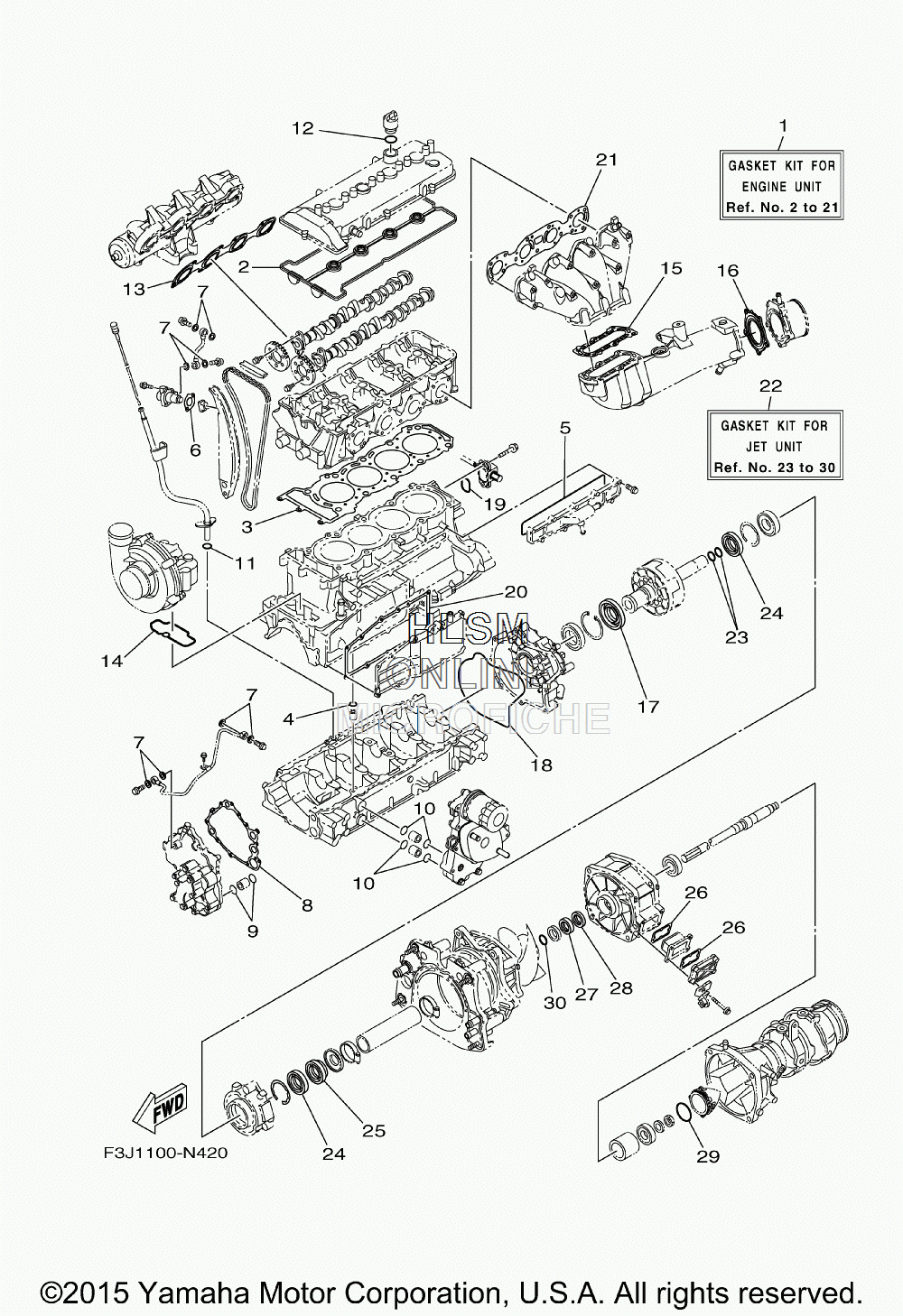

GASKET KIT - ENGINE AND JET UNIT для Yamaha FX SVHO [FC1800R] - 2016 года выпуска`
-
№АртикулНазвание
-
16ET-W0001-00-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
26BH-11193-00-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
36BH-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
493210-11453-00 ...O-RING...O-RING
-
56CS-12517-00-00 ...GASKET, WATER INLET...GASKET, WATER INLET
-
66S5-121E2-00-00 ...GASKET...GASKET
-
790430-10007-00 ...GASKET...GASKET
-
86S5-13563-00-00 ...GASKET...GASKET
-
993210-21631-00 ...O-RING...O-RING
-
1093210-18322-00 ...O-RING...O-RING
-
1193210-12016-00 ...O-RING...O-RING
-
1293210-24M79-00 ...O-RING...O-RING
-
136BH-13645-00-00 ...GASKET, MANIFOLD 1...GASKET, MANIFOLD 1
-
146S5-1416A-00-00 ...O-RING...O-RING
-
156S5-14739-00-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
166BH-14749-00-00 ...GASKET, MUFFLER DAMPER 2...GASKET, MUFFLER DAMPER 2
-
176S5-81167-10-00 ...OIL SEAL...OIL SEAL
-
186S5-81168-00-00 ...O-RING...O-RING
-
1993210-32172-00 ...O-RING...O-RING
-
206BH-13557-00-00 ...GASKET...GASKET
-
216ET-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
226S5-W0001-22-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
2393210-22MF1-00 ...O-RING...O-RING
-
2493102-29008-00 ...OIL SEAL...OIL SEAL
-
2593102-29009-00 ...OIL SEAL...OIL SEAL
-
2666V-42414-00-00 ...O-RING...O-RING
-
2793102-31009-00 ...OIL SEAL...OIL SEAL
-
2893101-31001-00 ...OIL SEAL...OIL SEAL
-
296S5-5111K-00-00 ...O-RING 1...O-RING 1
-
3093210-30611-00 ...O-RING...O-RING
