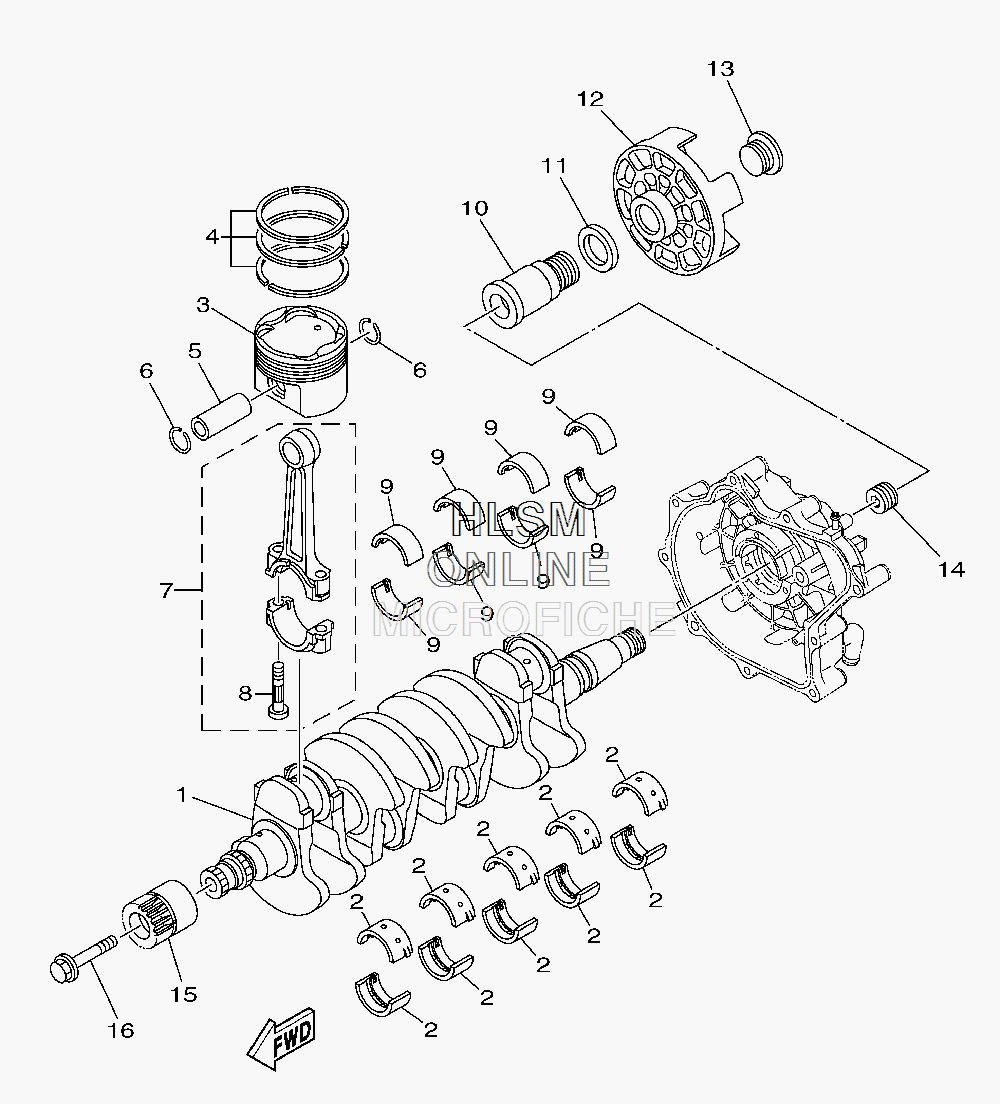

CRANKSHAFT W/ PISTON для Yamaha FX HO [FB1800R] - 2016 года выпуска`

№

Артикул

Название
1

6ET-11411-00-00 CRANKSHAFT

CRANKSHAFT

239 390 ₽
2

6S5-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)

PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)

1 880 ₽
2

6S5-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)

PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)

2 670 ₽
2

6S5-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)

PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)

2 200 ₽
2

6S5-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)

PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)

2 200 ₽
2

6S5-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)

PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)

2 200 ₽
3

6BH-11631-00-B0 PISTON (STD)

PISTON (STD)

16 690 ₽
4

6S5-11603-00-00 PISTON RING SET (STD)

PISTON RING SET (STD)

5 350 ₽
5

6S5-11633-00-00 PIN, PISTON

PIN, PISTON

5 030 ₽
6

93450-24028-00 CIRCLIP

CIRCLIP

180 ₽
7

6BH-11650-10-00 CONNECTING ROD ASSY

CONNECTING ROD ASSY

41 100 ₽
8

6S5-11654-10-00 ...BOLT, CONNECTING ROD

...BOLT, CONNECTING ROD

1 000 ₽
9

6S5-11656-60-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

2 200 ₽
9

6S5-11656-70-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

2 200 ₽
9

6S5-11656-50-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

2 200 ₽
9

6S5-11656-40-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)

PLANE BEARING, CONNECTING ROD (OPT) (BLUE)

1 360 ₽
10

6S5-17572-01-00 SHAFT, TRANSFER

SHAFT, TRANSFER

32 750 ₽
11

6S5-12289-00-00 WASHER

WASHER

5 030 ₽
12

6S5-45813-01-94 FLANGE, COUPLING

FLANGE, COUPLING

18 740 ₽
13

6S5-17525-01-00 HOLDER 2

HOLDER 2

7 550 ₽
14

6S5-11459-01-00 NUT, SPECIAL

NUT, SPECIAL

5 030 ₽
15

6BH-17586-11-00 GEAR, TRANSFER DRIVE

GEAR, TRANSFER DRIVE

18 740 ₽
16

6S5-17031-01-00 BOLT

BOLT

5 030 ₽
