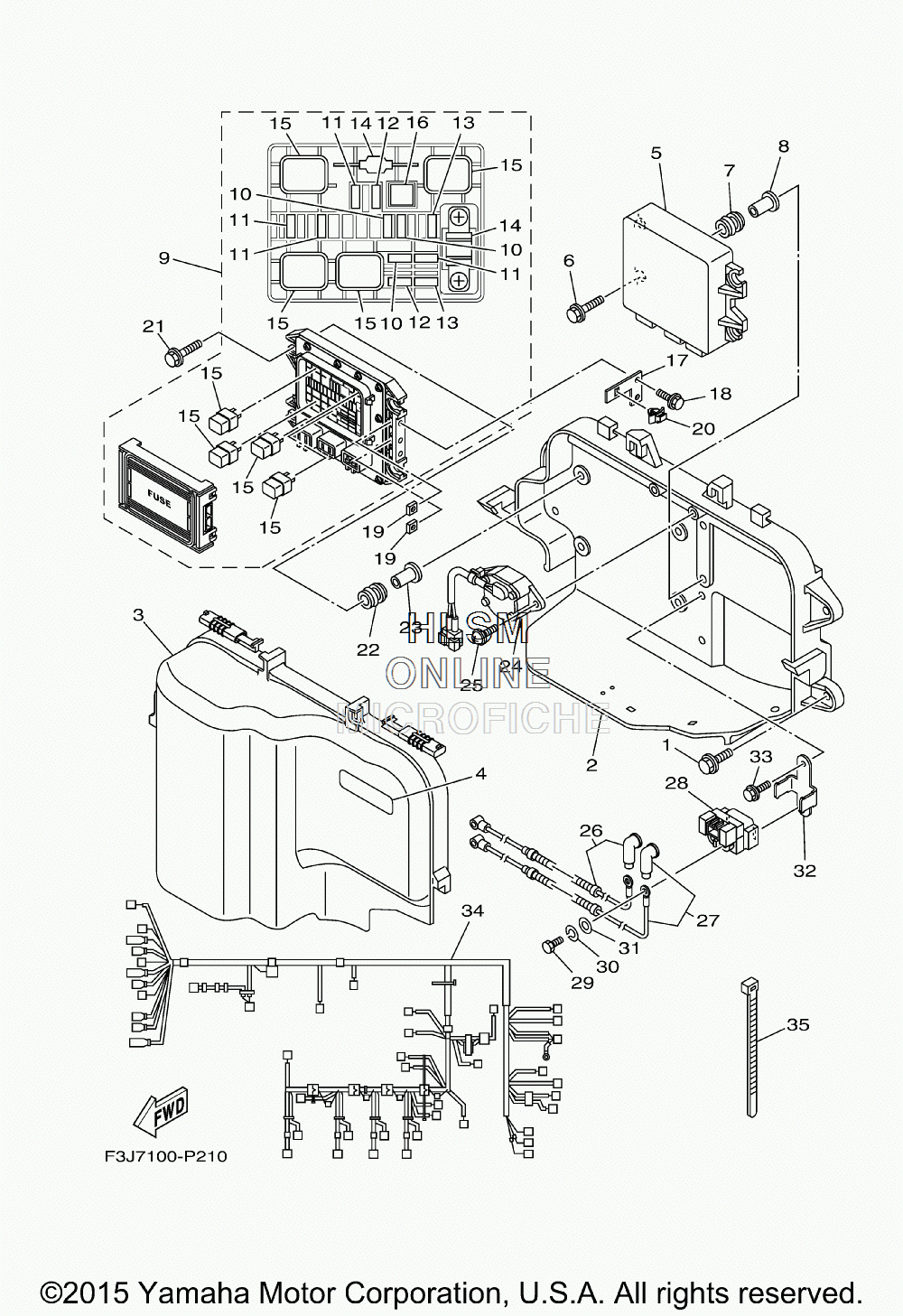

ELECTRICAL 1 для Yamaha FX CRUISER SVHO [FC1800AR] - 2016 года выпуска`
-
№АртикулНазвание
-
190119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26CS-81845-00-00 PLATEPLATE
-
36S5-81942-11-00 COVERCOVER
-
460E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
56ET-8591A-21-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
690119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
76A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
890387-06119-00 COLLARCOLLAR
-
96EX-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
1067F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
1167F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
1267F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
1367F-82151-10-00 ...FUSE (30A)...FUSE (30A)
-
146EX-82151-00-00 ...FUSE (50A)...FUSE (50A)
-
156EX-8195A-00-00 ...RELAY ASSY...RELAY ASSY
-
166EX-2812A-00-00 ...PULLER, FUSE...PULLER, FUSE
-
176CS-82588-00-00 PLATEPLATE
-
1897595-06514-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990173-06015-00 NUT, SQUARENUT, SQUARE
-
2090464-09M47-00 CLAMPCLAMP
-
2190119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
226A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
2390387-06119-00 COLLARCOLLAR
-
246S5-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
2597780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
266CS-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
276CS-82117-00-00 WIRE, LEADWIRE, LEAD
-
281B7-81940-00-00 STARTER RELAY ASSY (2768102-A)STARTER RELAY ASSY (2768102-A)
-
2997095-06012-00 BOLTBOLT
-
3092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3192995-06600-00 WASHERWASHER
-
326CS-81953-00-00 STAY, RELAYSTAY, RELAY
-
3395814-06012-00 BOLT, FLANGEBOLT, FLANGE
-
346CS-8259L-20-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
3590465-14M66-00 CLAMPCLAMP
