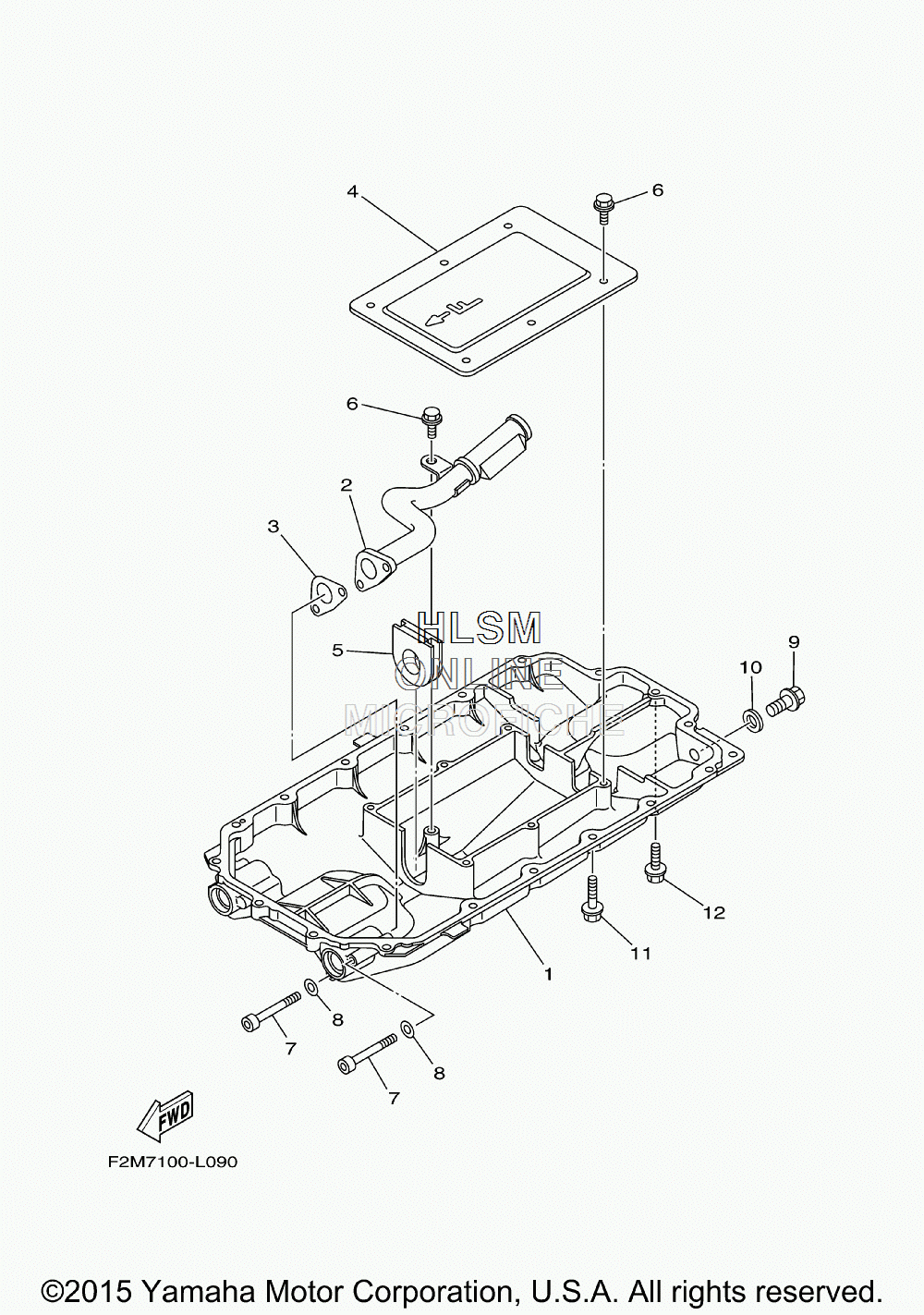

OIL PAN для Yamaha FX CRUISER HO [FB1800AR] - 2016 года выпуска`
-
№АртикулНазвание
-
16S5-1310A-24-00 PAN, OILPAN, OIL
-
26S5-13405-11-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
36S5-13477-00-00 GASKETGASKET
-
46S5-13317-10-00 PLATE, BAFFLEPLATE, BAFFLE
-
56S5-15486-10-00 GROMMETGROMMET
-
695817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
791314-06060-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890201-06028-00 WASHER, PLATEWASHER, PLATE
-
995814-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-08209-00 GASKETGASKET
-
1195024-06035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
1295024-06020-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
Все узлы модели:
- AIR CLEANER ASSY.
- BILGE PUMP
- BILGE SYSTEM
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR W/ CONTROLS
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- • OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT - REAR GRIP
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- STEERING POLE
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
