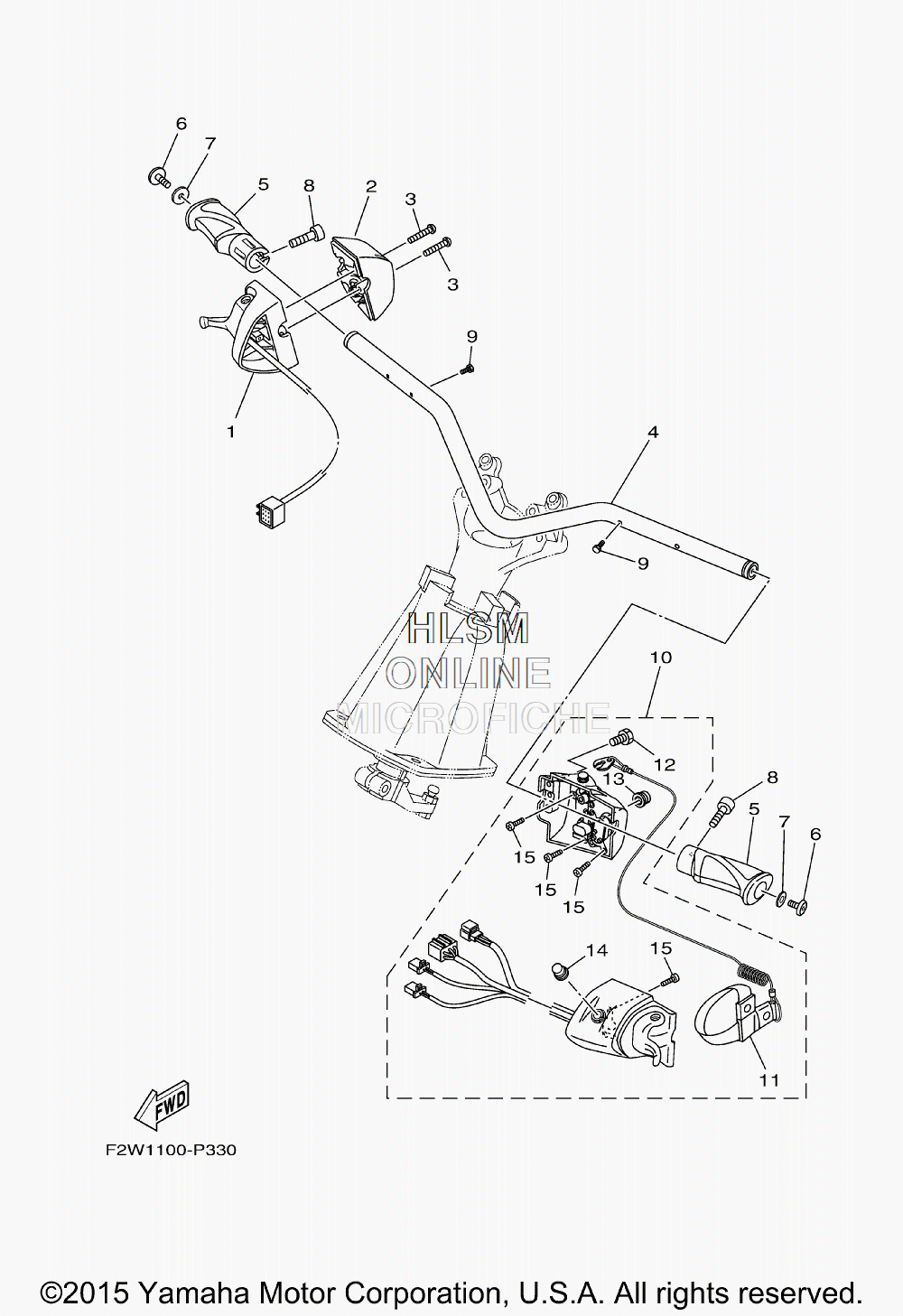

HANDLEBAR W/ CONTROLS для Yamaha VXS - 2015 года выпуска
-
№АртикулНазвание
-
16CS-14305-10-00 THROTTLE LEVER COMPTHROTTLE LEVER COMP
-
26EX-82154-00-00 CASECASE
-
36CS-6725F-00-00 BOLT, THROTTLEBOLT, THROTTLE
-
4F2X-U1552-00-00 HANDLEHANDLE
-
5F2S-U155D-02-00 GRIP, HANDLEGRIP, HANDLE
-
690110-06382-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790201-068G0-00 WASHER, PLATEWASHER, PLATE
-
8F2S-U1516-00-00 BOLTBOLT
-
991380-04030-00 BOLTBOLT
-
10F3J-68310-00-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
11EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
126CS-6725F-00-00 ...BOLT, THROTTLE...BOLT, THROTTLE
-
13FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
14FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1597780-30610-00 ...SCREW, TAPPING...SCREW, TAPPING
