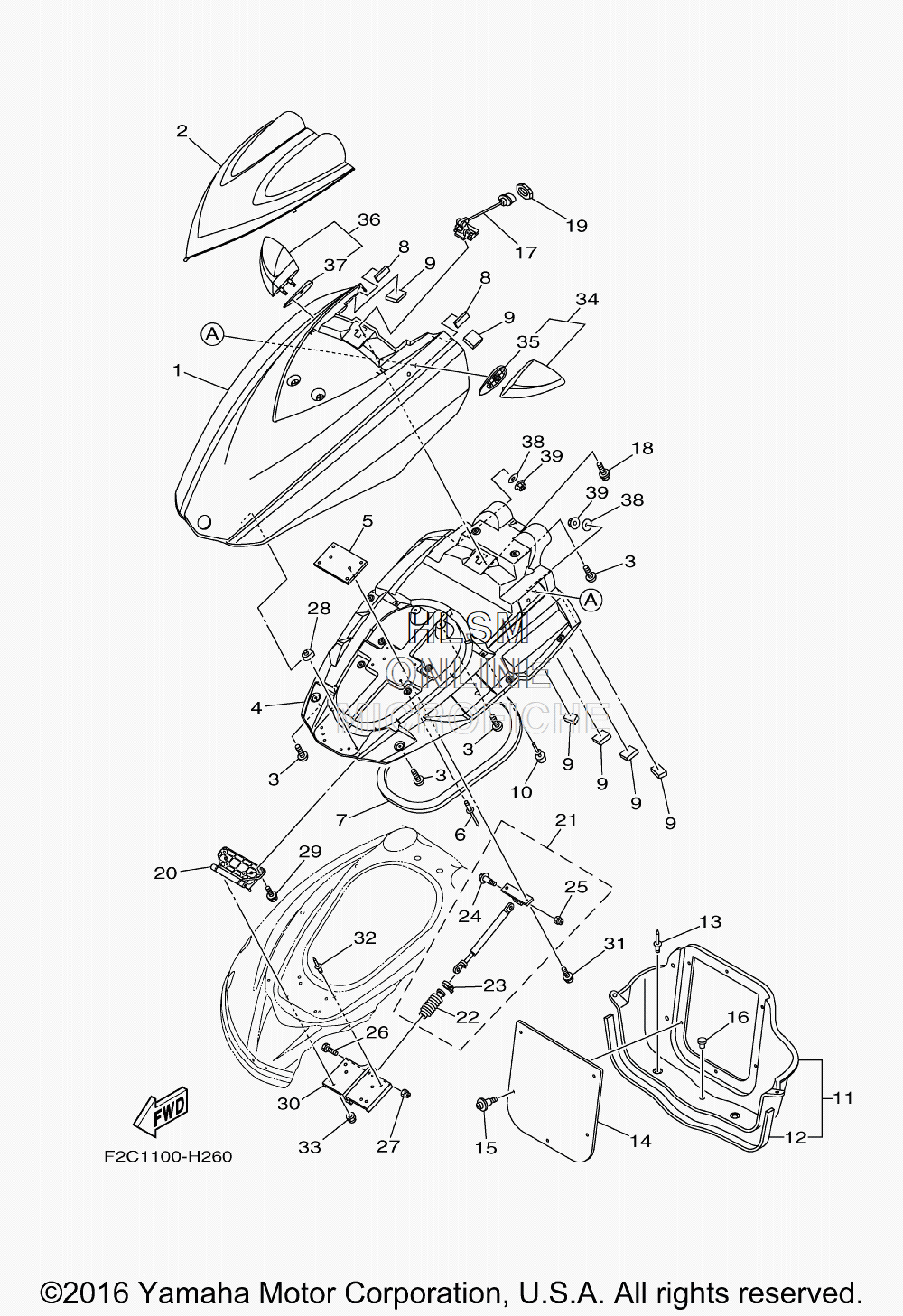

FRONT STORAGE W/ COVER для Yamaha FZS - 2015 года выпуска
-
№АртикулНазвание
-
1F2C-U517B-02-P8 LID, ENGINE ROOM (PURW - PURE WHITE)LID, ENGINE ROOM (PURW - PURE WHITE)
-
1F2C-U517B-02-PA LID, ENGINE ROOM (BLACK FOR VPBM6 - BLUE METALLIC)LID, ENGINE ROOM (BLACK FOR VPBM6 - BLUE METALLIC)
-
2F2C-U515N-20-00 VISORVISOR
-
390149-05903-00 SCREWSCREW
-
4F2C-U213B-01-00 COVER,VENTILATOR 1COVER,VENTILATOR 1
-
5F1W-U5148-00-00 PLATE, HATCHPLATE, HATCH
-
690267-48807-00 RIVET, BLINDRIVET, BLIND
-
7F1K-U2663-01-00 PACKING 1PACKING 1
-
8F1K-U266B-00-00 PACKING 3PACKING 3
-
9F2C-U1743-00-00 PACKINGPACKING
-
10F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
11F2C-U475B-00-00 LOCKER,BOWLOCKER,BOW
-
12F2C-U266C-00-00 ...PACKING 4...PACKING 4
-
13F3J-U516R-00-00 RIVET 1RIVET 1
-
14F1W-U475F-01-00 PLATE, LOKER BOWPLATE, LOKER BOW
-
1590269-08801-00 RIVETRIVET
-
1690605-502U1-00 PLUG, BLINDPLUG, BLIND
-
17F2C-U517C-01-00 LOCK, LIDLOCK, LID
-
1890119-059U4-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19F2C-U518D-00-00 PACKINGPACKING
-
20F2C-U517D-00-00 HINGE, LIDHINGE, LID
-
21F2C-6514S-00-00 DAMPER ASSYDAMPER ASSY
-
22F1W-6514T-00-00 ...COVER, DAMPER...COVER, DAMPER
-
231UA-82591-00-00 ...BAND...BAND
-
2490109-06218-00 ...BOLT...BOLT
-
2595720-06300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2690109-06218-00 BOLTBOLT
-
279572R-06300-00 NUT, NYLONNUT, NYLON
-
2890183-06902-00 NUT, SPRINGNUT, SPRING
-
2990119-06895-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F1W-U518E-02-00 PLATE, HINGE LIDPLATE, HINGE LID
-
3190119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290267-48020-00 RIVET, BLINDRIVET, BLIND
-
339572R-06300-00 NUT, NYLONNUT, NYLON
-
34F2C-U596B-00-00 MIRROR LHMIRROR LH
-
35F2C-U471E-00-00 ...SPACER 1...SPACER 1
-
36F2C-U596C-00-00 MIRROR RHMIRROR RH
-
37F2C-U471F-00-00 ...SPACER 2...SPACER 2
-
389299R-08200-00 WASHERWASHER
-
399572R-08300-00 NUT, FLANGENUT, FLANGE
Все узлы модели:
- AIR CLEANER ASSY.
- BILGE PUMP
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD ASSY
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- • FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- SUPER CHARGER ASSY
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
