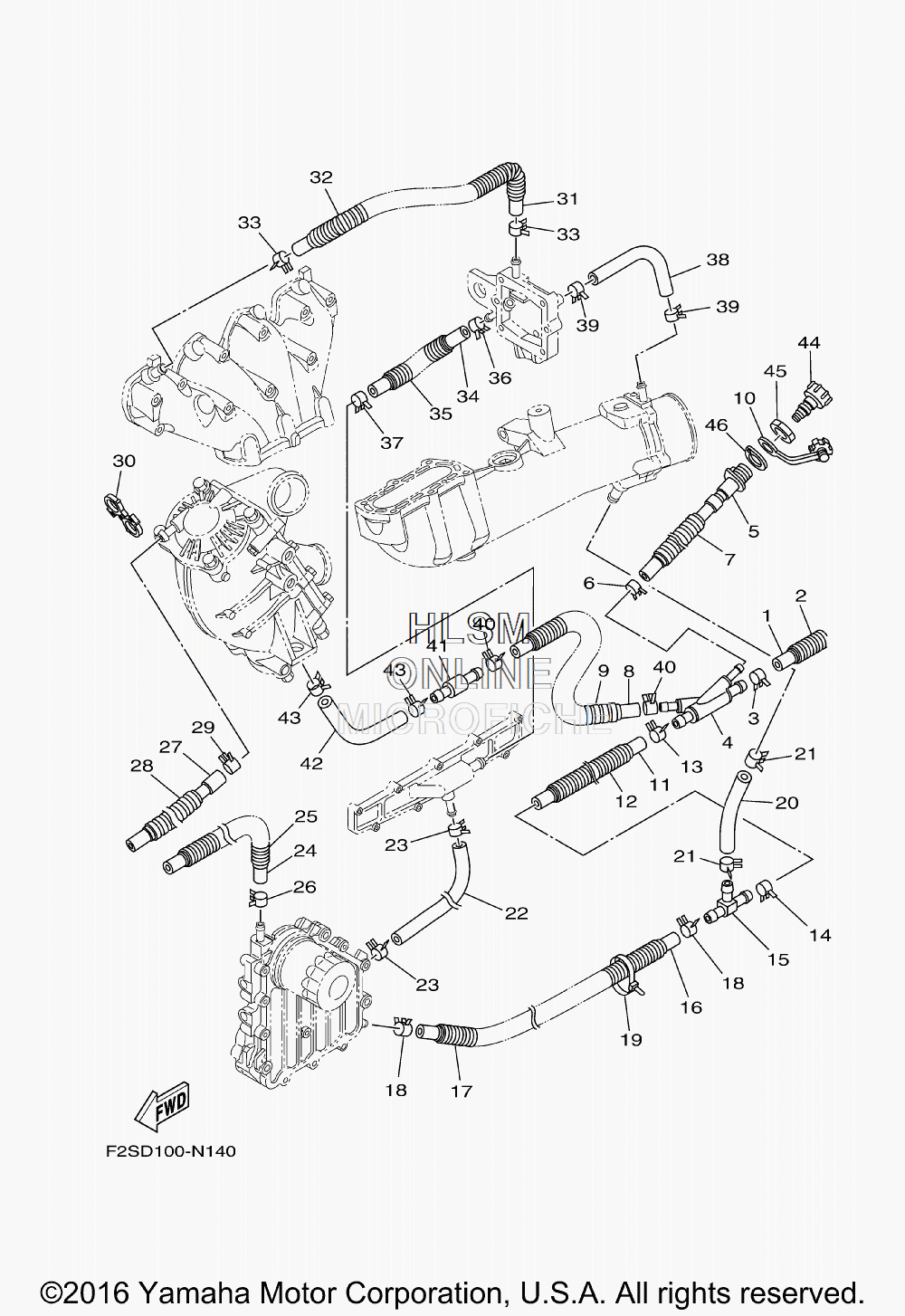

EXHAUST - HOSES для Yamaha FX SHO - 2015 года выпуска`
-
№АртикулНазвание
-
190445-21806-00 HOSE (L250)HOSE (L250)
-
290447-22801-00 TUBE (L200)TUBE (L200)
-
390467-200A3-00 CLIPCLIP
-
46CS-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
56CS-12580-00-00 JOINT ASSYJOINT ASSY
-
690467-150A5-00 CLIPCLIP
-
790447-19801-00 TUBE (L485)TUBE (L485)
-
890445-21807-00 HOSE (L970)HOSE (L970)
-
990447-22802-00 TUBE (L850)TUBE (L850)
-
10682-84385-01-00 CAP,1CAP,1
-
116S5-1243E-01-00 HOSE 2HOSE 2
-
1290447-22011-00 TUBE (L170)TUBE (L170)
-
1390467-200A3-00 CLIPCLIP
-
1490467-200A3-00 CLIPCLIP
-
156BH-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
1690445-18012-00 HOSE (L400)HOSE (L400)
-
1790447-19005-00 TUBE (L260)TUBE (L260)
-
1890467-160A0-00 CLIPCLIP
-
1990464-35132-00 CLAMPCLAMP
-
206S5-12589-01-00 HOSE 6HOSE 6
-
2190467-200A3-00 CLIPCLIP
-
226BH-1244H-00-00 HOSE 5HOSE 5
-
2390467-150A1-00 CLIPCLIP
-
246CS-12588-00-00 HOSE 5HOSE 5
-
2590447-19018-00 TUBE (L760)TUBE (L760)
-
2690467-160A0-00 CLIPCLIP
-
276CS-12552-00-00 HOSE 8HOSE 8
-
2890447-19016-00 TUBE (L480)TUBE (L480)
-
2990467-170A4-00 CLIPCLIP
-
3090464-24003-00 CLAMPCLAMP
-
316S5-12577-00-00 HOSE 2HOSE 2
-
3290446-27M55-00 TUBE (L400)TUBE (L400)
-
3390467-160A0-00 CLIPCLIP
-
346S5-12579-00-00 HOSE 4HOSE 4
-
3590447-19011-00 TUBE (L150)TUBE (L150)
-
3690467-160A0-00 CLIPCLIP
-
3790467-170A5-00 CLIPCLIP
-
3890445-16013-00 HOSE (L220)HOSE (L220)
-
3990467-160A0-00 CLIPCLIP
-
4090467-200A3-00 CLIPCLIP
-
416S5-12594-00-00 JOINT, HOSE 4JOINT, HOSE 4
-
426S5-12576-01-00 HOSE 1HOSE 1
-
4390467-200A3-00 CLIPCLIP
-
4467X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
45EU0-61652-00-00 NUTNUT
-
46F2S-U7525-00-00 PACKINGPACKING
