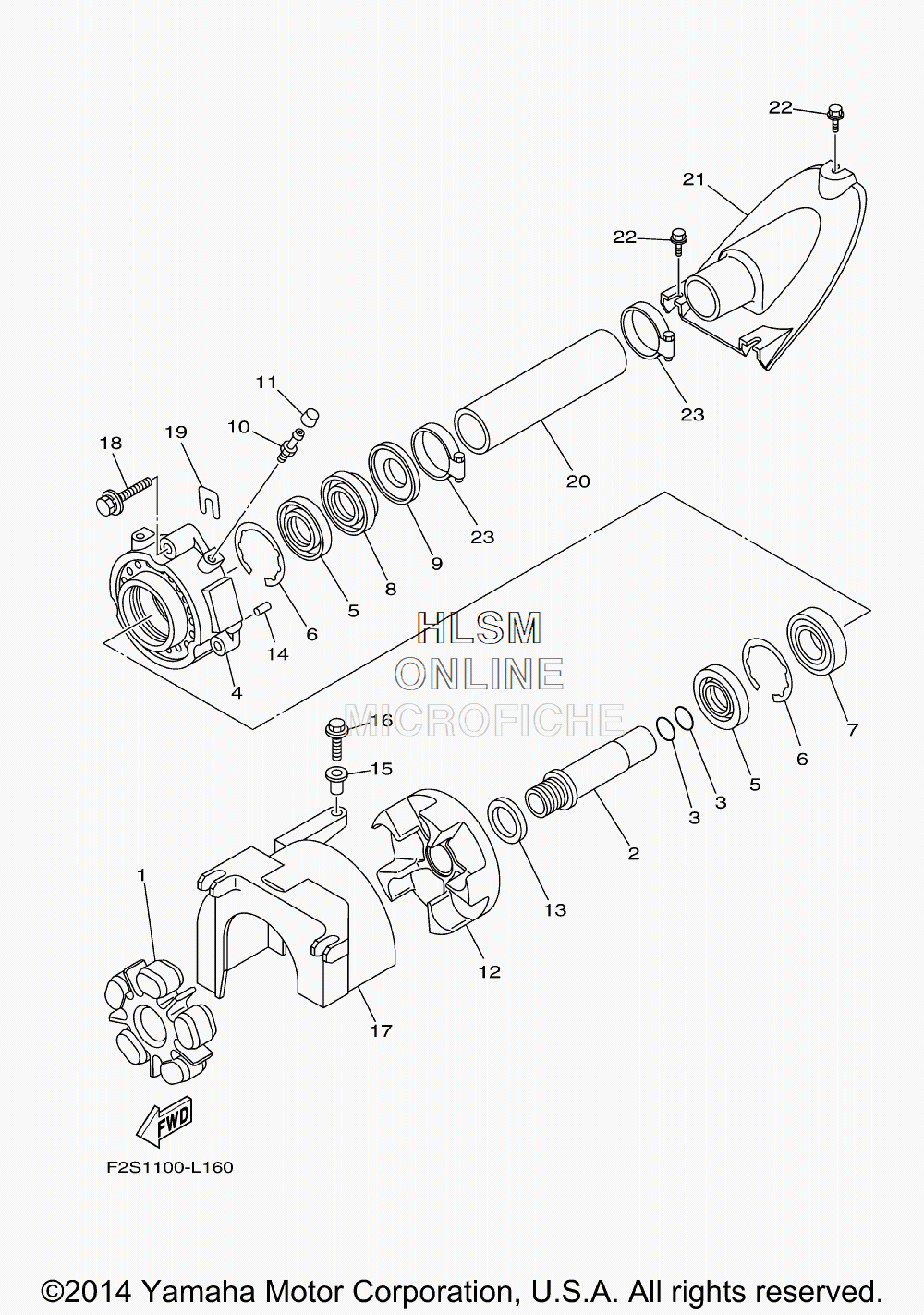

PROPULSION SYSTEM - INTERNAL для Yamaha FX CRUSIER SHO - 2015 года выпуска`
-
№АртикулНазвание
-
16BH-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
26S5-51323-00-00 SHAFT, COUPLERSHAFT, COUPLER
-
393210-22MF1-00 O-RINGO-RING
-
46S5-45332-00-94 HOUSING, BEARINGHOUSING, BEARING
-
593102-29008-00 OIL SEALOIL SEAL
-
693450-66156-00 CIRCLIPCIRCLIP
-
793306-20655-00 BEARINGBEARING
-
893102-29009-00 OIL SEALOIL SEAL
-
96ET-45613-00-00 WASHER, THRUSTWASHER, THRUST
-
1093700-06M03-00 NIPPLE, GREASENIPPLE, GREASE
-
11663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
126S5-45593-00-94 FLANGE, COUPLING 1FLANGE, COUPLING 1
-
136ET-E2289-00-00 WASHERWASHER
-
1493606-12019-00 PIN, DOWELPIN, DOWEL
-
1590387-06289-00 COLLARCOLLAR
-
1690119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
176S5-R1381-01-00 COVERCOVER
-
1890119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19GD0-U7249-00-05 SHIM (T=0.5)SHIM (T=0.5)
-
20F2S-U883B-00-00 PIPE, 1PIPE, 1
-
21F2S-U883E-00-00 JOINT, PIPEJOINT, PIPE
-
2290109-06832-00 BOLTBOLT
-
2390601-152U3-00 BAND, HOSE 52BAND, HOSE 52
