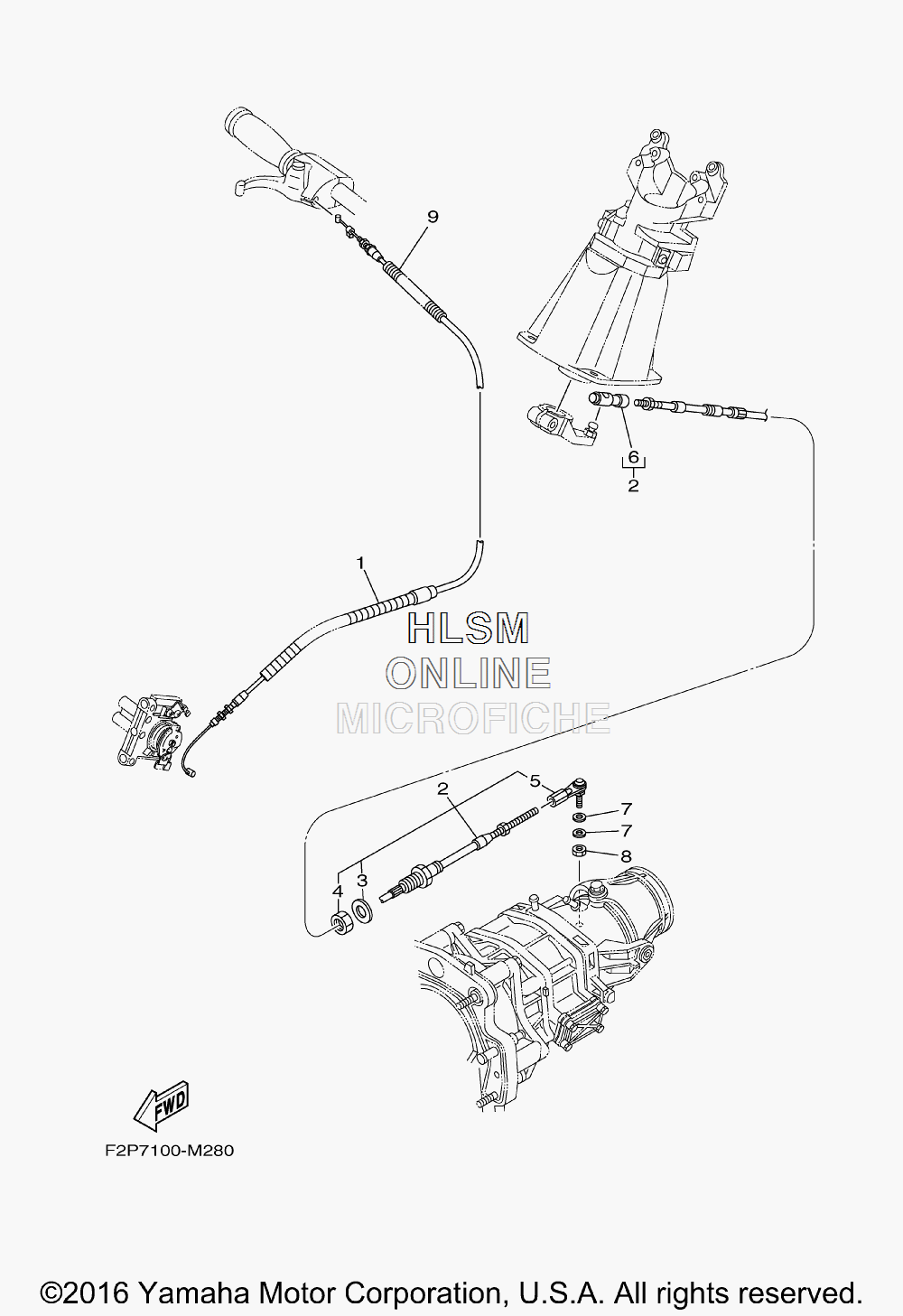

CONTROL CABLES для Yamaha VX SPORT - 2014 года выпуска`
-
№АртикулНазвание
-
16BU-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
2F2N-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
3F1B-61438-00-00 ...PACKING C...PACKING C
-
4F1B-6151S-00-00 ...NUT...NUT
-
5F1B-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
6F2N-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
790201-06906-00 WASHER, PLATEWASHER, PLATE
-
89538R-06700-00 NUTNUT
-
990447-06803-00 TUBETUBE
