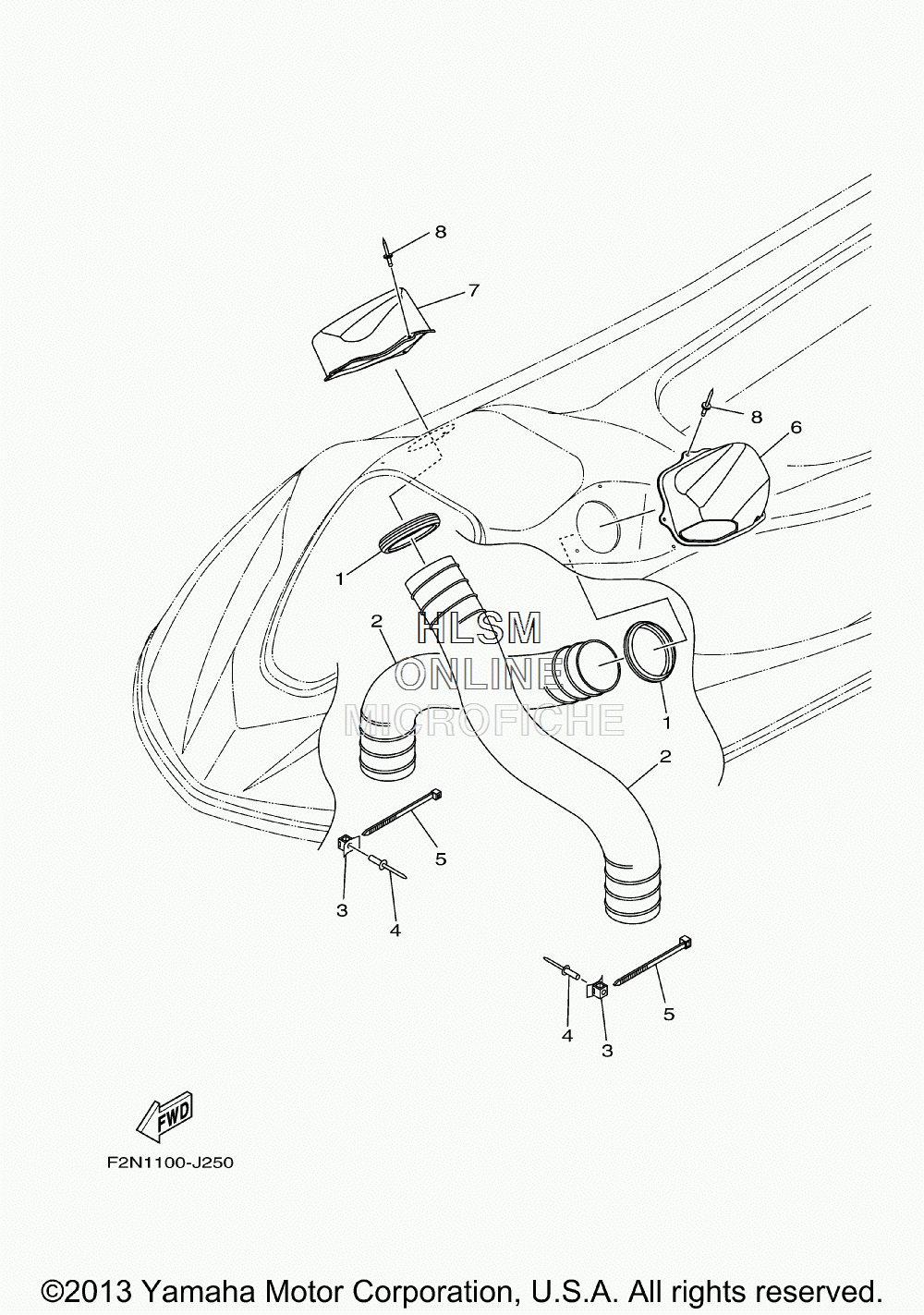

VENTILATION для Yamaha VX DELUXE - 2014 года выпуска`
-
№АртикулНазвание
-
1F2N-U2127-00-00 BASE, AIR INTAKEBASE, AIR INTAKE
-
2F2N-U213G-01-00 HOSE, VENTILATOR 2HOSE, VENTILATOR 2
-
3F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
590464-99804-00 CLAMPCLAMP
-
6F2N-U2187-00-00 BOX, INDUCTION 1BOX, INDUCTION 1
-
7F2N-U2188-00-00 BOX, INDUCTION 2BOX, INDUCTION 2
-
890267-48806-00 RIVET, BLINDRIVET, BLIND
