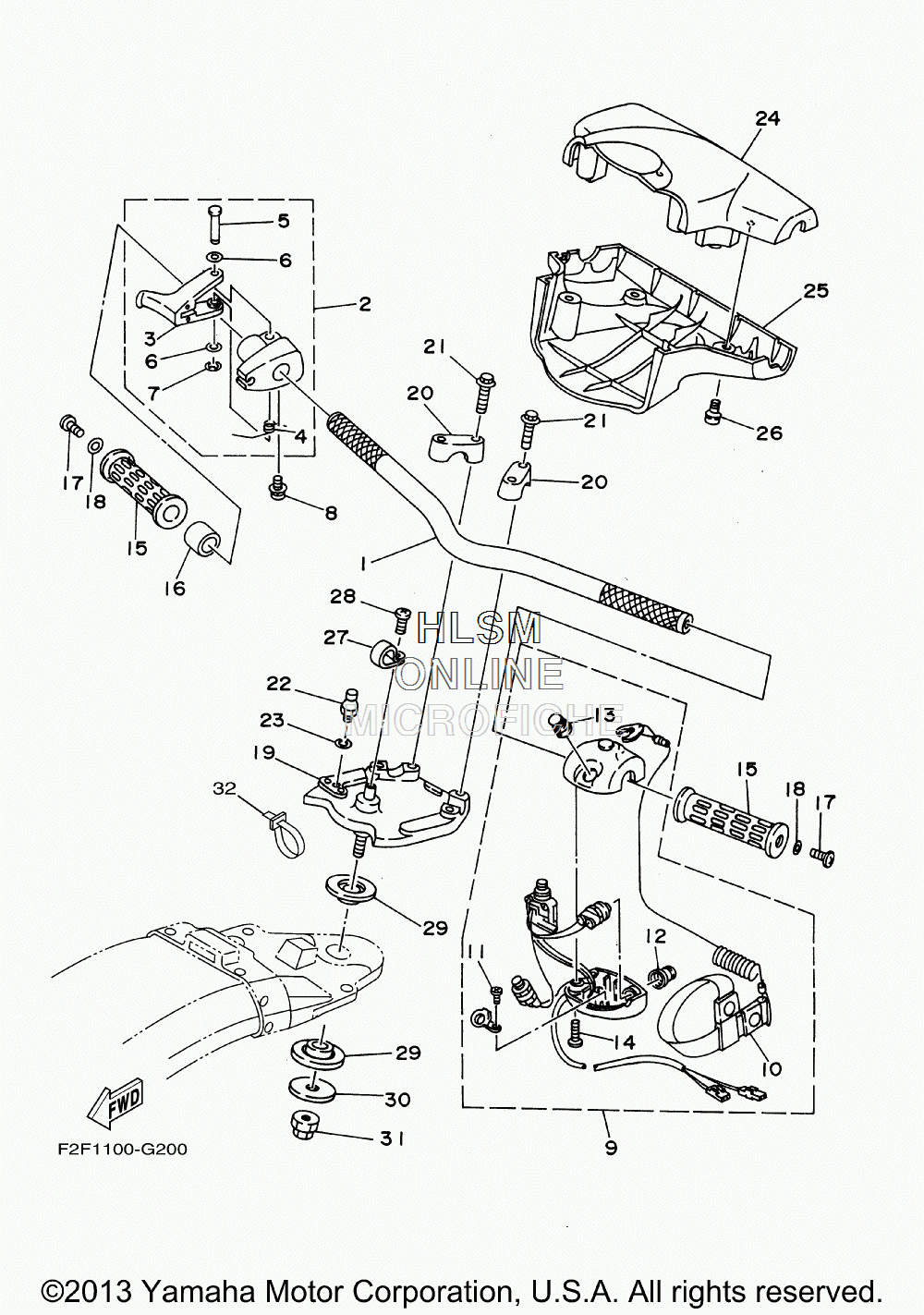

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha SUPER JET - 2014 года выпуска`
-
№АртикулНазвание
-
1F2F-61552-00-00 HANDLEHANDLE
-
2EW2-67250-02-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
3EW2-67255-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
4EW2-67256-00-00 ...SPRING...SPRING
-
5EW2-67257-01-00 ...SHAFT...SHAFT
-
6EW2-67258-01-00 ...WASHER...WASHER
-
7EW2-67259-01-00 ...E-RING...E-RING
-
890159-05900-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
9EW2-68310-04-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
10EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1197880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
12FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
13FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1497880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15EW2-61553-00-00 GRIP, HANDLE 1GRIP, HANDLE 1
-
1690560-22281-00 SPACERSPACER
-
1790149-05959-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
1890201-05928-00 WASHER, PLATEWASHER, PLATE
-
19F2F-61541-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
20EU0-23814-02-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
2190105-08902-00 BOLT WASHER BASEDBOLT WASHER BASED
-
22EU0-61461-02-00 .STUD, JOINT BALL.STUD, JOINT BALL
-
2392990-06100-00 WASHER, SPRINGWASHER, SPRING
-
24FX1-6143D-20-00 PAD, STEERING 1 (BLACK)PAD, STEERING 1 (BLACK)
-
25FX1-6143E-20-00 PAD, STEERING 2 (BLACK)PAD, STEERING 2 (BLACK)
-
2690149-05937-00 SCREWSCREW
-
2790600-91728-00 CLIP, NYLON 17CLIP, NYLON 17
-
2898980-04010-00 SCREW, BINDSCREW, BIND
-
29EW2-61417-00-00 BEARING, COLUMNBEARING, COLUMN
-
30EW2-61419-00-00 WASHER, STEERINGWASHER, STEERING
-
3190179-12933-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
3290465-13M11-00 CLAMPCLAMP
