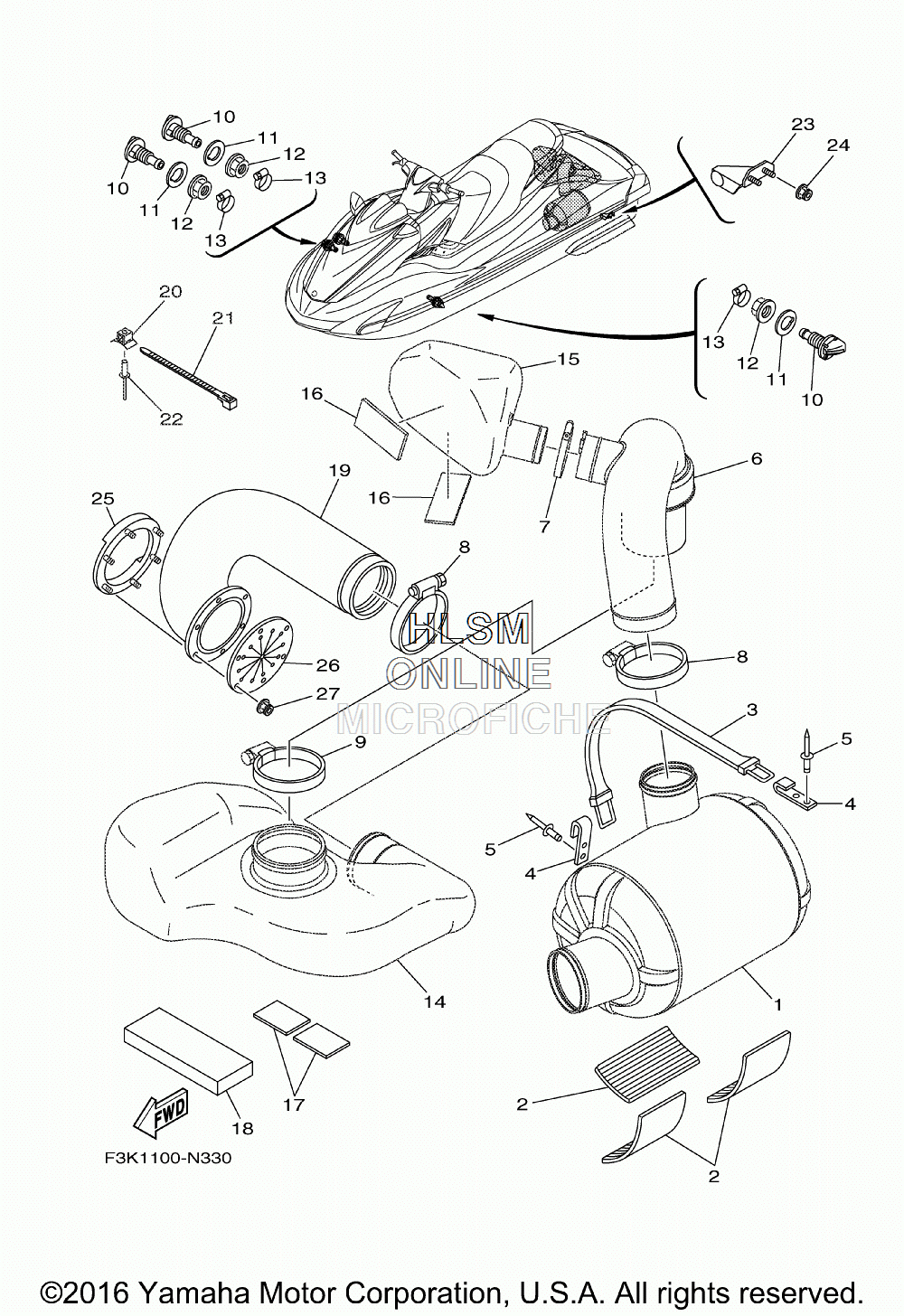

EXHAUST - WATER BOX для Yamaha FZS - 2014 года выпуска`
-
№АртикулНазвание
-
1F1W-U7550-02-00 WATER LOCK COMP.WATER LOCK COMP.
-
2F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
3EW2-67821-00-00 BAND, FUEL TANKBAND, FUEL TANK
-
4GA7-65772-00-00 HOOK AHOOK A
-
590267-489U1-00 RIVET,BLINDRIVET,BLIND
-
6F1W-U7555-01-00 HOSE, EXHAUSTHOSE, EXHAUST
-
790601-170UG-00 BAND, HOSE 70BAND, HOSE 70
-
890450-99801-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
990450-99804-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
10F2C-U753B-01-00 PILOT, WATERPILOT, WATER
-
11F2C-U7564-00-00 GASKETGASKET
-
12F2C-U2733-00-00 NUTNUT
-
1390467-17802-00 CLIPCLIP
-
14F1W-U4261-00-00 TANK, WATERTANK, WATER
-
15F1W-U753C-01-00 RESONATOR 1RESONATOR 1
-
16F1K-U759C-00-00 MAT 2MAT 2
-
17F1W-U759C-01-00 MAT 2MAT 2
-
18F1W-U8831-01-00 BED,TANK 1BED,TANK 1
-
19F1B-U758D-03-00 HOSE,EXHAUST 3HOSE,EXHAUST 3
-
20F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2190464-32801-00 CLAMPCLAMP
-
2290267-48802-00 RIVET, BLINDRIVET, BLIND
-
23F2C-U755G-00-00 BRKT., WATER LOCKBRKT., WATER LOCK
-
24F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
25F1S-U757B-01-00 PLATEPLATE
-
26F1B-U751G-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
27F2N-U142L-00-00 NUT, LOCKNUT, LOCK
